Description

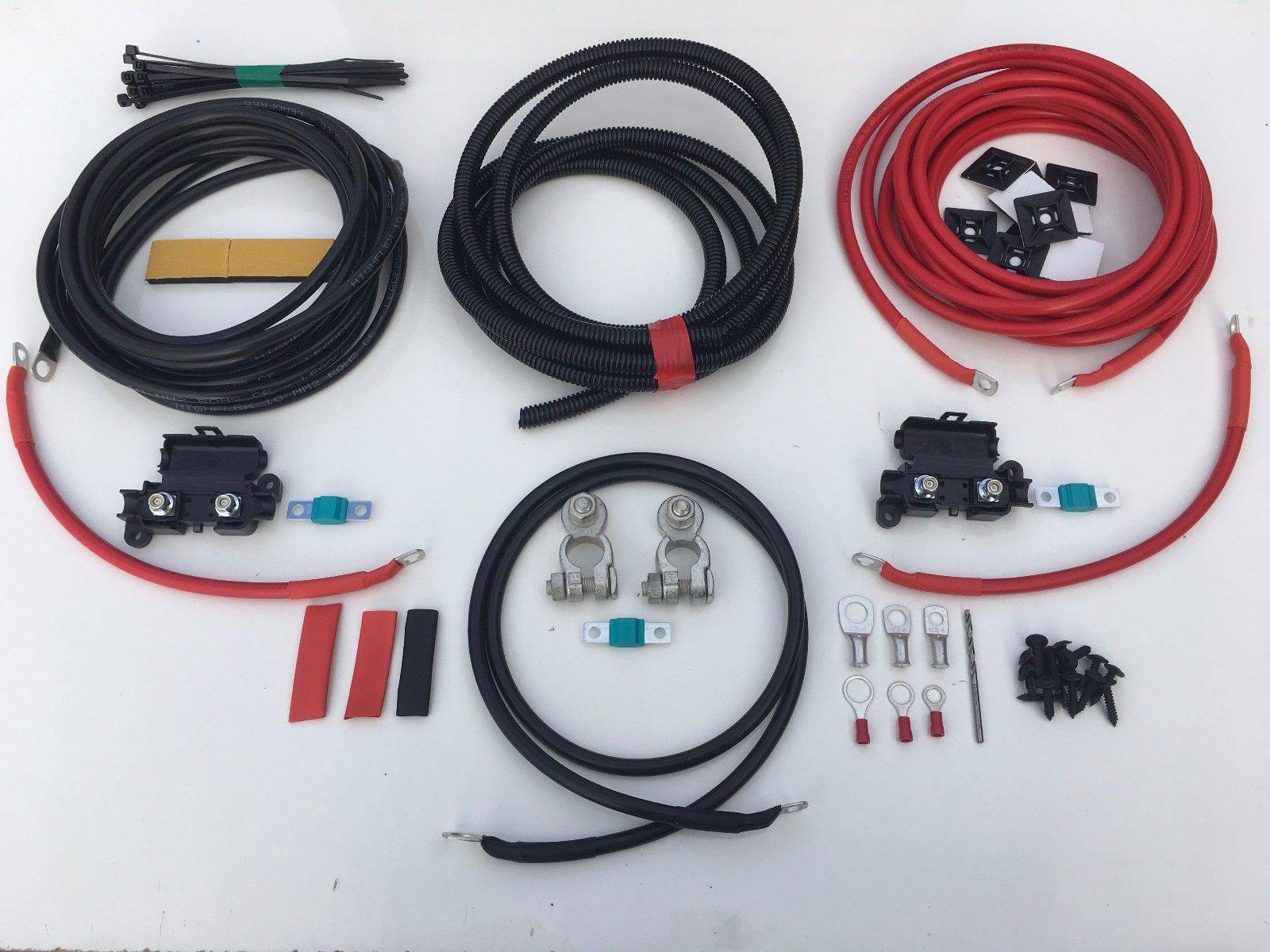

Wiring kit for simple installation for 30amp Orion TR Smart 30a isolated/non isolated battery to battery charger

Supplied with pre crimped leads made to measure

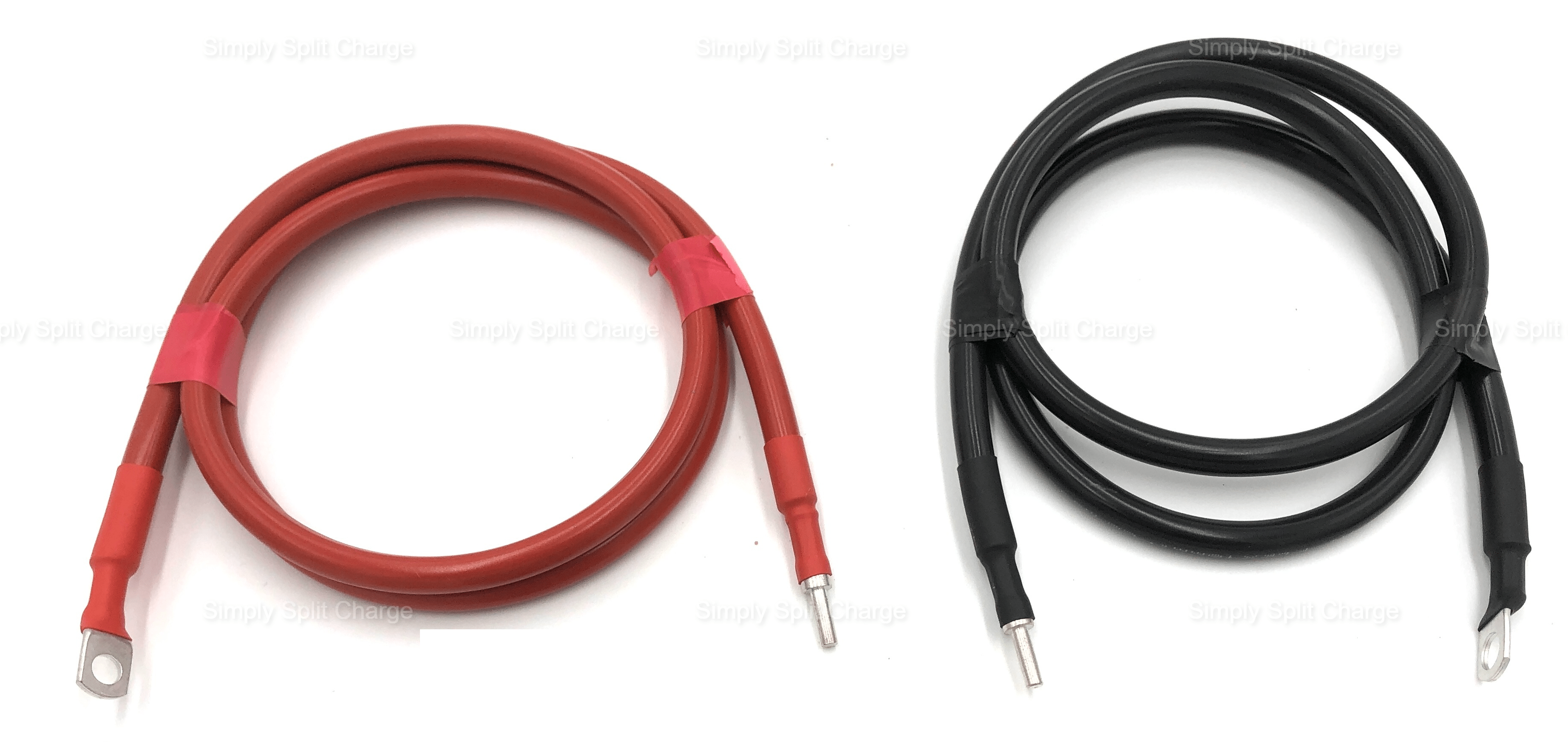

Both the A + B red and black leads in the picture can be selected from the drop dowm menus above for connecting to and from the charger to suit your instalation

1 x 250mm 16mm² 110amp Red lead with M8-M6 terminals for starter battery to fuse holder
1 x 500mm-7m Red 16mm² 110amp lead with M6 to Pin terminals (A Lead)
1 x 500mm-7m Black 16mm² 110amp lead with M6 to Pin terminals (A Lead)
1 x 500mm-2m Red 16mm² 10amp earth lead with Pin to M6 terminals (B Lead)
1 x 500mm-2m Black 16mm² 10amp earth lead with Pin to M8 terminals (B Lead)
1 x 250mm Red 16mm² 110amp Red lead with M6 to M8 terminals for fuse holder to leisure battery
1 x 1000mm 16mm² 110amp Black lead with M8 to M10 terminals for your leisure battery earth if required
2 x strip link fuse holders with 60amp midi fuses + a spare
Positive and negative 8mm post type battery terminal
Spare copper tube terminals + heat shrink for any modifications
15 x cable ties + 10 x adhesive cable tie bases
2 x sticky pads
15 x screws + drill bit
1-8 mtrs split conduit to protect cables
