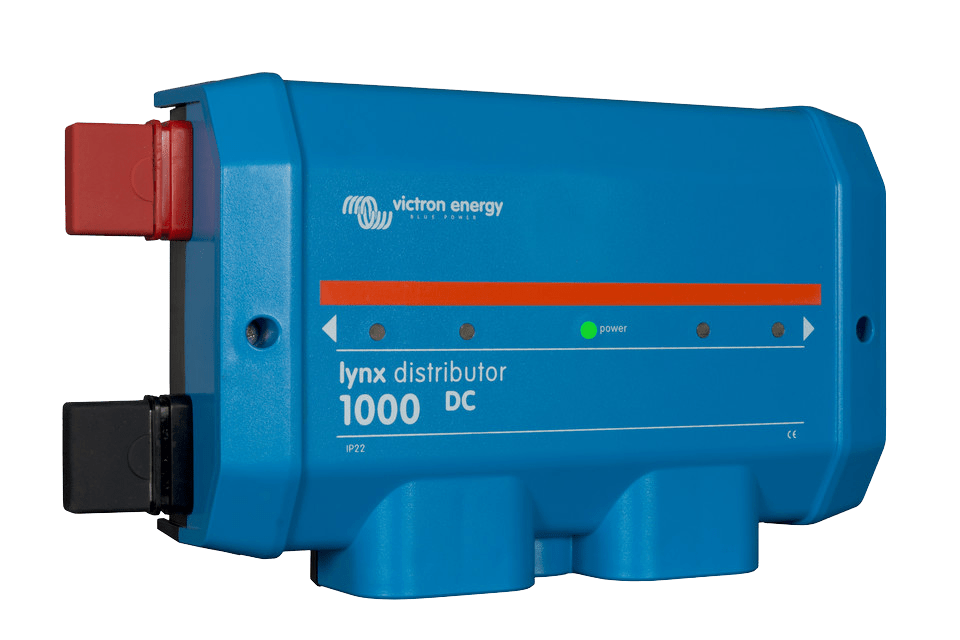

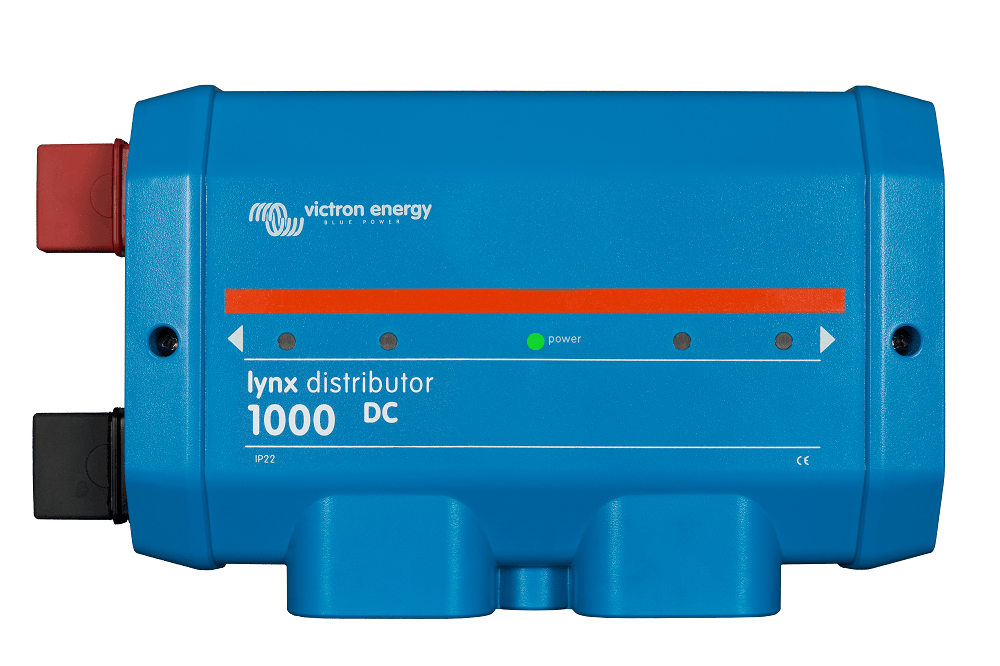

Victron Energy Lynx Distributor – LYN060102000

Sale price£188.00 GBP
In stock
Quantity:

Product Details

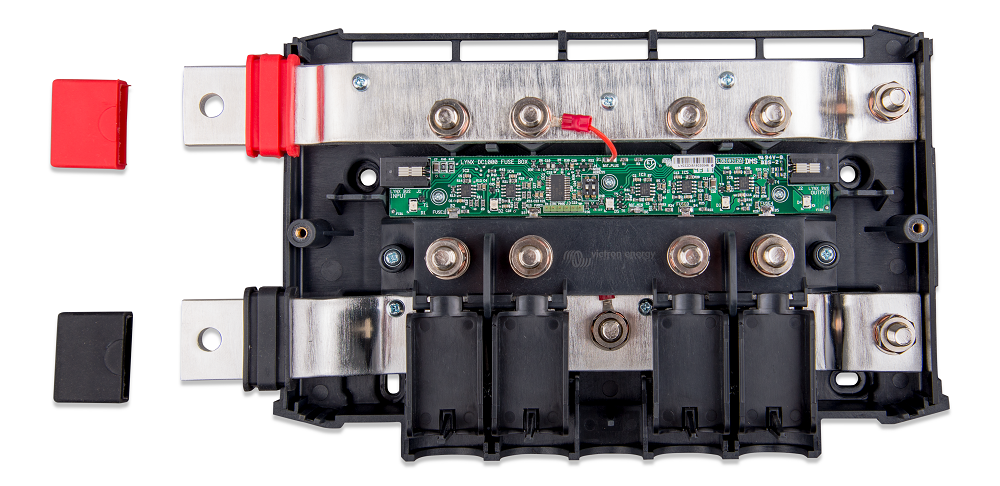

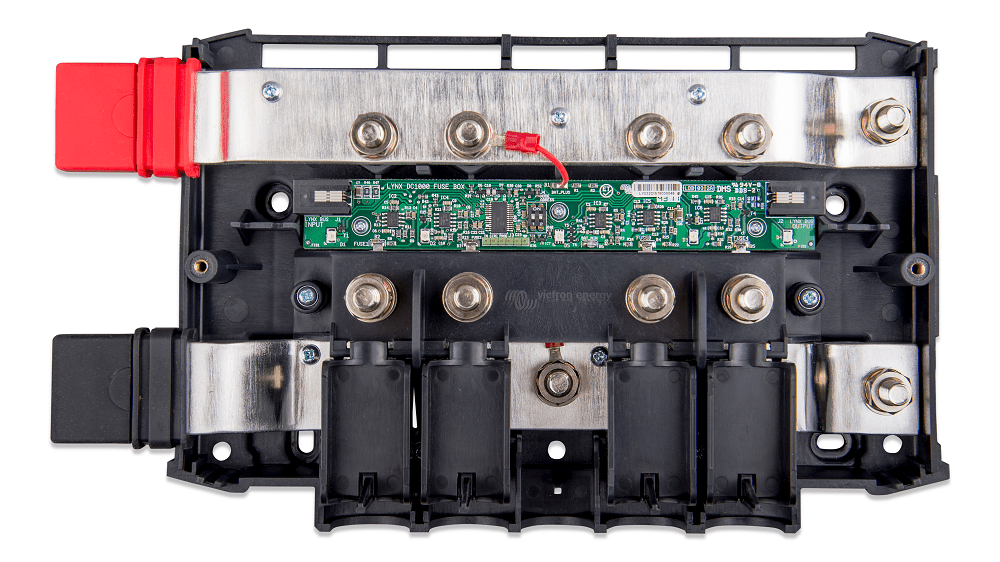

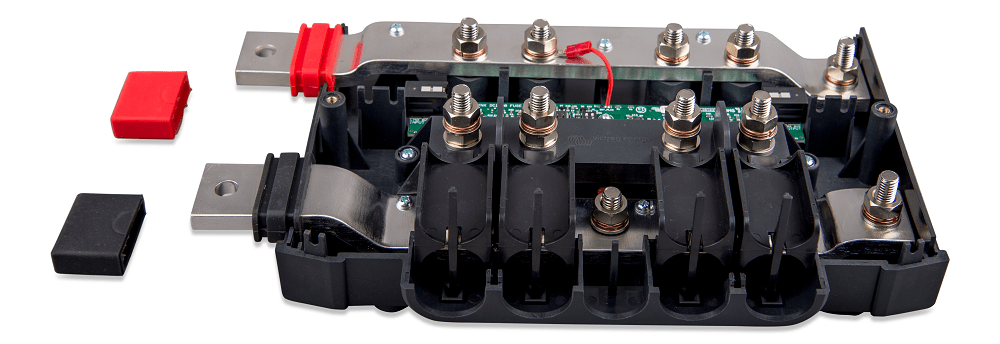

The Lynx Distributor contains a positive and a negative busbar.

The positive busbar has four fuse protected connections with fusemonitoring.

The negative busbar has four connections and a ground connection.

It is part of the Lynx Distribution system.

The Lynx Distributor has a power LED and four fuse status indication LEDs.

The Lynx Distributor is designed to hold MEGA fuses. These need to be purchased separately.


Voltage range 9 - 60Vdc

Supported system voltages 12, 24 or 48V

Reverse polarity protection Yes (1)

Current rating 1000A

Power consumption (2) Maximum 100mA (with all LEDs illuminated)

Busbar M8

Fuses M8



Power(3) and data(4) 40 cm RJ10 cable (included)

Enclosure material ABS

Enclosure dimensions (hxlxw) 290 x 170 x 80 mm

Unit weight 2.2 kg

Busbar material Tinned copper



Busbar material (hxw) 8 x 30mm

Operating temperature range -40°C to +60°

Storage temperature range -40°C to +60°

Humidity Max. 95% (non-condensing)



Protection class IP22

Warranty 5 Years

Part Number LYN060102000
