Victron Energy GX Touch 50 BPP900455050
Choose options
Product Details

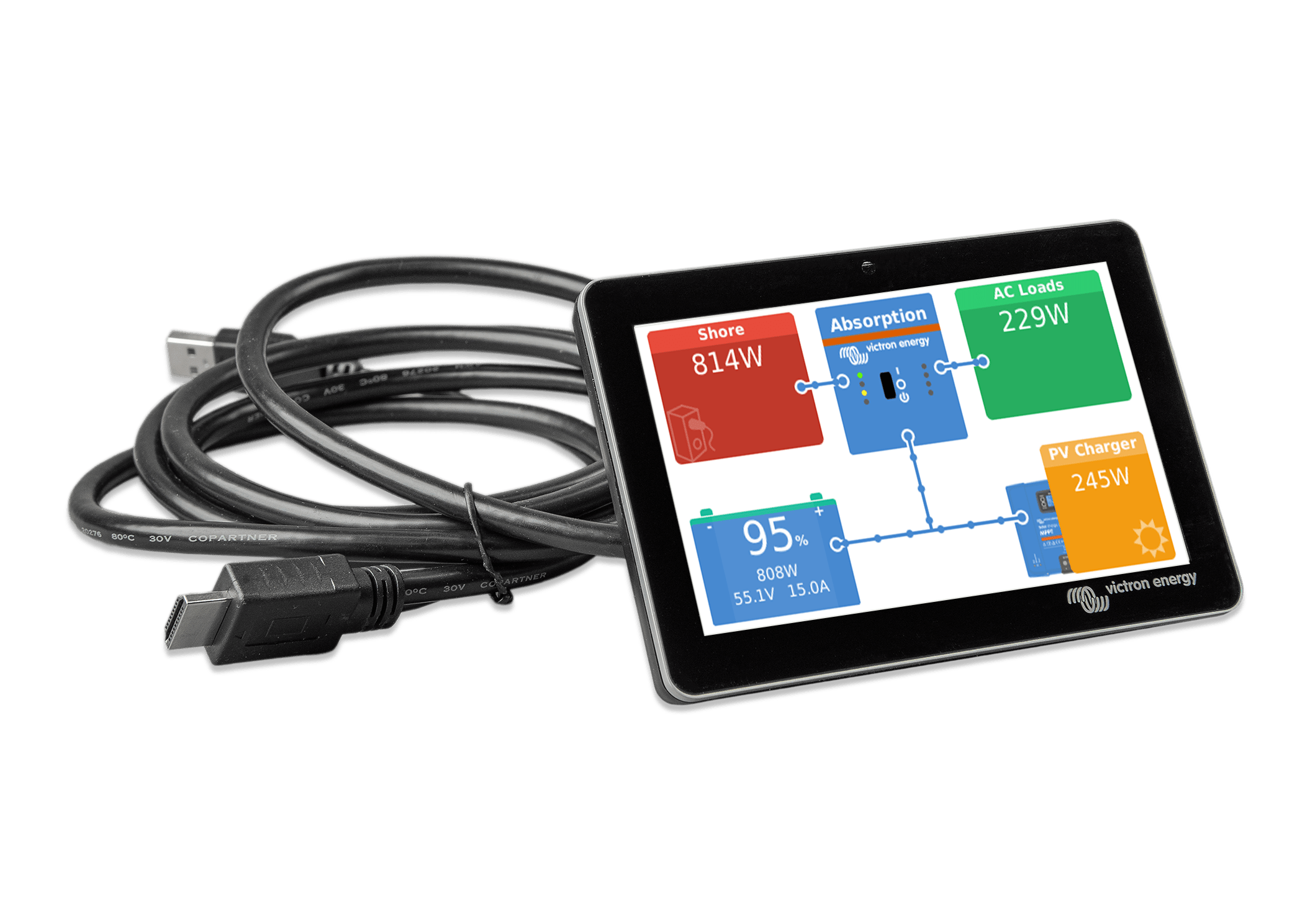

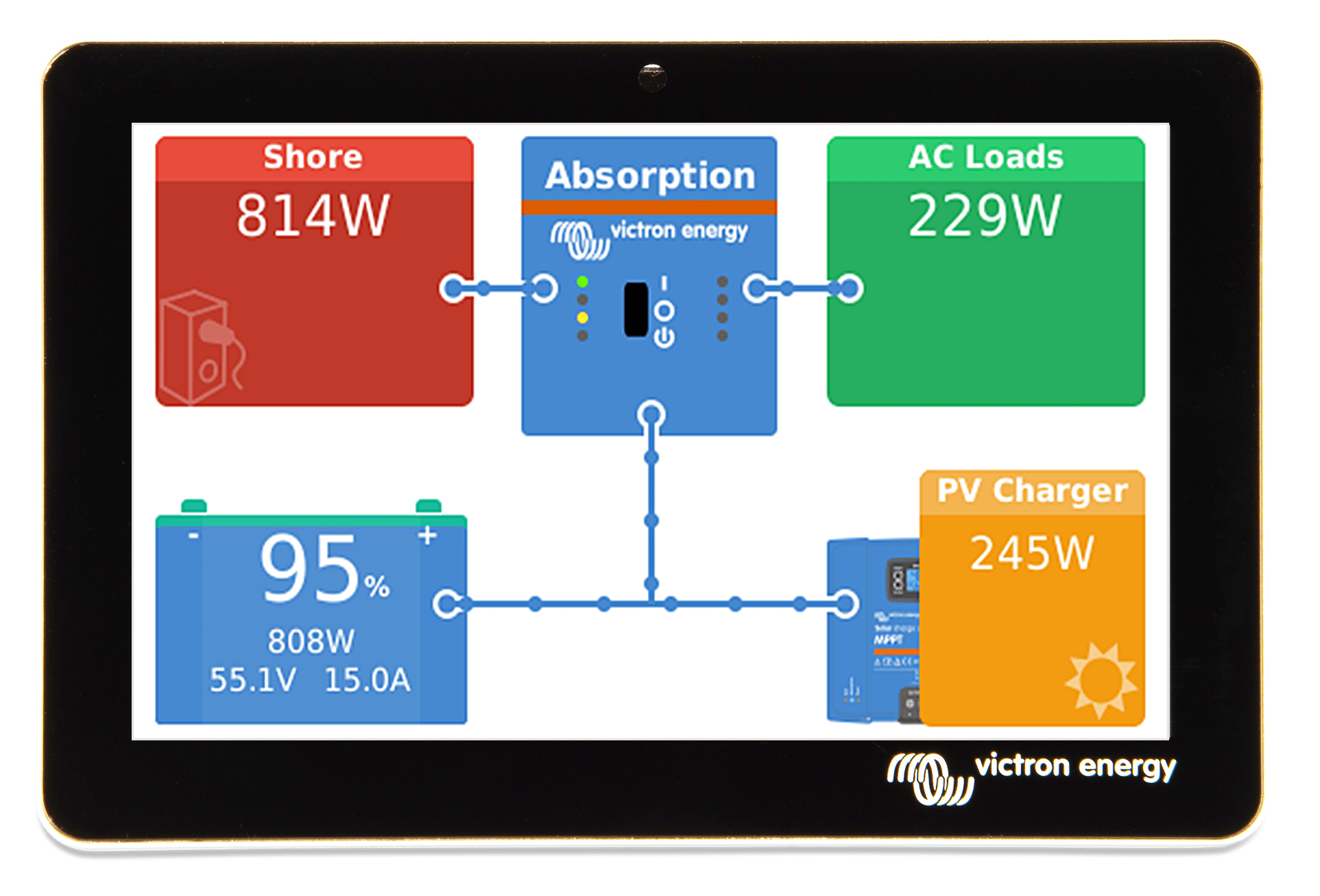

The GX Touch 50 is the display accessory for the Cerbo GX. The five inch a touch screen display gives an instant overview of your system and allows to adjust settings in the blink of an eye. Simply connected to the Cerbo GX with one cable, its super slim waterproof design, top-mountable setup and its simple installation bring a lot of flexibility when creating a crisp and clean dashboard.
Simply mounted

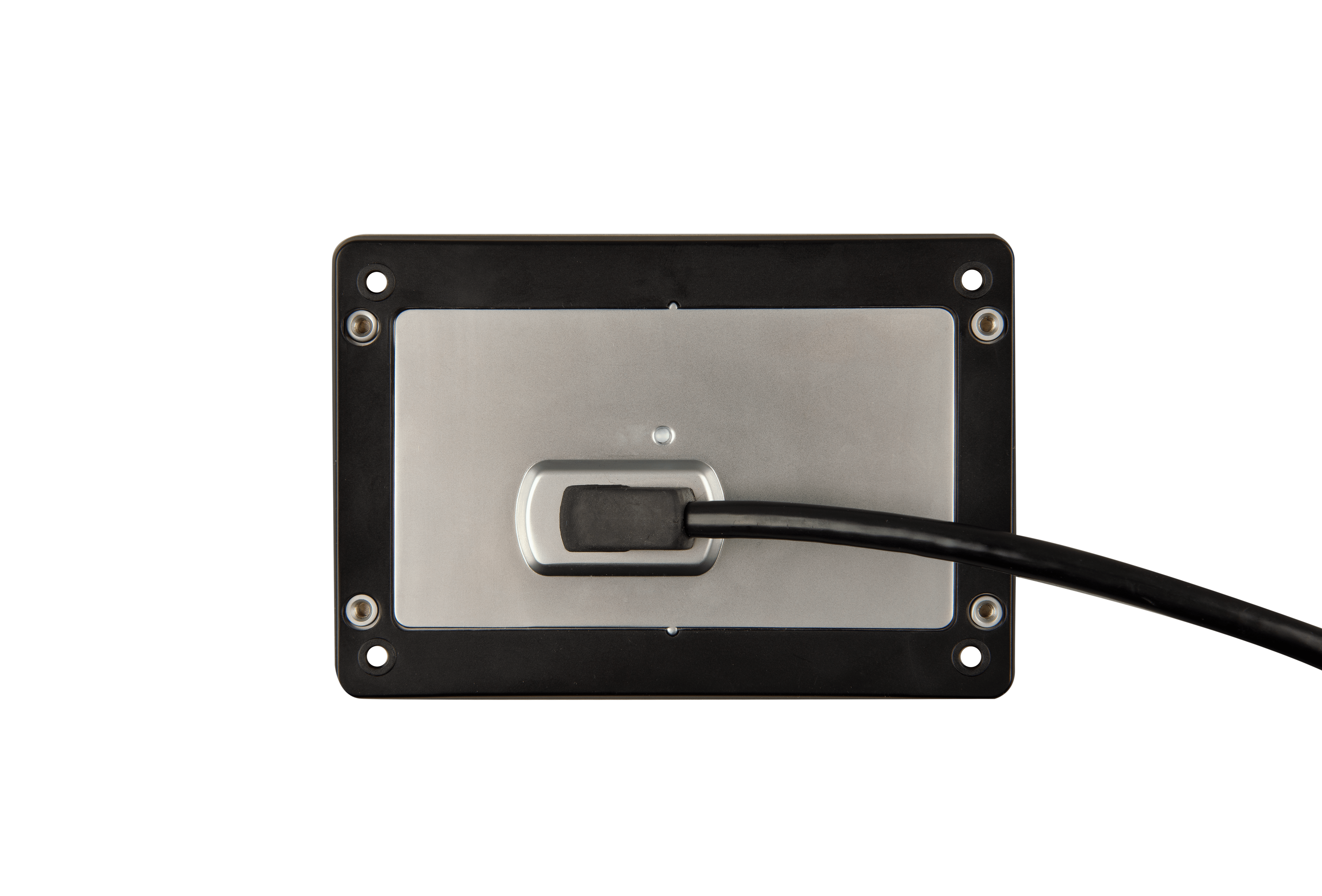

The GX Touch is optimised to more than meet the standards of installer professionals. The screen is simply bolted on top of a dashboard, eliminating the need to create perfect cut-outs (like with the ColorControl GX) and is connected through just one cable, taking away the hassle of having to bring many wires to a dashboard.

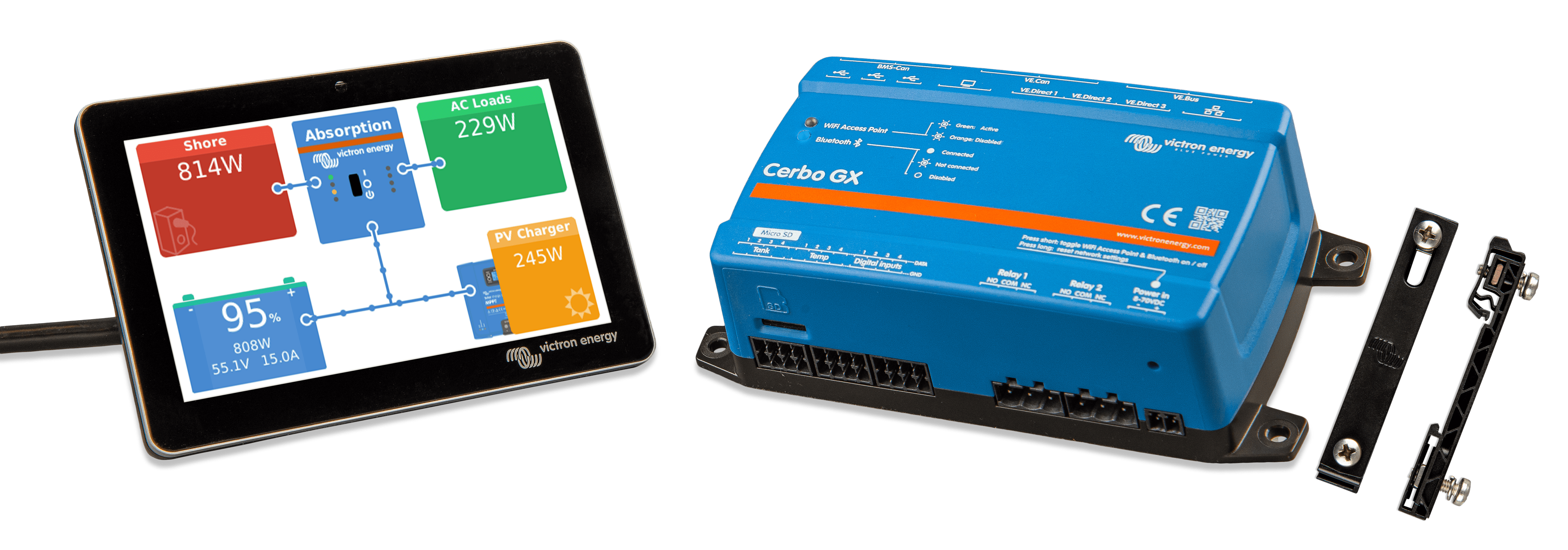

The GX Touch 50 is a companion to the Cerbo GX, the all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the GX Touch 50, a MFD or our VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way
Cerbo GX
Supply voltage 8 – 70V DC
Mounting Wall or DIN rail (35mm)(2)
Communication ports
VE.Direct ports (always isolated) 3 (3)
VE.Bus (always isolated) 2 paralleled RJ45 sockets
VE.Can yes - non isolated
Other
Outer dimensions (h x w x d) 78 x 154 x 48 mm
Operating temperature range -20 to +50°C
Standards
Safety tbd
EMC tbd
Automotive tbd
GX Touch 50
Mounting With included mounting accessories
Display Resolution
GX Touch 50: 800 x 480
Other
Outer dimensions (h x w x d)
GX Touch 50: 87 x 128 x 12.4 mm
Cable length 2 meter
Part Number BPP900455050
Please note the CERBO GX is not supplied with this item
