Victron Energy Blue Solar PWM LCD & USB 12/24V 10A SCC010010050

Sale price£25.27 GBP
SKU: SCC010010050
In stock
Quantity:

Product Details

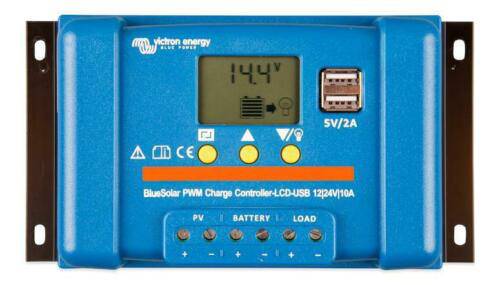

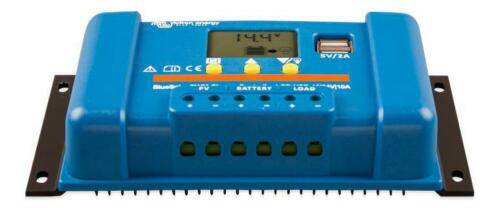

Victron Energy Blue Solar PWM solar controler with built in digital display + twin USB ports

Recommended for solar panels up to approx 120w at a max voltage of 28v (12v systems) or 55v (24v systems)

Liquidcrystal display forstatus monitoring and set-up

 Loadoutput

Over-dischargeof the battery can be prevented by connecting all loads to the loadoutput.

The load output will disconnect the load when the battery hasbeen discharged to a pre-set voltage.

The connect and disconnect voltages are adjustable.

 Day/nighttiming of the load output

This option allows for a pre-set ON-time after dusk.

 Programmable battery charge algorithm

Pre programmed algorithms for AGM, GEL, Flooded or LiFePO4 batteries (with internalBMS only)

Two 5 Volt USB outputs

Maximum current (both outputs combined): 2A



Technical Specification
Battery Voltage 12/24 V automatic system voltage detection
Rated Charge Current 10A
Maximum Solar Voltage 28V / 55V
Load Output Manual control + low voltage disconnect + timer
Grounding Common positive
IP Rating IP20
Dimensions H96 x W169 x D36mm
Weight 0.15Kg
Warranty 5 Years
