Simply Split Charge

Switch panel Kit - USB - power socket - voltmeter

Sale price£50.00 GBP

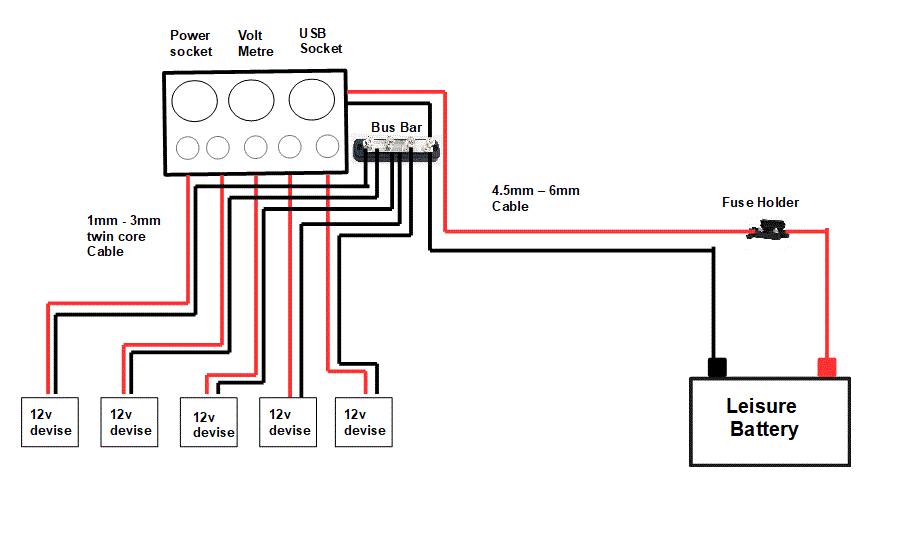

Switch panel kit supplied with everything you will need to connect a leisure battery to the panel for simple distribution of power to your 12v devices

In stock
Optional Twin Core Cable:

Optional Twin Core Cable

Quantity:

Product Details

Switch panel kit supplied with everything you will need to connect a leisure battery to the panel for simple distribution of power to your 12v devices

with optional 2mm² 25amp twin core cable

Supplied with

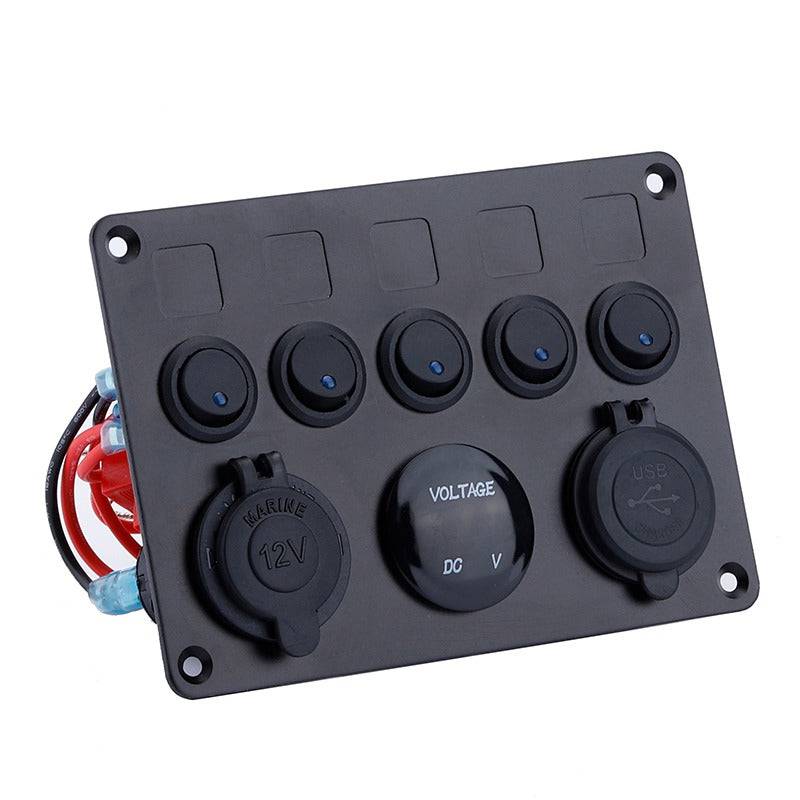

  • 1 x PSUSB050 Switch Panel

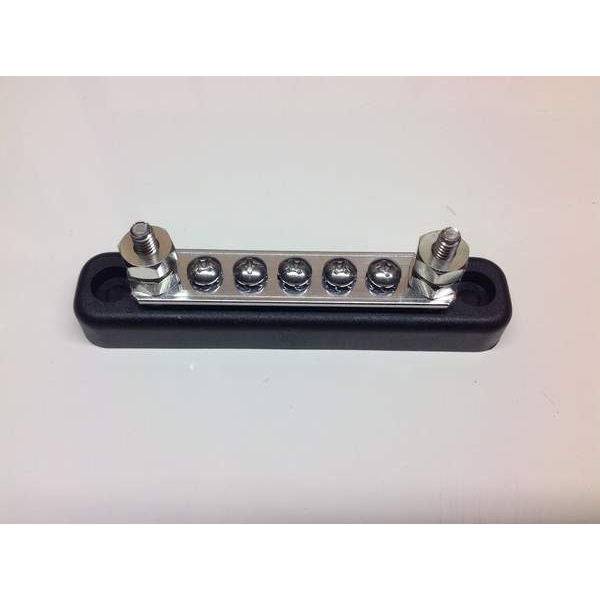

  • 1 x BB100MP Bus Bar

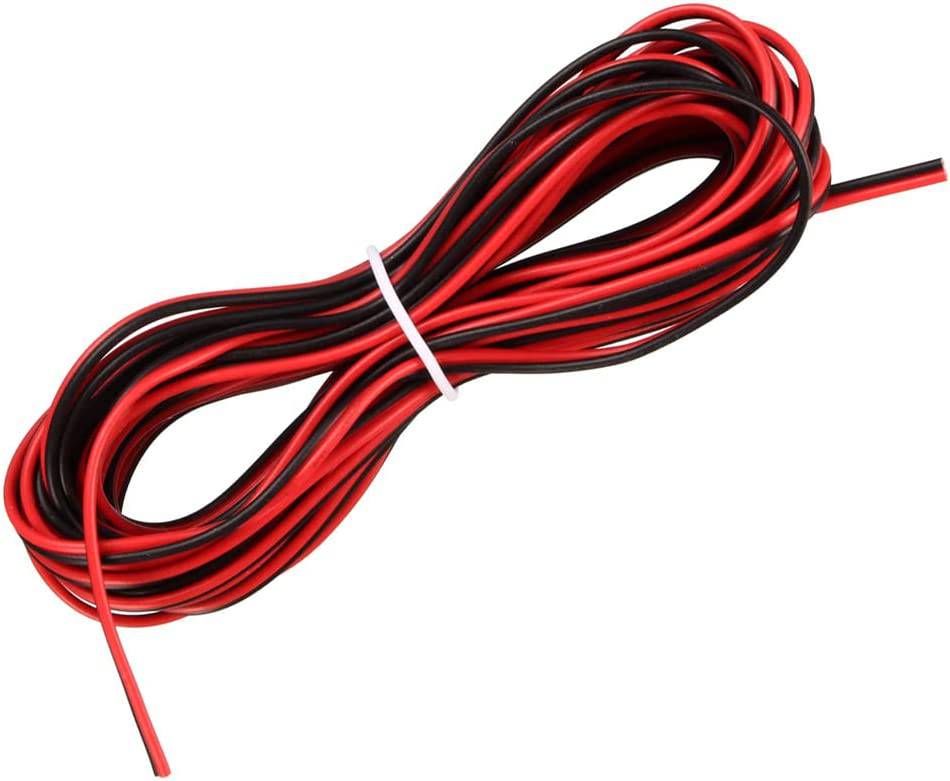

  • 5m C042TW 42amp Twin Core Cable

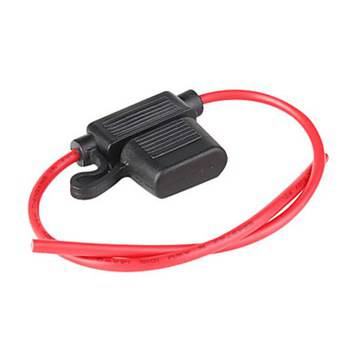

  • 1 x FB001/30 In Line Fuse Holder
  • 1 x BF30 Blade Fuse
  • 2 x CTY008 Yellow Ring Terminals
  • 4 x CTY006 Yellow Ring Terminals
  • 2 x CTY001 Yellow But Terminals
  • 2 x CTB063M Blue Male Terminal
  • 2 x CTY063/FI Yellow Female Terminal


Panel Specification:
Input Voltage: DC 12V/20A
Cigarette Socket:12V
Operating Temperature: -20C+110°C
Rocker Switch: 5
15A Inline Fuse Box Holders
Switch Type: On - Off
USB: 5V 2.1A +2.1A
LED Color: Blue
Material: ABS+PC+Aluminum
Size: 150 x 105 x 80mm

Features:

1.Rear with 15A fuse protection function.
2.presented with vehicle and marine labels, easy for DIY.

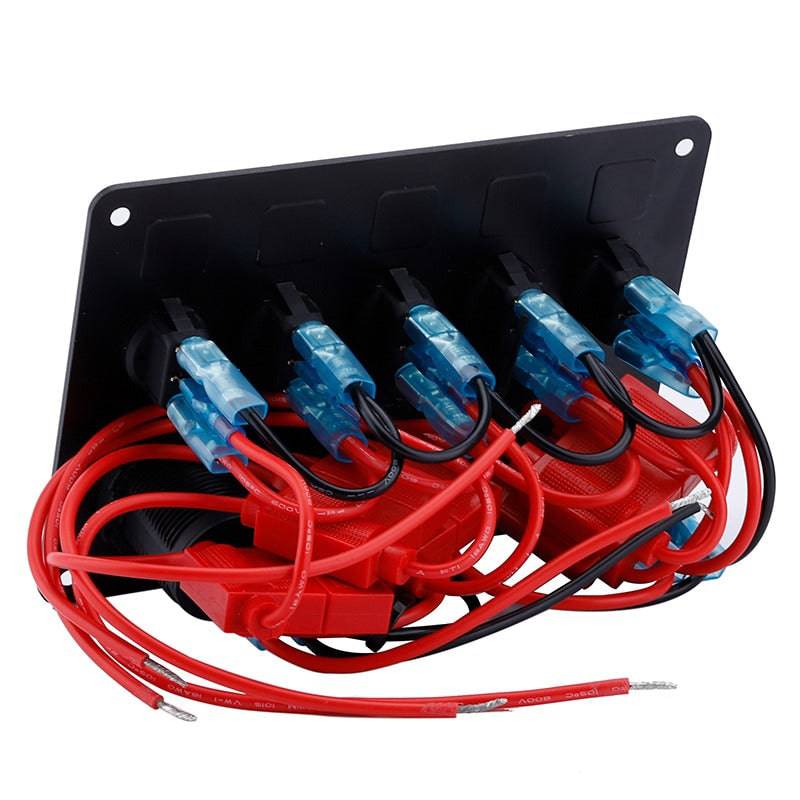

3.Pre-wired for you to easily install in both 12V vehicle, yacht, ship, caravan, truck, etc.
4.Switch panel for controlling universal electrical equipment in the vehicle: headlight, fog light, width light, car refrigerator switch, car vacuum switch, take electric for automobile external equipment, cigarette lighter and so on.
5.Dual USB charging ports(DC 5V/2.1A, 5V/2.1A), charging your phones, tablets, cameras, GPS, wireless headphones, etc.
6.12V Cigarette lighter can light your cigarettes.
7.Digital voltage display helps to monitor vehicles electrical safety from 5V to 30V.
8.Easy to replace, protect panel from over-heating, over-currents, over charging and short circuit.
8.High quality, more durable and solid aluminum panel than the plastic or the wooden one.
