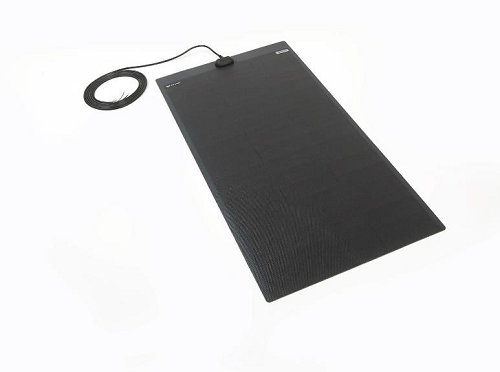

PV Logic 110w Semi-Flexble Solar Panel Black - Top Exit
Choose options
Product Details
The 110w MHD Flexi solar panel combines shingled monocrystalline solar cells to deliver super efficient power generation with a tough ETFE top sheet for longevity and robust impact resistance.
At just 2mm thick, this ultra-lightweight panel is ideal forflat roofs as well as surfaces with a slight curve making itthe perfect choice for camper vans and boat decks.
To ensure long term performance in the most extreme environments, the panels are tested to ASTM B117 -ISO9227 for saltwater spray over 1000 hours as well as accelerated Ultraviolet (UV) testing to ISO 4892.
The 200w solar panel comes with 2 x 0.9m connection cables fitted with MC4 connectors and 2 x 3m cable withMC4 connectors so the panels can be easily joined together to create a solar array.
The panel is supplied witha 4-year module warranty.A charge controller should be used with this panel to protect the battery from being overcharged and to prevent reverse of current drain.
Specifications + Parts List
SPECIFICATIONS
Size 1080x540x2mm
Weight (Kg) 2.01
*Watts per day (W) 660
*Amp hours per day (A) 36.72
Charge controller 10Ah
Vmp (VDC) nominal voltage 18.0V
Imp (A) nominal current 6.12A
Voc (V) 21.2V
Isc (A) short circuit current 6.48A
