Projoy DC Isolator 25A 2pole 1string
Choose options
Product Details
Part No: PEDS150-EL25R-2 Switches - DC Isolators

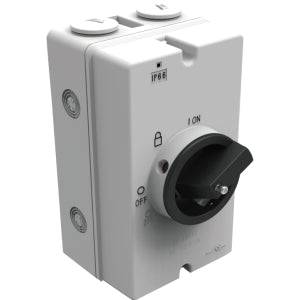

PEDS-EL Enclosure Series DC Isolator 25A
Modular design, DC insulation voltage 1500V, compact structure
IP66 box design, switch rotation operator with three lockable positions, to prevent misoperation
Suitable for different specifications of waterproof cable connector
The zero line bridge with angle design makes the connection easier
With sufficient internal space and good heat dissipation effect, the whole machine can work under -40℃-70℃ with full load
High - speed "on - off" switching mechanism, using energy storage spring, fast switching, maximum switching time is less than 5ms
Contact self-cleaning design, reduce the resistance and energy consumption of DC switch, extend the life of switch
Magnetic arc extinguishing and gate arc extinguishing are used to suppress the arc effectively
Passed IEC / EN60947-3: 2009+A1+A2, AS60947.3, UL508I, GB / T14048.3, with TUV, CE, CB, SAA, UL certification
