Merlin Powerguard pro flat battery protection
Battery bank option
Choose options
Battery bank option
Battery bank option
Product Details

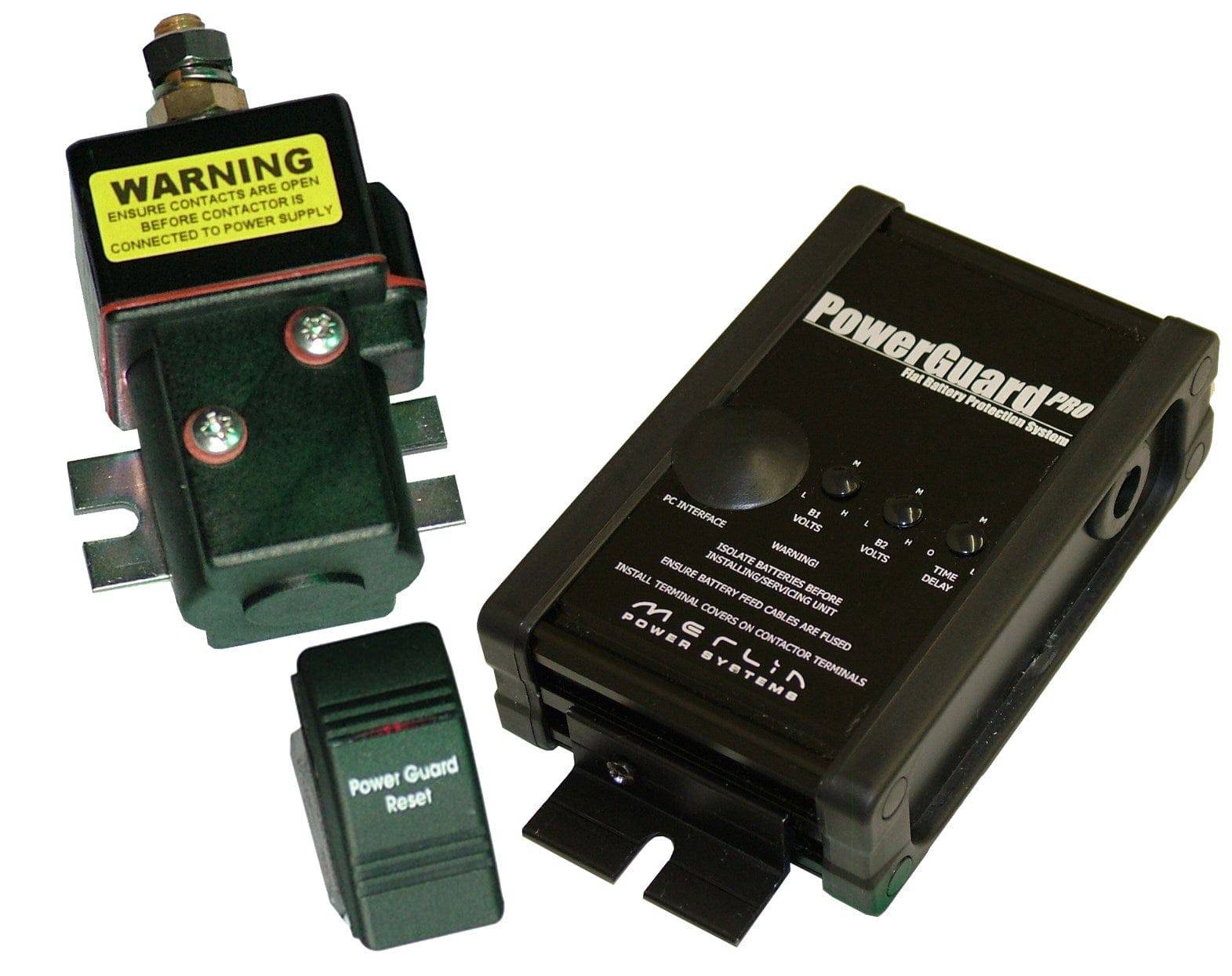

PowerGuard PRO combines advanced flat battery protection and remote battery switching for up to 2x battery banks. Many vehicles require both functions so PowerGuard PRO reduces installation time and the requirement to purchase separate isolator switches.
By employing leading edge technologies, Power-Guard PRO is designed to cope with the most de-manding system designs and is not fooled by tran-sient and electrically noisy loads thanks to DSP sampling. With completely configurable operation and 8x separately programmable inputs/ outputs, PowerGuard PRO is flexible enough to suit all applications.
• Combined switching and flat-battery protection

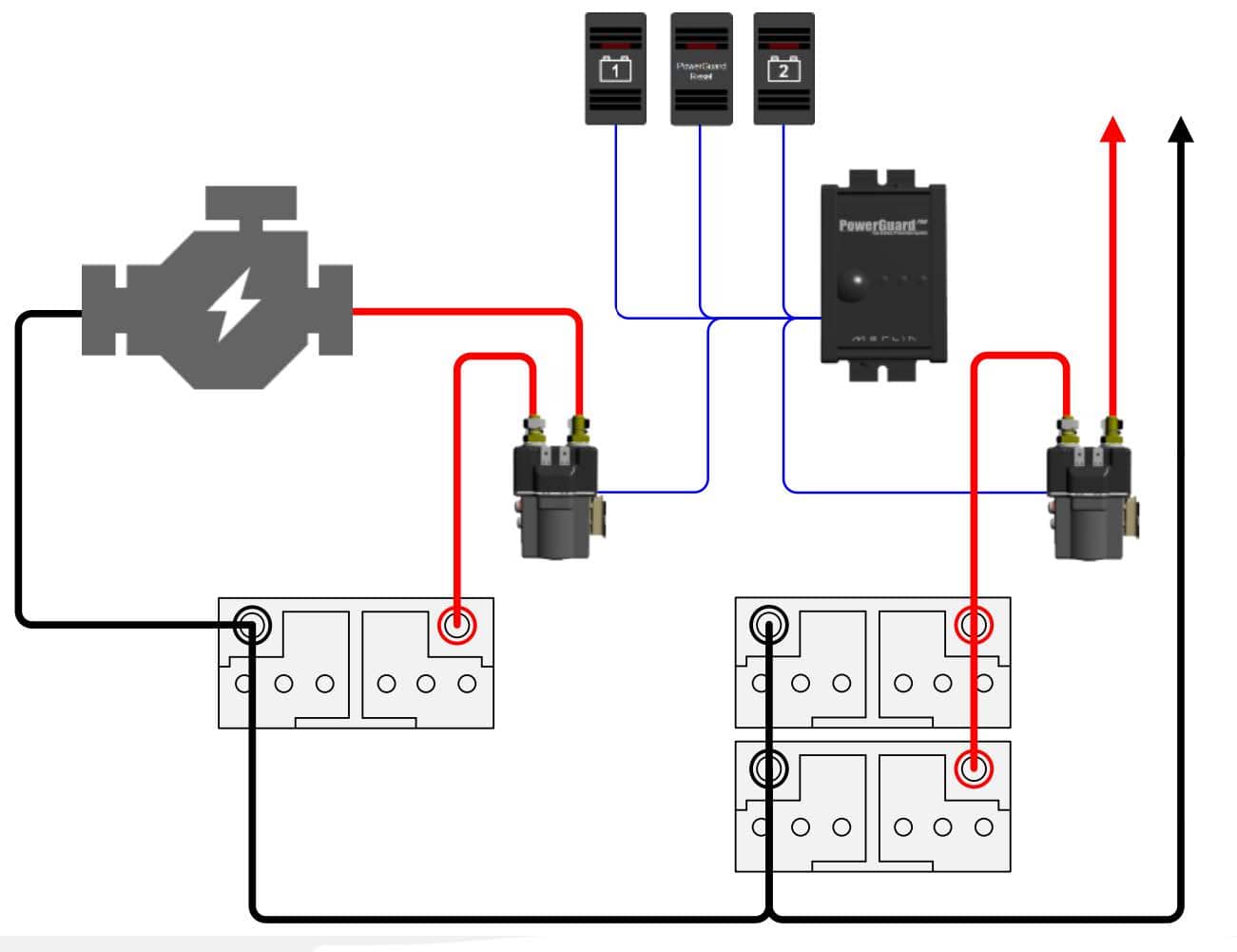

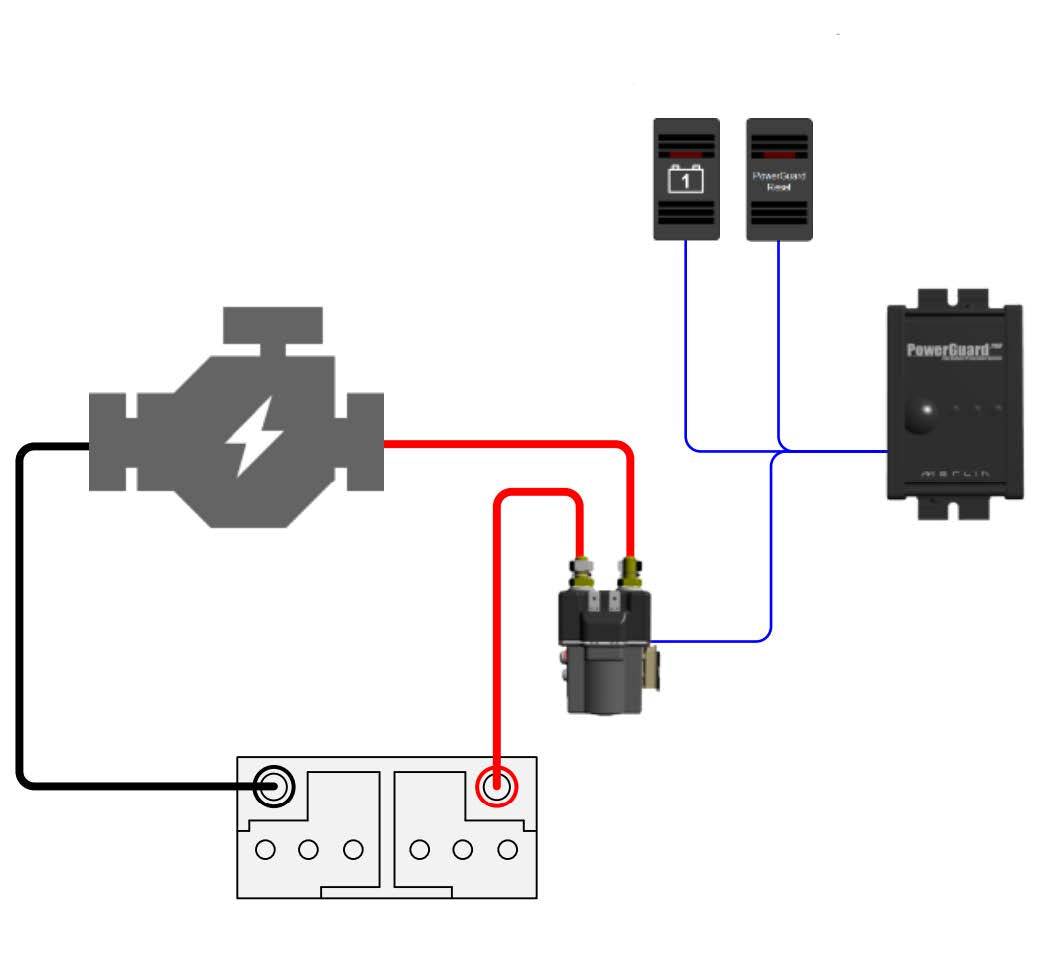

• Suitable for 1 or 2 independent battery banks (can be either 12V or 24V or mixed)
• Fully adjustable settings including: twin timers per battery channel, disconnect voltage, disconnect time, reconnect voltage (automatic if required), programmable interlocks, automatic re-connect from ignition and 8 programmable inputs/outputs
• Computer batch programming and data logging available with optional PC interface kit. Alternatively, manual set up can be achieved using trim pots located on the front of the unit.
Voltage 12V
Number of Battery Banks 1/2

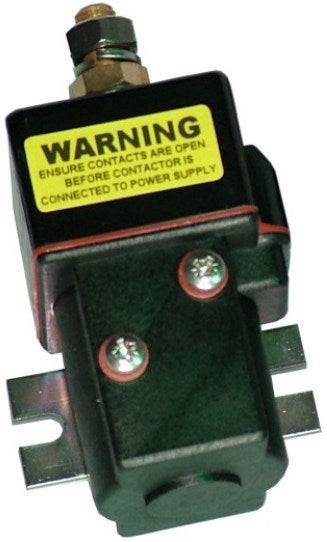

Contactor Current - Continuous 200A
Contactor Current - 5 Mins 250A
Contactor Current - Cranking 725A
Power Consumption <10mA
Connect/Disconnect Voltage Adjustment Range Fully Adjustable
Time Adjustment Range Fully Adjustable
CPU Dimensions L x W x H (mm) 68 x 100 x 32
CPU Weight - Ex Cables (g) 178
Contactor Dimensions L x W x H (mm) 91 x 50 x 39
Contactor weight (g) 375
Compliance EMC2002/95/EC, CE, ISO7637-2, SAE J1171
E- Mark Certification Yes
