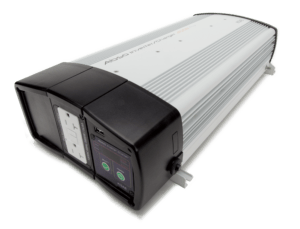

KISAE Combi Inverter/Charger 12v 1000w Inverter + 40A AC Charger
Quantity:
Choose options
Quantity:
Quantity:
Product Details
Combines KISAE’s renowned true sinewave inverter technology with its smart battery charger technology, resulting in the ability to run household appliances, electronics and power tools in your truck, boat or RV and properly recharge your batteries.
- True sinewave output to run motor loads and sensitive electronics without hum or buzz.
- Multi-stage charger to charge your deep-cycle batteries quickly and efficiently to manufacturer’s recommendations.
- Integrated transfer switch to switch seamlessly from shore power to battery power.
- Ideal for running appliances & consumer electronics the way they were designed to be.
Features And Benefits
- High frequency design with high surge capability to start demanding loads.
- True sinewave output will run heavy-duty motor loads and entertainment systems flawlessly.
- Low battery shutdown to prevent total battery discharge
- Detachable remote panel provides vital system information.
- Over temperature shutdown.
- Mounting brackets and high quality DC connectors for simple installation.
- Approved to UL, CSA, and European regulatory standards.
- Silent operation.
- Compact size for easy storage.
- Wall-mountable.
Dimensions (L x W x H):
IC121040: 18.8” x 9.1” x 4.5” (477.5 x 231 x 114mm)
Weight:
IC121040: 13.9 lbs. / 6.3 Kg
Specifications + Parts
Power (Continuous) | 1000W |
Power (Peak) | 2000W |
Voltage/Frequency | 120VAC / 60 Hz |
Current | 8.3A |
Waveform | True Sine Wave (<3% THD) |
Peak Eciency | 90% |
AC Receptacle | NEMA 5-15 GFCI |
5V USB Output | 2.1Vdc |
Voltage (nominal) | 12.5Vdc |
Operation Range | 10.5 – 15.5Vdc |
Inverter Standby Current | < 1.5A |
Input Undervoltage Shutdown | 10.5/11.0Vdc |
Inverter Overvoltage Shutdown | 15.5Vdc |
Digital Remote Panel | Detachable (included) |
Digital Display (LED) | Input Voltage, Output Power, Warning, Error Code |
Charger Voltage Range | 13.5 – 14.4V |
Float Voltage Range | 13.4 – 13.8V |
Charger Current | 40A |
Charger Battery Type | GEL, Flooded, AGM, Lithium, Programmable, Power Supply |
AC Input Voltage/Frequency | 120VAC / 60Hz |
Transfer Time | <30ms |
Transfer Relay Rating | 30A |
Markings | cETLus |
Conformance | UL & CSA Standards |
Weight | 12.5 lbs. |
Dimension | 18.8 x 9.1 x 4.6” |
Ignition Start Module | ISRM01 |
Battery Temperature Sensor | BTS 10K (For battery charging voltage adjustment) |
