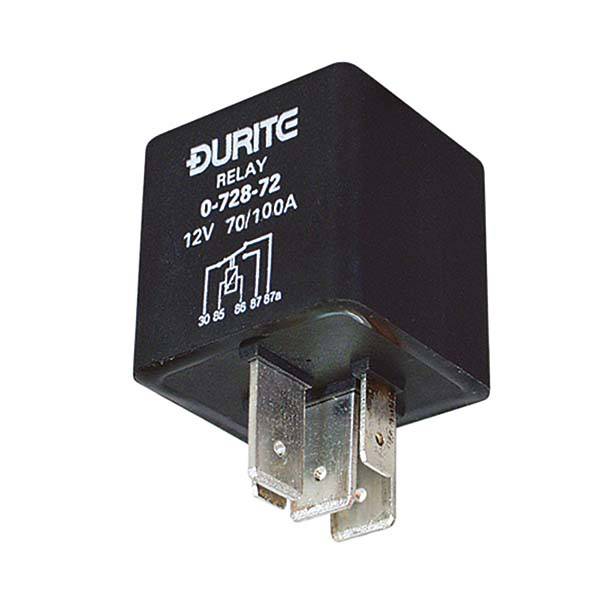

Durite 12V Mini Extra Heavy Duty Change Over Relay - 80/100A 0-728-72

Product Details

Mini heavy duty change over relay. 12 volt, 70/100 amp sealed without bracket. 2 x 6.3mm and 3 x 9.5mm terminals.

Specifications + Parts List

Type Change over relay

Voltage 12 volt dc

Current 70/100 amp

Switching voltage 75 vdc maximumContact material

Silver alloy

Contact resistance 30mΩ

Voltage drop 200mV (at contact rating)

Coil operating voltage 7.8 volt

Coil dropout voltage 1.2 volt

Coil current 0.24 amp

Coil resistance 50Ω

Temperature range -40˚C to +85˚C

Humidity 40 to 85% R.H.

Operating life 107 (mechanical) 105 (electrical)

Weight 35g

Dimensions l 34.5 x w 32.5 x h 34.5mm (excluding terminals)
