Campervan Wiring Kit HC Cargo 161059 (VSR) Voltage Sense Relay

Sale price£119.16 GBP
In stock
Please select kit length:

Please select kit length

Optional Twin Core Cable:

Optional Twin Core Cable

Optional 6 Way or 12 Way Fuse Box Kit:

Optional 6 Way or 12 Way Fuse Box Kit

Quantity:

Product Details

Campervan wiring kitsupplied with everything needed to charge a leisure battery using our very popular HC Cargo 160159 voltage sense split charge relay.


Supplied with the leads Pre crimped for a very simple installation into any older vehicle vehicle with a standard alternator charging system.


This kit contains the following items

HC Cargo 160159 Voltage Sense split charge relay (VSR) + Pre crimped wiring kit


Additional Options

6 way or 12 way fuse box kit

10m or 30m 2mm² 25amp Flat Twin Core Cable


Simply Select kit length from the drop down menu above for the approx distance between the main starting battery to the leisure battery location


This pre crimped positive red kit length will be made up insing 4 leads to make the total kit length as descriped in the description below + 1m negative black lead for the leisure battery chassis connection.


If required select a 6 way or 12 way fuse box kit to distribute power from the leisure battery and optional twin core cable.

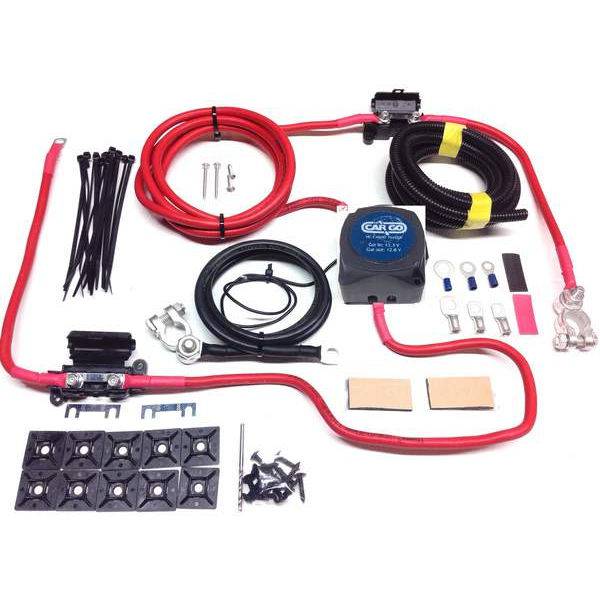

Split Charge Kit


1 x 12v 140amp HC Cargo relay

1 x 250mm 110amp Red Starter Battery to fuse box lead. (8mm to 6mm terminals)

1 x 1m to 7m 110amp Red Fuse box to relay lead (6mm to 6mm terminals)

1 x 500mm 110amp Red Relay to fuse box lead (6mm to 6mm terminals)

1 x 250mm 110amp Red Fuse Box to Leisure Battery Lead (6mm to 8mm terminals)

1 x 1000mm 110amp Black Earth Cable. (8mm to 10mm terminals)

Spare terminals + Heat shrink pack for modifications if required

Positive & Negative 8mm post type battery terminals

2 x Fuse Holders & 100amp Fuses including a spares.

15 x Cable ties + fixings to keep everything tidy.

2mtrs Split conduit to protect cables in Engine bay.

Screws to fix fuse boxes & cable tie bases

High Quality HSS Drill Bit


Optional Fuse Box Kit Information


1 x 6 or 12 Way Fuse Box

1 x 250mm Red 70amp 10mm2 Lead with M6-M8 Terminals

1 x 1mtr Red 70amp 10mm2 Lead with M6-M6 Terminals
1 x 1mtr Black 70amp 10mm2 Lead with M10-M6 Teminals
1 x strip link fuse holders + 2 x 60amp fuses

2 x 6mm + 1 x 8mm Spare Copper Tube Terminals



2 x red + 1 x Black Spare Heat Shrink to suite
4 x each 5amp,10amp,+ 2 x each 15amp & 20amp Blade Fuses
25 x 4mm blue insulated ring terminals




Optional Twin Core Cable Information


Top quality British made Twin Core Cable

Conductor spec: 28/0.30

Cable size: 2 x 2.00mm2 (15 AWG)
Nominal current rating: 25Amps
Dimensions: 3.9mm x 6.5mm
Colour (outer): Black
Colour (inner): Red & Black

2mm² 25amp twin core cable is a very popular option for general campervan electrics including lighting, water pump, power sockets, USB,


Voltage sense systems are especially suited for modern vehicles as this type of system does not need an ignition feed or any additional wiring into your vehicle but for modern Intelligent smart charging vehicles with Euro 5/6 engines you may need to use a DC to DC charger.
