Campervan Electric kit VKIT12 Victron 30amp Isolated System + Inverter

£650.00 GBP

Price Includes VAT.

Victron Energy system to charge a deep cycle lesure battery and to suppy 12v DC and 240v AC power in any leisure, works or marine application

In stock
PLease select Victron Inverter Option:

PLease select Victron Inverter Option
Quantity:

Victron Energy system to charge a deep cycle lesure battery and to suppy 12v DC and 240v AC power in any leisure, works or marine application

Suitable for any battery type including lead acid, AGM ,GEL or Lithium

Simply select the inverter option required from the drop down menu above

This system has two spare connections on the mega midi distribution box to simply add a 240v mains charger or solar set up if required.

The kit is supplied with the following items

  • Power distribition kit to connect all of your circiuts + inverter to the leisure battery
  • Victron Orion 12v 30amp battery to battery charger to charge and maintain the leisure battery from the alternator
  • Victron Pheonix 240v Inverter to supply 240v power off grid
  • 12v fuse box to supply to 12v devices
  • 30m 2.0mm² Flat Thin Wall Cable

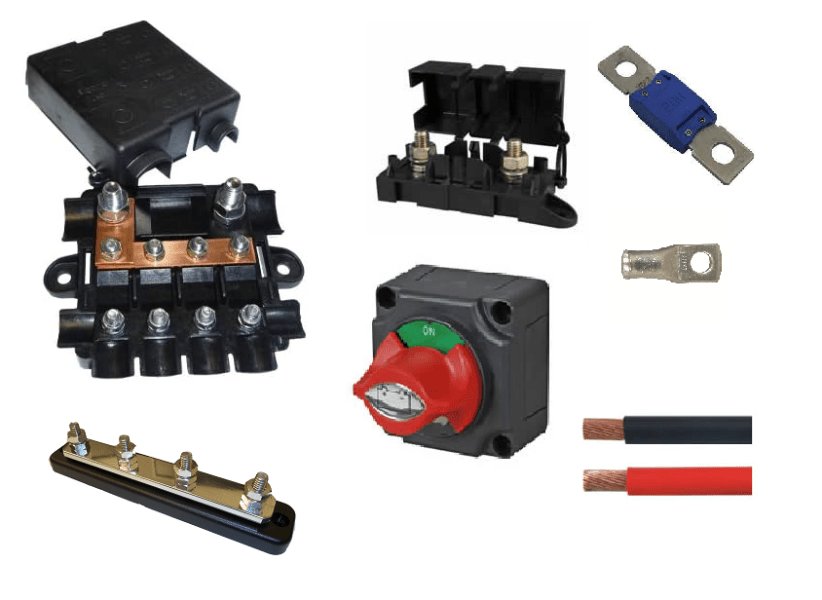

Power Distribution + Inverter Wiring Kit
1 x Mega Midi Distribution
2 x Mega 150amp Fuses
1 x Mega Fuse Holder
1 x 150amp Bus Bar
1 x BI020 Battery Isolator
1 x Battery Terminals + Covers
2m x BATF25 Red
2m x BATF25 Black
2m 16mm Split Conduit
2 x 25-6T Terminals
10 x 25-8T Terminals
3 x 25-10T Terminals
3 x R25 Pin Terminals
10 x Red + 5 x Black Heat Shrink

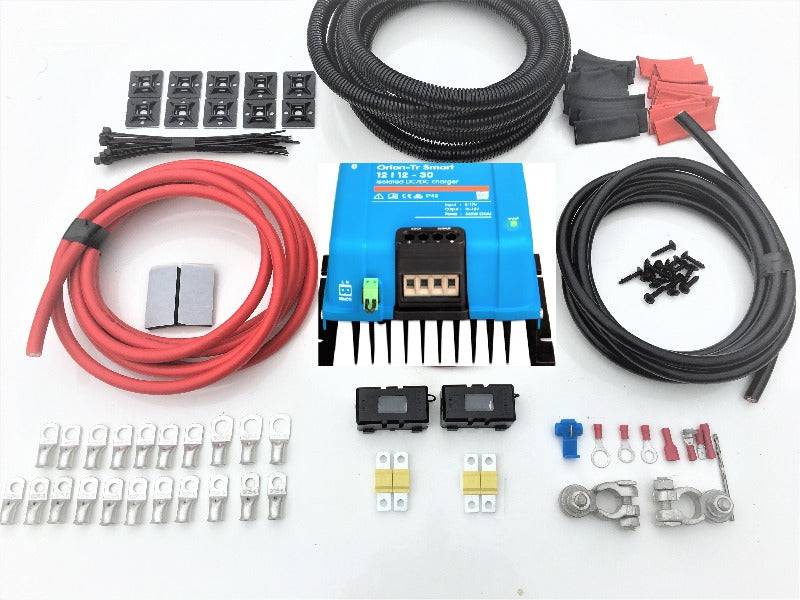

Battery to Battery Charger + Fuse Box
Victron Orion Tr Smart 12v 30amp Battery to Battery Charger
1 x 12 Way Fuse Box
1 x 30m 2.0mm Twin Core Cable
10m Red 16mm Cable
10m Black 16mm Cable
10m 13mm Split Conduit
1 x Fuse Holders + 5 x 60amp Midi Fuse
10 x 16-6T Terminals
5 x 16-8T Terminals
3 x 16-10T Terminals
5 x R16 Pin Terminals
24 x 4mm Blue Ring Terminals
15 x Red + 10 x Black Heat Shrink
15 x Cable Ties
10 x Cable Tie Bases
1 x Screw +Drill Bit Pack
1 x Stcky Pad Pack

Inverter + MCU Kit

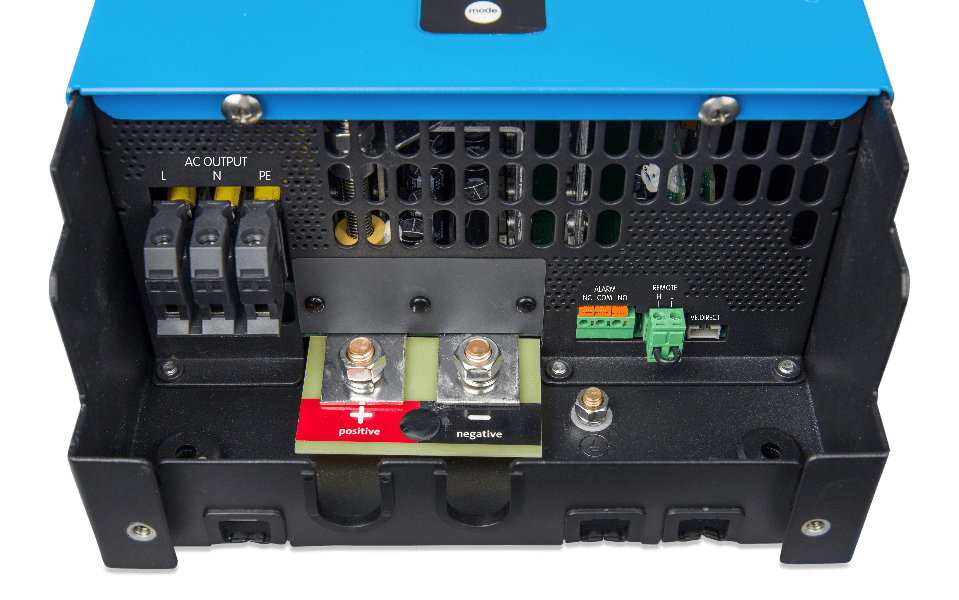

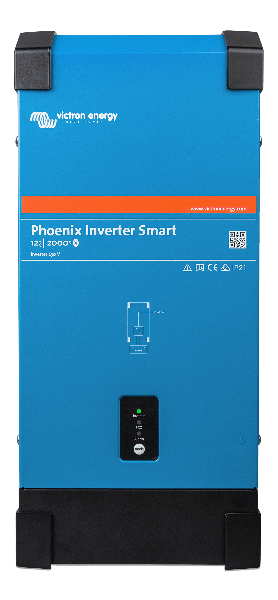

Victron Pheonix Inverter

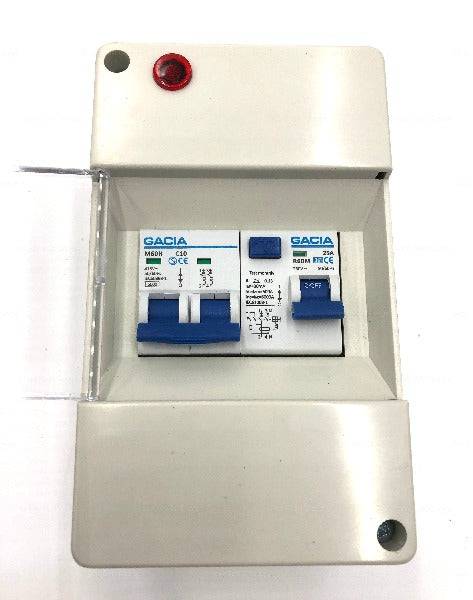

MCU10 Consumer Unit
1 x Double White 13amp Socket + Base
5m 2.5mm Blue Artic Cable
2m 6mm Earth Cable
MHU Fitting Pack
