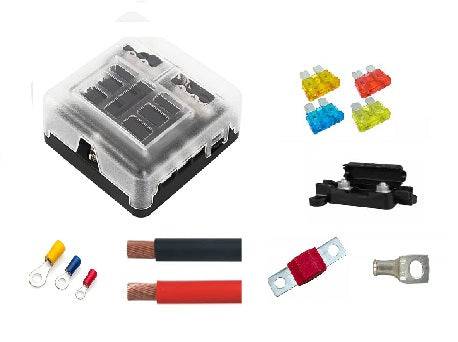

6 Way or 12 Way Blade Fuse box kit with Negative Bus Bar + 70amp Cable - Simply Split Charge
Pre made Switch Panel Kit with 6 way Fuse Box - Simply Split Charge
Victron Energy Battery Monitor BMV-712 Smart - Simply Split Charge
Victron Energy SmartShunt 500A/50mV - Simply Split Charge

Campervan Electric kit VKIT09 Victron Non Isolated 30a B2B, Fuse Box, Switch Panel

£500.00 GBP

Price Includes VAT.

SKU: VKIT09-PSUSB050-PDP25

Popular system for campervan electrics. Supplied with everything you will need to connect your vehicle battery to a leisure battery for charging while you are driving + 6 way fuse box for 12v circuits + a switch panel

In stock

Please select from the battery distribution cable size options Below.

Battery Distribution Cable Size Option:

Battery Distribution Cable Size Option
Please Select Optional Battery Monitor if Required:

Please Select Optional Battery Monitor if Required
Quantity:

Our Victron non isolated charging system is a popular starter or basic package for adding electrics into a campervan, motorhome, race van or boat, to maintain and charge a leisure battery and to distribute 12v power.

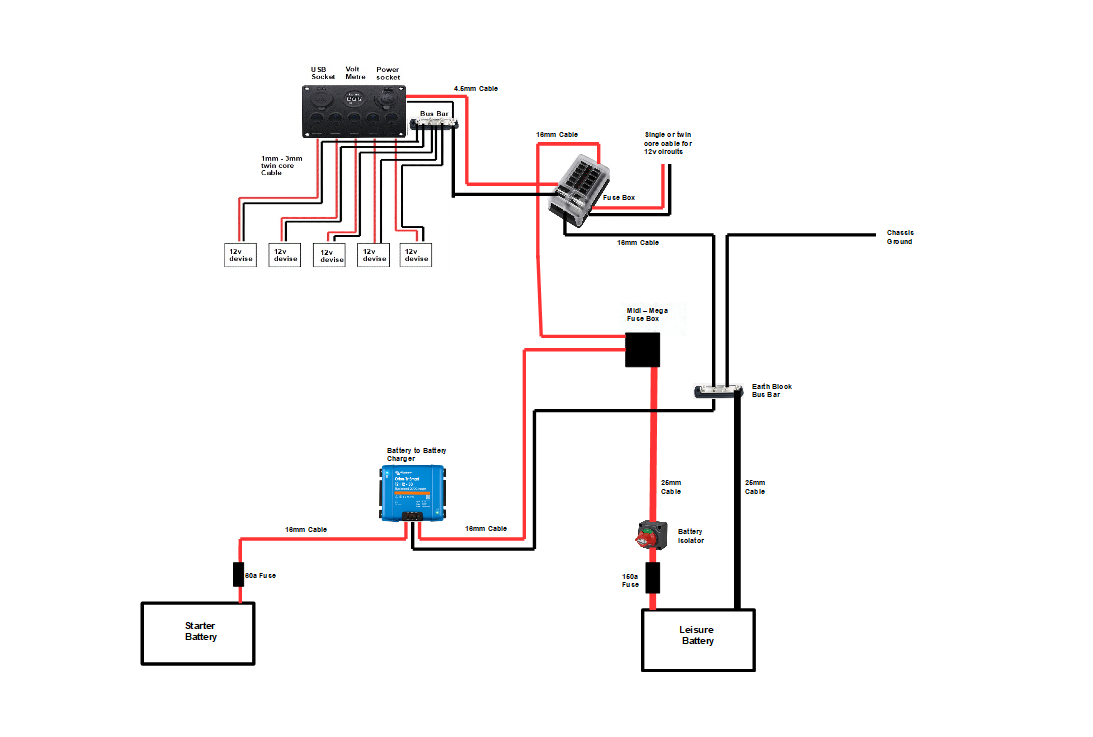

This kit is supplied with everything you will need to connect your vehicle battery to a leisure battery for charging while you are driving, 12 way fuse box for all of 12v circuits,  battery distribution kit from the leisure battery with three spare circuits on the mega midi fuse box for the option to add solar,  240v mains battery charger + an inverter.

  • Victron Orion TR Smart 30amp Non Isolated Battery to Battery Charger
  • 6 Way Fuse Box
  • Battery Distribution Kit
  • 30m 2mm² 25amp Twin Core Cable
  • Switch Panel
  • Fitting Kit Cables - Terminals - Fuses
  • Instructions + Aftersales support

The battery distribution kit which includes a mega midi fuse box + bus bar simply connects all of your devises to the leisure battery.  It has a spare mega fuse output that can be used for an inverter to be added if required. Simply select the optional higher rated distribution kit if required to suit the inverter size you will be fitting from the drop down menu above.

We recommend

25mm² kit for an inverter up to 1000w
35mm² kit for an inverter up to 1500w
50mm² kit for an inverter up to 2000w

Please select an optional battery monitor if required

Smartshunt - monitoring you battery via the Victron Connect App on you smart phone
BMV712 - Monitoring your battery via a screen plus via the Victron connect App on your smartphone

Parts List

1 x Victron 12v 30amp Non Isolated TR Smart battery to battery charger ORI121236140
1 x 6 Way Fuse Box
1 x Switch Panel
1 x Mega Midi Fuse Box
1 x Bus Bar
1 x Battery Isolator
1 x Mega Fuse Holder


Fitting Parts List
8m 16mm Red Battery Cable
8m 16mm Black Battery Cable
5m 4.5mm Twin Core Cable
2m 25mm Red Battery Cable
2m 25mm Black Battery Cable
2 x 150a Mega Fuse
3 x 60a Midi Fuse
1 x Terminal Pack
1 x Battery Terminals + Covers
10m Conduit for 16mm Cable
2m Conduit for 25mm Cable
30m 2mm Twin Core Cable



Victron energy products are the most popular top quality products we supply to help charge and maintain a leisure battery system in any vehicle
