Product Details

This AMC12 charger works on vehicles with a 12V electrical system tocharge nominal 12V battery packs.

Top quality British battery to battery charging system

This system is Ignition switched only and will require wiring to an ignition live feed for activation

The AMC charger works with Ignition control, Constant VoltageAlternators, Euro 5/6 engines, STOP/START, Smart Alternator charging systems & Vehicles with Regenerative Braking, ( MercedesBenz Blue Efficiency Vehicles, VW Blue Motion Vehicles, Ford ECOnetic vehicles, Vauxhall ecoFlex vehicles to name a few).

The unit delivers 30A charging currents to charge upto to 300Ahr batterypacks .

The unit operates with from 9-30V and so works with long cable runs andlarge swings in input voltages.

The unit is protected against current overload and over temperature protection with a fully automatic reset.

The software optimises the battery charging cycle and is configured tosuit most types of lead acid including Gel, AGM but can easily be reprogrammed to fit a particular type of battery or customer specification using the Ablemail Software Interface (ASI).

The optional Interface Card adds remote output voltage monitoring for when the secondary battery is a long way from the charger &Battery Temperature monitoring for operating in extremely hot or cold conditions.

If the unit is operated with an Ablemail Smart Relay it can chargeLithium batteries.

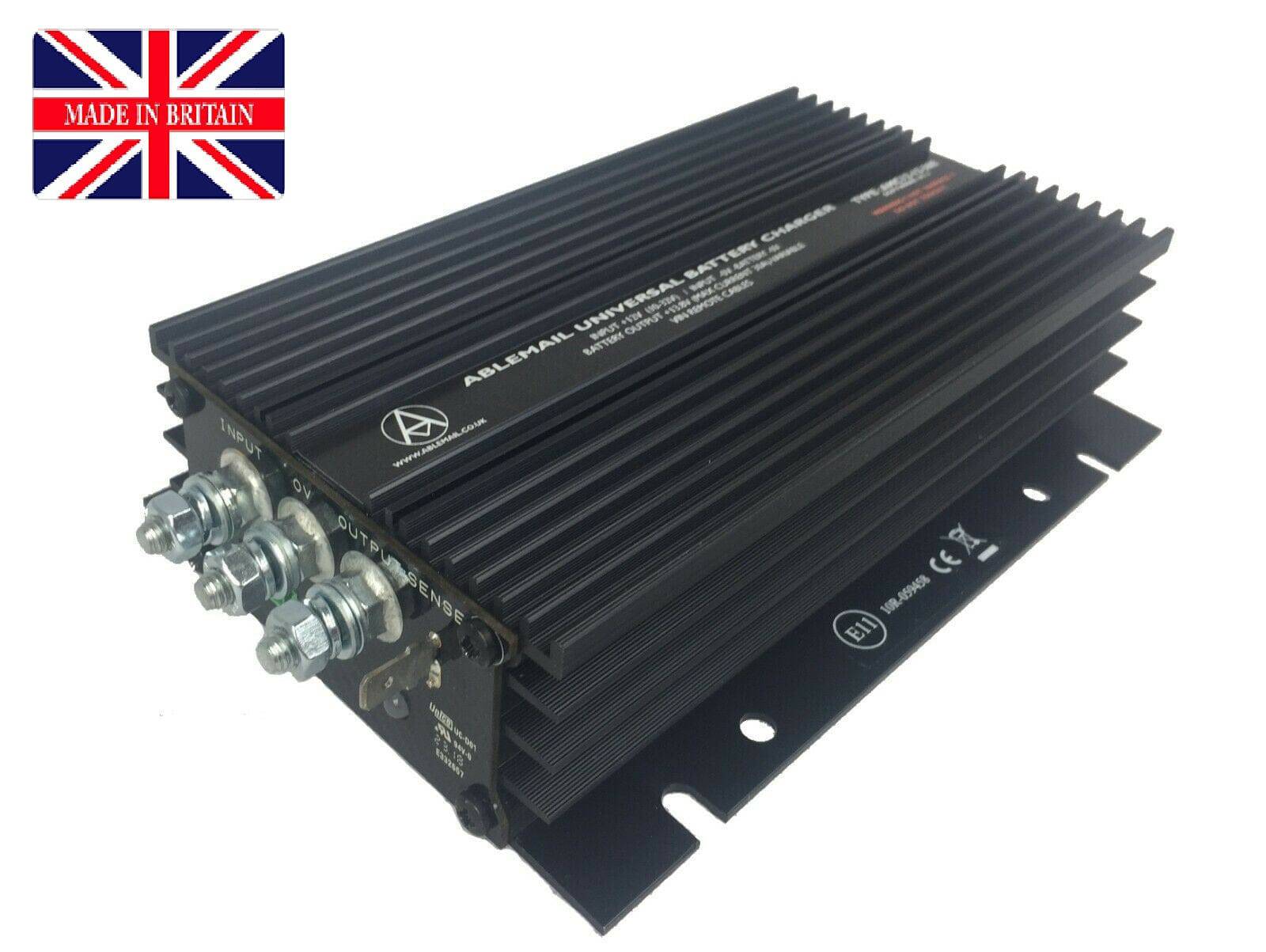

The unit is assembled in an aluminium extruded case which can be filled with resin for operation in particularly harsh environments.

It can be supplied with a variety of connection options see the Ablemail Mechanical Options.

Specifications + Parts

OutputLoad Current:  30A

InputVoltage:  12V nominal (10-15V)

NoLoad Input Current:  2mA @ 12v input

EMC: E11 Approved CE approved

Protection: Automatic overload and over temperature protection with fullyautomatic reset

OutputVoltage:  12V

Isolation: Non-isolated

Optional additional Blue Tooth Smart Phone App Coming Soon

 Ablemail Electronics is a UK based Electronics Manufacturer Specializing in the Design & Production of DC DC Power Converters.
