Product Details

Top quality BRITISH made and designed small and compact battery to battery charging system suitable for all makes and models with second to none back up and support

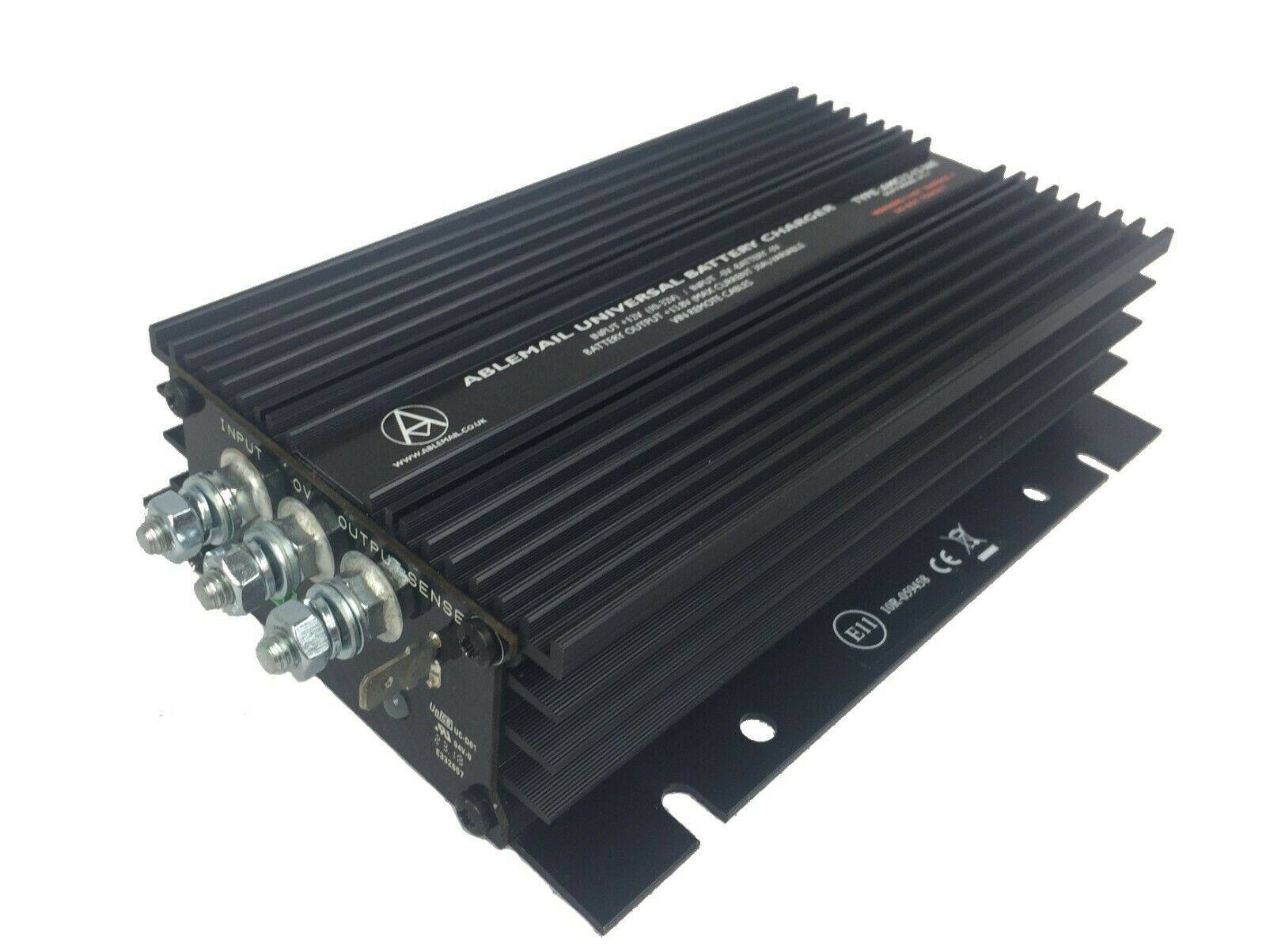

This AMC121230 charger works on vehicles with a 12V electrical system to charge nominal 12V battery banks.

The AMC charger works with Euro 5/6 engines, STOP/START, Smart Alternator charging systems & Vehicles with Regenerative Braking, ( Mercedes Benz Blue Efficiency Vehicles, VW Blue Motion Vehicles, Ford ECOnetic vehicles, Vauxhall ecoFlex vehicles to name a few).

The unit delivers 30A charging currents to charge upto to 300Ahr battery banks .

The unit is protected against current overload and over temperature protection with a fully automatic reset.

The software optimises the battery charging cycle and is configured to suit most types of lead acid including Gel, AGM

 The unit is assembled in an aluminium extruded case which can be filled with resin for operation in particularly harsh environments.

Optional additional Blue Tooth Smart Phone App

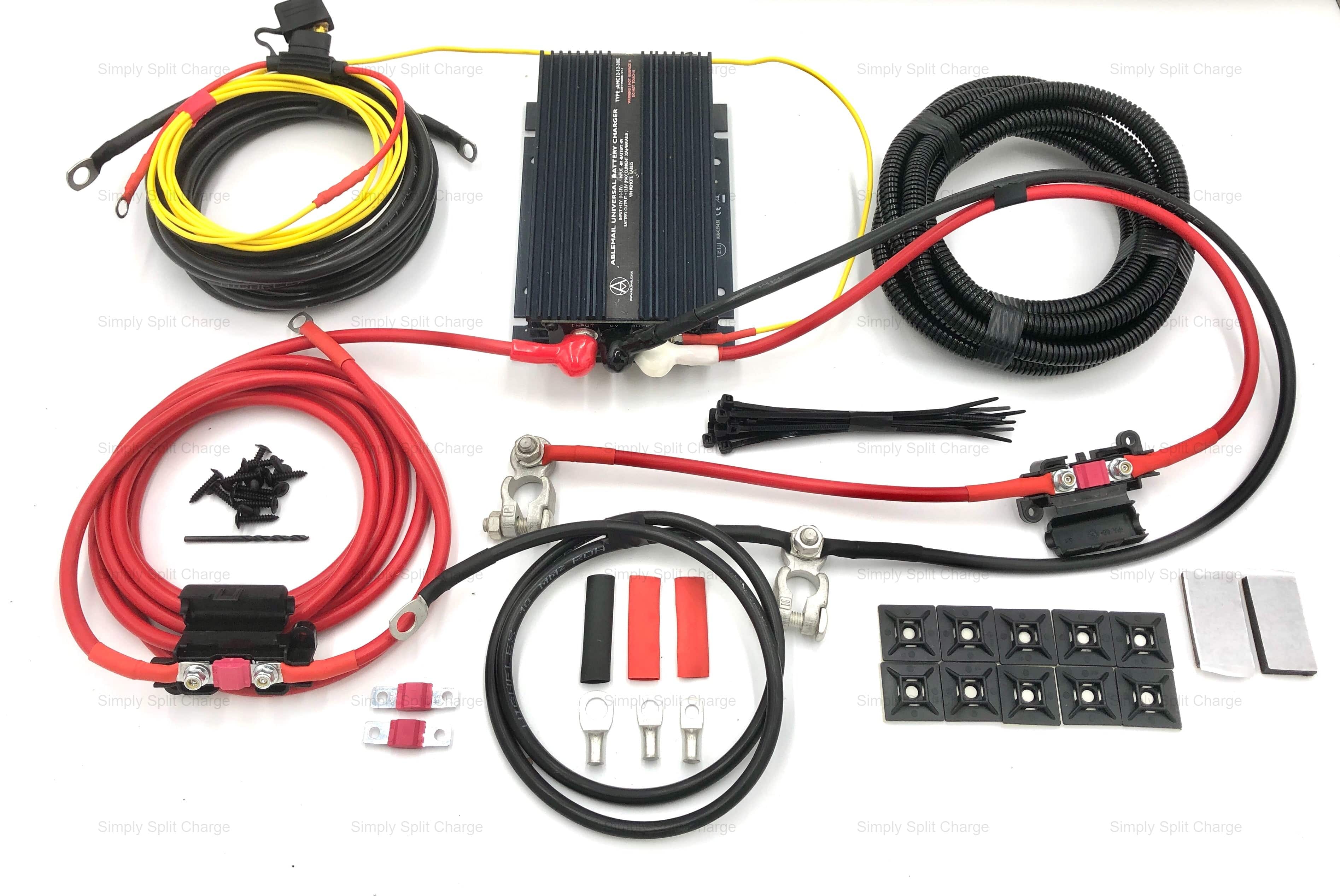

Supplied with

1 x AMC12-12-30E Battery sense 30amp charger

2 X 250mm Red 70amp leads M6-M8 Fuse link leads for both starter battery and leisure battery

1 x 1-7m Red 70amp Lead M6-M6 starter battery to charger lead (A Lead)

1 x 750mm Red 70amp lead M6-M6 charger to leisure battery lead (B Lead)

1 x 1000mm Black 70amp Lead M6-M8 charger to leisure battery earth

1 x 1000mm Black 70amp Lead M8-M10 Leisure battery to chassis lead (1m)

1 x 1-8mtr Black 70amp Lead M8-M10 Alternative leisure battery to starter battery earth lead (6m)

1 x 1-7mtr Yellow 17.5amp lead wth in line fuse holder (Battery Sense wire)

1 x 1-8mtr 10mm Conduit

Terminal Pack

Heat shrink pack

2 x 8mm Post type battery terminals

2 x Fuse Holders

 4 x 50amp fuses

2 x Fuse Holders

Total lead length will be made as described above to total lead lenght ordered including the 1mr lead from charger to leisure battery

Specifications + Parts List

Output Load Current:  30A

Input Voltage:  12V nominal (10-15V)

No Load Input Current:  2mA @ 12v input

EMC:  E11 Approved CE approved

Protection:  Automatic overload and over temperature protection with fully automatic reset

Output Voltage:  12V

Isolation:  Non-isolated

Dimentions of charger W 123.5 x L 160.0 x H 46
