Ablemail 30amp B2B Battery to Battery charger wiring Kit 70amp 10mm Ready Made Leads
B Lead Charger to Leisure Battery
A Lead Starter Battery to Charger
Choose options
B Lead Charger to Leisure Battery
A Lead Starter Battery to Charger
B Lead Charger to Leisure Battery
A Lead Starter Battery to Charger
Product Details
AMC-12-12-30E Wiring kit for simple installation for 30amp Ablemail style battery to battery charger
It is recommended to install the charge as close to the leisure battery as possible.
Supplied with pre crimped leads made to measure
Simply select from the menus
( LEAD A) main lead from the starter battery to the charger
(LEAD B) Main lead from charger to the leisure battery(s)
Very simple to connect and install with only three main connections
Starter battery to charger
Charger to leisure battery
Common Earth

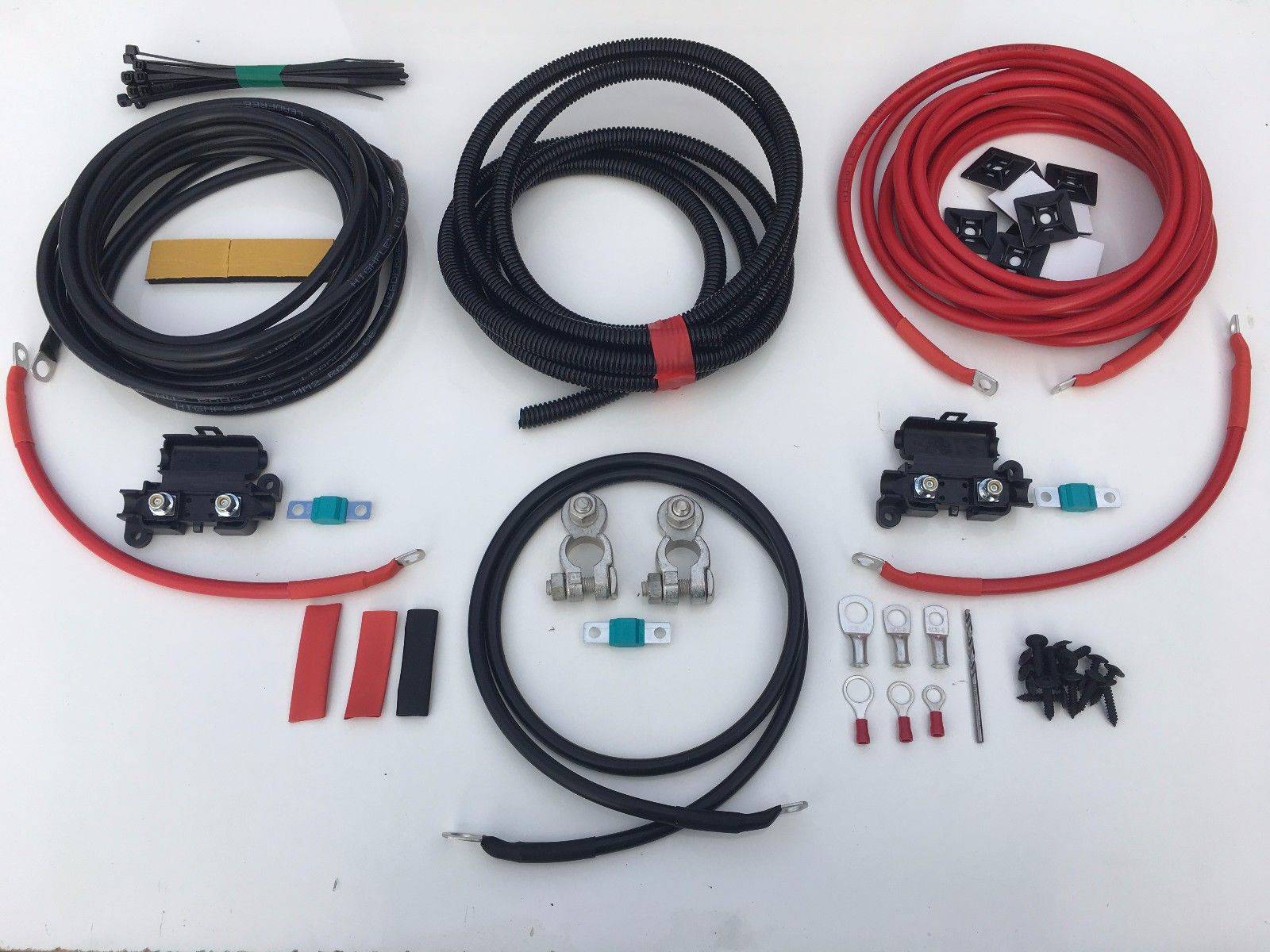

Specification + Parts
Supplied with
- 1 x 250mm 10mm 70amp Red lead with M8-M6 terminals for starter battery to fuse holder
- 1 x (A LEAD) selected above 10mm2 70amp Red lead with M6 to M6 terminals for fuse holder to charger
- 1 x (A LEAD) selected above 10mm2 70amp Black lead with M8 to M6 terminals for starter to charger
- 1 x (B LEAD) selected above 10mm2 70amp Red lead with M6 to M6 terminals for charger to fuse holder
- 1 x (B LEAD) selected above 10mm2 70amp Black lead with M6 to M8 terminals for charger to earth/leisure battery
- 1 x 250mm 10mm2 70amp Red lead with M6 to M8 terminals for fuse holder to leisure battery
- 1 x 1000mm 10mm2 70amp Black lead with M8 to M10 terminals for your leisure battery earth
- 2 x strip link fuse holders with 50amp midi fuses + a spare
- Positive and negative 8mm post type battery terminal
- Spare copper tube terminals + heat shrink for any modifications
- 15 x cable ties + 10 x adhesive cable tie bases
- 2 x sticky pads
- 15 x screws + drill bit
- split conduit to protect cables
We can also supply this kit as a simple cable and component kit if required supplied with everything needed to make up the kit yourself
Simply select the best length kit to suit your needs and add a note in the check out page for us to adjust your order
