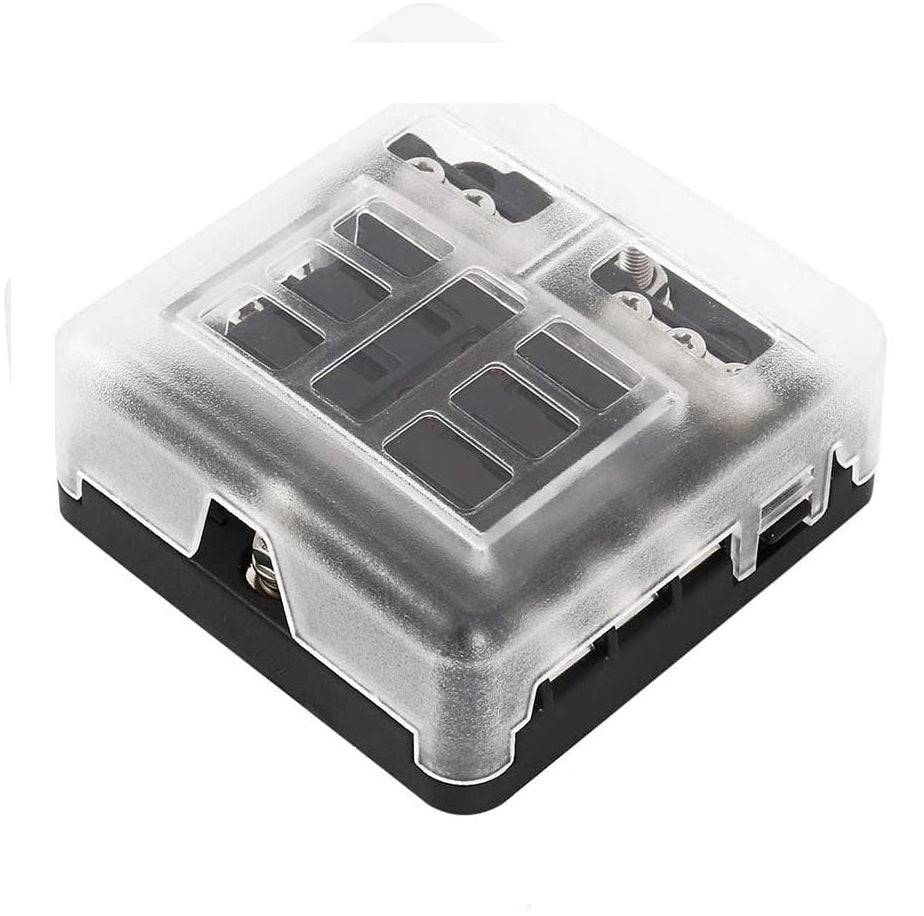

Product Details

Consistsof two separate banks of 6 fuses with screw connections.

Eachbank of fuses has a common feed for main positive connection

Commonbusbar for the negative connection.

Eachbank of 3 fuses has its own positive supply source.

Commonnegative busbar provides 6 screw connections for a common negative

Mainpositive connections are made by 5.3mm shaft dia. studs.;

Specifications + Parts

MaximumAmps per circuit-30Amps

NegativeCircuit: 1x common bus and 6 pole connector block.

Positiveand Negative common buses: M5 studs.

Height:50mm

Basewidth: 94mm

BaseLength: 125mm
