Description

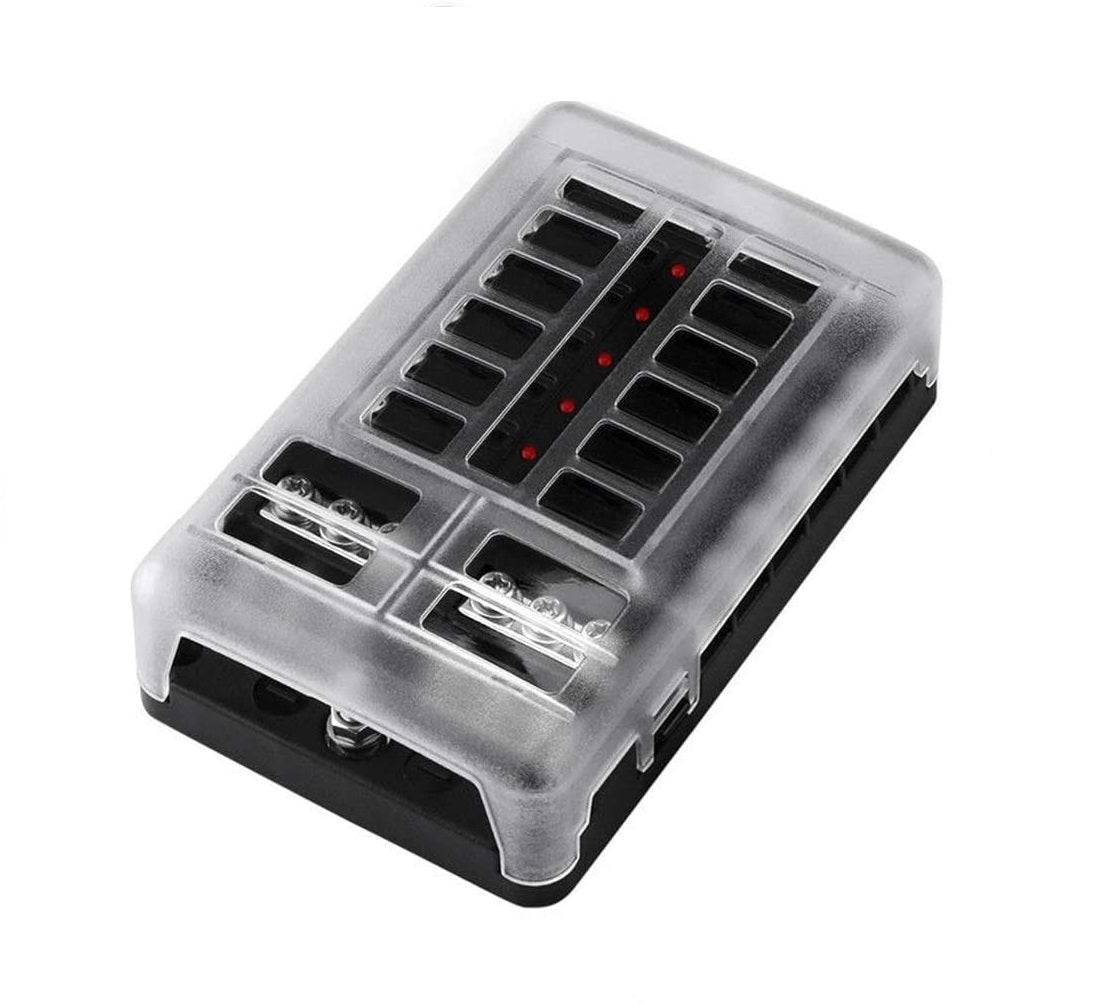

12 Way Led Fuse box with twin positive bus bars + negative bus bar

Consists of two separate banks of 6 fuses either side with screw connections.

Common feed for main positive connection

Common busbar for the negative connection.

Common negative busbar provides 12 screw connections for a common negative

Main positive connections are made by 5mm shaft dia. studs.;

Specifications + Parts

Durite Part Number 0-234-82

MaximumAmps per circuit-30Amps

NegativeCircuit: 1x common bus and 12 pole connector block.

Positiveand Negative common buses: M5 studs.

Height:50mm

Basewidth: 94mm

BaseLength: 147mm

Manuals and Guides

DATA SHEET
