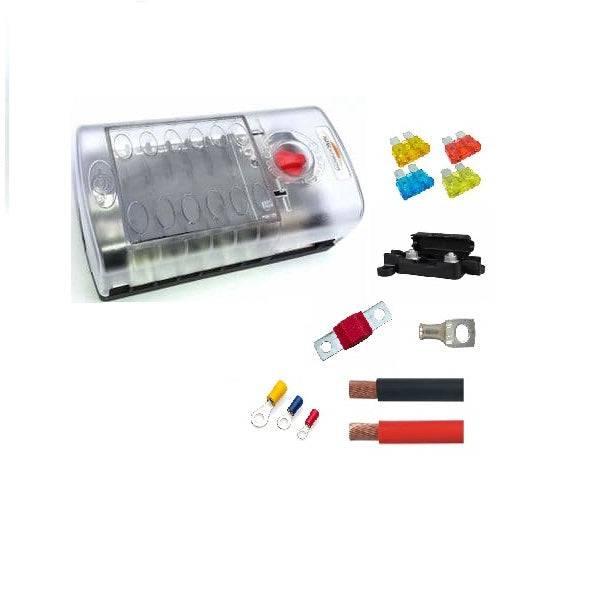

12 Way Blade Fuse Box + Negative Bus Bar with 10mm² 70amp Cable or Ready Made Leads

12 way Blade Fuse box with twin positive bus bars + negative bus bar supplied with 1mtr Red Lead + 1mtr Black Lead + mixed fuses

Simple to install fuse box distribution kit to safely supply up to 12 positive & 12 negative connections for a maximum output of 60amps

Supplied with 70amp Red positive pre made leads + 1 x 250mm Red positive fuse link leads + fuse holders and 70amp Black lead for negative / earth connections.

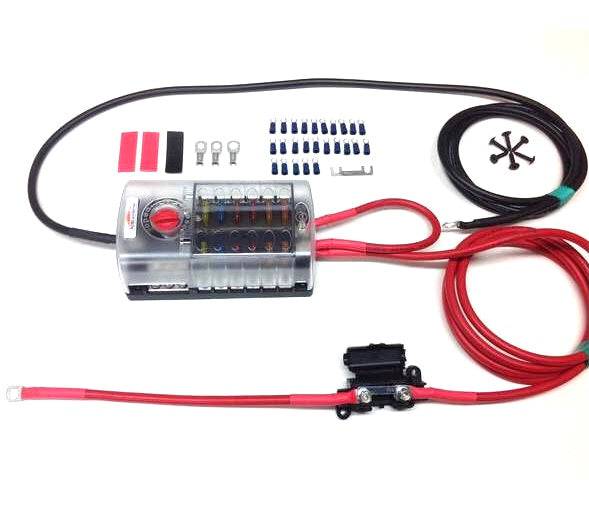

Supplied with

1 x 12-Way Fuse Box
1 x 250mm Red 70amp 10mm2 Lead with M6-M8 Terminals
1 x 1mtr Red 70amp 10mm2 Lead with M6-M6 Terminals
1 x 250mm Red 70amp 10mm2 Lead with M6-M6 Terminals (to use as positive link lead on fuse box)
1 x 1mtr Black 70amp 10mm2 Lead with M8-M6 Teminals
1 x strip link fuse holders + 2 x 60amp fuses
4 x each 5amp,10amp,+ 2 x each15amp & 20amp Blade Fuses
25 x 4mm blue insulated ring terminals
8 x screws to install fuse holders + fuse box

Fuse box Information:
Consists of two sepperate banks for up to 6 fuses with screw connections.
Each bank of fuses has a common feed for main positive connection
Common busbar for the negative connection.
Each bank of 6 fuses can have its own positive supply source.
Lid is designed to hold spare fuses.
Common negative busbar provides 12 screw connections for a common negative
Main positive connections are made by 5.3mm shaft dia. studs.
For standard Auto blade fuses

Fuse Box Details
Maximum Amps per circuit-30Amps
Maximum Amps per block-100Amps ( 200A for total unit with both banks utilised but we recommend using our heavy duty kit with 2 x 16mmË› 110amp leads for max outputs)
Maximum voltage-32Vs
Positive Circuit A: 1x common bus and 6 standard blade fuses.
Positive Circuit B: 1x common bus and 6 standard blade fuses.
Negative Circuit: 1x common bus and 12 pole connector block.
Positive and Negative common buses: M5 studs.
Sizes: L164 x W94 x H57mm
