Votronic VCC121230 12v 30amp DC DC charger Split Charge Kit Euro5/6 Camper

£276.00 GBP
Sold out

Tax included.

SKU: VCC121230RM
Please select kit length:

Please select kit length
Kit Option:

Kit Option

Product Details

High quality battery to battery charger from German electronics specialist Votronic

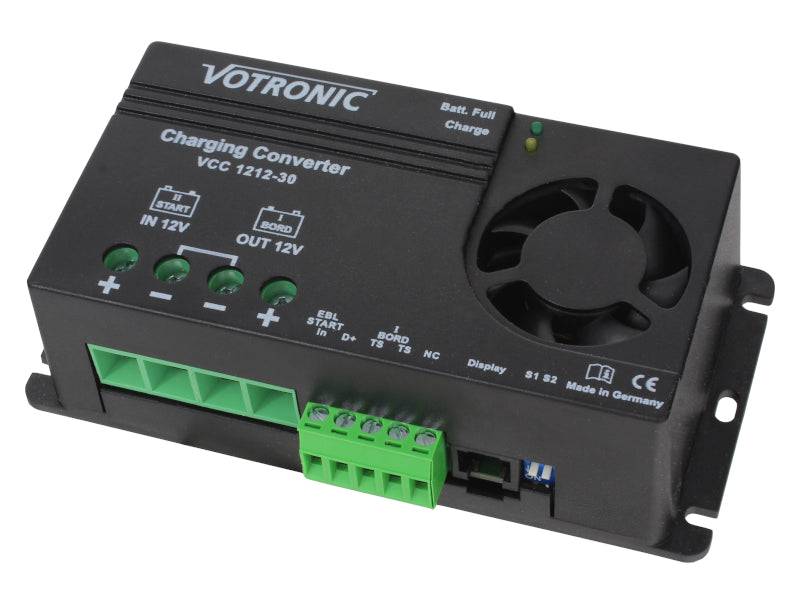

VCC 1212-30 12v 30amp battery to battery (DC-DC) charger

Battery to battery chargers are by far the best and fastest way to maintain and charge any type of leisure battery faster to a full capacity than any standard alternator charging through a conventional split charge relay.

With up to 30amps output this charger is suitable to charge any battery type including standard lead acid, Gel, AGM and newer Lithium LiFePo4 batteries from 60ah up to approx 200ah (recommended) and 260ah max

With a very compact footprint at only 146 (L) 67 (H) it is very simple to install into most locations in any vehicle where space is limited for charging your leisure battery.

Suitable for any 12v vehicle needing a good quality charger including modern Euro5 and Euro6 vehicles with smart alternators or ECU charging

Additional benefits of this charger is that if you are using a mains battery charger or have a solar input connected to the leisure battery he charger can trickle charge you main starter battery

A temperature sensor for the leisure battery is supplied so the charger will give you the very best charging voltage for the ambient temperature

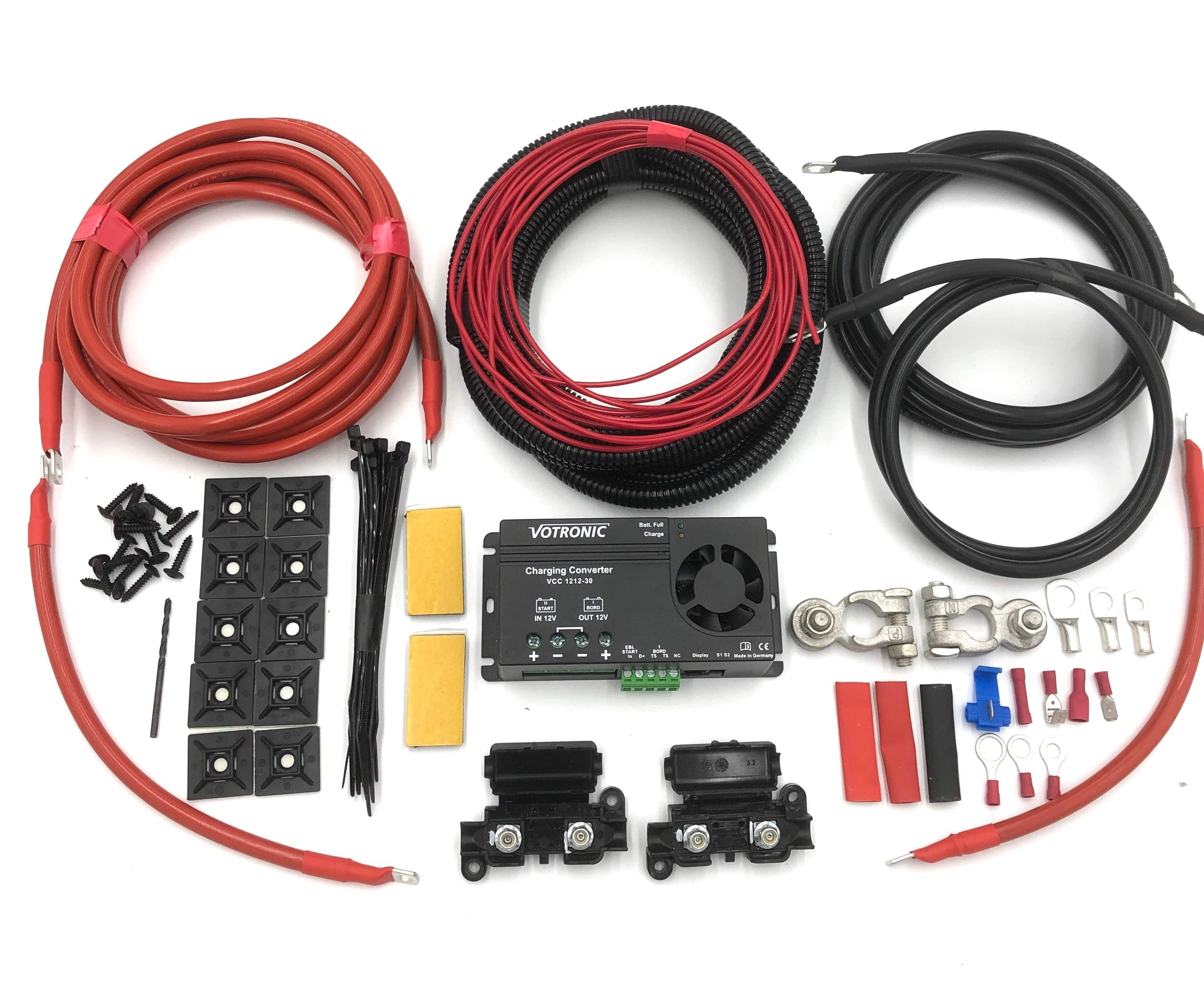

Supplied with full wiring kit for simple instalation for 30am Votronic VCC1212-30 battery to battery charger with pre crimped leads made to measure

The long Red lead in the picture will be supplied as one length that can be cut and connected into the charger to suit your instalation close to the leisure battery

Specifications + Parts List

Pre Crimped Leads Kit

  • 1 x 250mm 16mm² 110amp Red lead with M8-M6 terminals for starter battery to fuse holder
  • 1 x  1-8mtr Red 16mm2 110amp lead with M6 to M6 terminals
  • 1 x 2mtr Black 16mm2 110amp earth lead with M8 to M8 terminals
  • 1 x 250mm 16mm2 110amp Red lead with M6 to M8 terminals for fuse holder to leisure battery
  • 1 x 1000mm 16mm2 110amp Black lead with M8 to M10 terminals for your leisure battery earth
  • 2 x strip link fuse holders with 40+50amp midi fuses including spares
  • Positive and negative 8mm post type battery terminal
  • Spare copper tube terminals + heat shrink for any modifications
  • 15 x cable ties + 10 x adhesive cable tie bases
  • 2 x sticky pads
  • 15 x screws + drill bit
  • 2-10 mtrs split conduit to protect cables


Cable + Components Kit List

  • 1 x  1-8mtrs 16mm2 110amp Red Cable
  • 1 x 1-8mtrs 16mm2 110amp Black Cable
  • 2 x strip link fuse holders with 40+50amp midi fuses including spares
  • Positive and negative 8mm post type battery terminal
  • Terminal + Heat shrink pack
  • 15 x cable ties + 10 x adhesive cable tie bases
  • 2 x sticky pads
  • 15 x screws + drill bit
  • 2-8 mtrs split conduit to protect cables



Charger Specifications:

Nominal operating voltage: 12VCharging current: 0-30A

  • Battery types: suitable for any type of 12V lead acid or lithium battery
  • Min. capacity: 50Ah
  • Recommended capacity: 60-200 Ah
  • Max. capacity: 260Ah
  • Input voltage range (Euro 6+): 10.5-16.5V
  • Overvoltage disconnect (Euro 6+): 16.5V
  • Max. power consumption: 490W
  • Temperature range: -20 to +45 C
  • Ambient conditions, humidity: max. 95% RH, no condensation
  • Dimensions: 146 x 67 x 40 mm
  • Weight: 280g
  • Votronic item number 3324
  • 2 Years Warranty
