Product Details

12v 30amp Battery to battery charging systems for Campervans, motorhomes & works vehicle to charge the service / leisure battery.

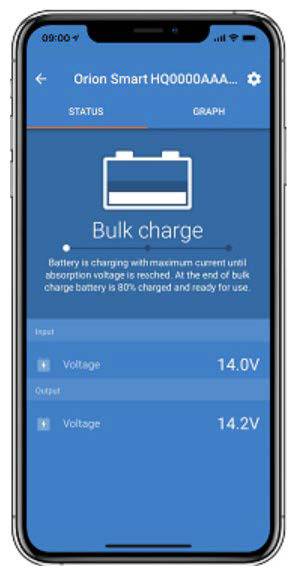

The unit can be monitored and programmed via Bluetooth using the Victron connect app on any smart phone.

Ignition controlled or use the engine running detection settings within the App.

Suitable for all lead acid and lithium batteries.

This system is supplied with pre crimped leads for a very simple instal into any motor vehicle or boat

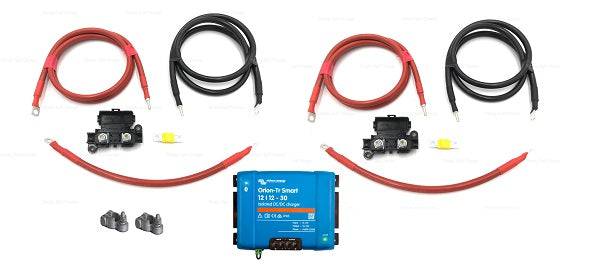

Parts List

You will be supplied with the following with this kit

Red Leads

2 x 250mm 16mm² 110amp Leads M6-M8

1 x 1m-7m 16mm² 110amp Leaf M6-Pin

1 x 1m 16mm² 110amp Lead M6-Pin

Black Leads

1 x 1m-7m 16mm² 110amp Lead M8-Pin

1 x 1m 16mm² 110amp Lead M8-Pin

1 x ORI121236120 Isolated Victron Orion TR Smart

2 x Strip Link Fuse Holders

2 x 60amp Midi Fuses

1 x Pair 8mm Battery Terminals

Specifications

Input voltage range - 10-17V

Under voltage shut down - 7V

Under voltage restart - 7,5V

Nominal output voltage - 12,2V

Output voltage adjust range - 10-15V

Output voltage tolerance - +/-0,2V

Output noise - 2mVrms

Cont.output current at nominal output voltage and 40°C - 30A

Maximum output current (10 s) at nominal output voltage minus 20% - 40A

Short circuit output current - 60A

Cont.output power at 25°C - 430W

Cont.output power at 40°C - 360W

Efficiency - 87%

Offload current - <80mA

Galvanicisolation - 200Vdc between input, output and case

Operating temperature range - -20 to +55°C (derate 3% per °C above 40°C)

Humidity - Max.95% non-condensing

DC connection - Screw terminals

Maximum cable cross-section - 16mm² (AWG6)

Height - 130mm

Width - 186mm

Depth - 80mm

Weight - 1.8Kg

Warranty - 5 Years

Part Number  - ORI121236120
