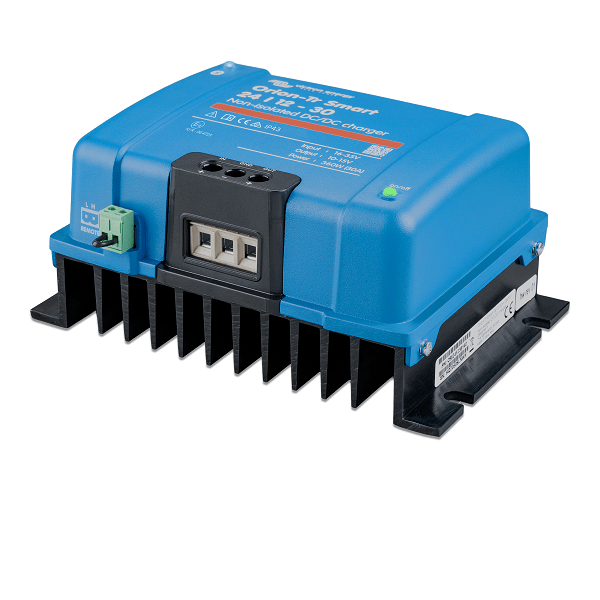

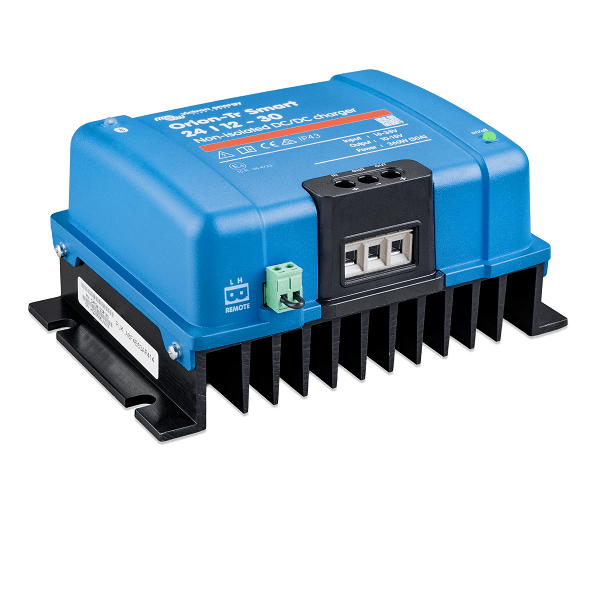

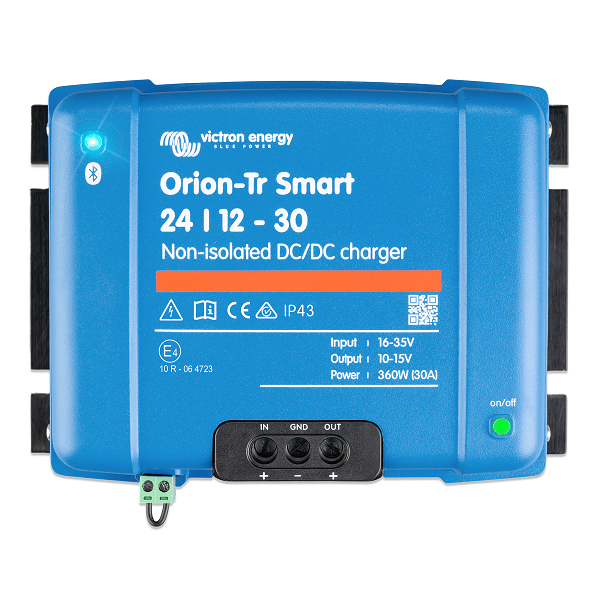

Victron Orion-Tr Smart 24/12 30A Non Isolated DC-DC Battery to Battery Charger
Choose options
Product Details
Victron Energy ORI241236140
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive3-stage charger with built-in Bluetooth.
For use in dual battery systems in vehicles or on boats where the (smart)alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth andcan be remotely controlled via a remote on/off switch and has an engine running detection mechanism.
The Orion Tr-Smart charger can be used in 12V or 24V systems and issuitable for both lead acid and lithium batteries. Models areavailable up to 400W and unlimited multiple units can be connected inparallel to increase output power.
Suitable for high temperatures up to 55°C with a full rated output up to 40°C
Features
Bluetooth Smart enabled

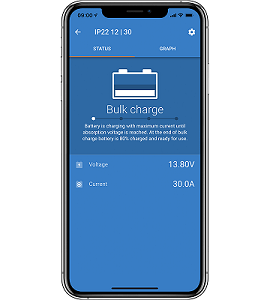

Any Bluetooth enabled smart phone, tablet or other device can be used to monitor, to change settings and to update the charger when new software features become available.
Fully programmable
-Battery charge algorithm (configurable) or fixed output.
-Smart alternator compatibility: engine running detection mechanism.
Adaptive3-stage charge algorithm: bulk – absorption – float
-For lead acid batteries it is important that during shallow discharges the absorption time is kept short in order to preventovercharging of the battery. After a deep discharge the absorptiontime is automatically increased to make sure that the battery iscompletely recharged.
-For lithium batteries absorption time is fixed, default 2 hours.
-Alternatively, a fixed output voltage can be chosen.
Remote on-off
A remote on/off switch or relay contact can be connected to a two-poleconnector. Alternatively, the H terminal (right) of the two-poleconnector can be switched to battery plus, or the L terminal (left)of the two pole connector can be switched to battery minus (or thechassis of a vehicle, for example).
All models are short circuit proof and can be paralleled to increaseoutput current
An unlimited number of units can be connected in parallel.
High temperature protected
The output current will reduce at high ambient temperature.
IP43protection
When installed with the screw terminals oriented downwards.
Screw terminals
No special tools needed for installation.
Input fuse (not replaceable)
Specifications
Input voltage range 20-35v
Under voltage shut down 14v
Under voltage restart - 15v
Nominal output voltage - 12,2V
Output voltage adjust range - 10-15V
Output voltage tolerance -+/-0,2V
Output noise - 2mVrms
Cont.output current at nominal output voltage and 40°C - 30A
Maximum output current (10 s) at nominal output voltage minus 20% -40A
Short circuit output current - 60A
Cont.output power at 25°C - 430W
Cont.output power at 40°C -360W
Efficiency -87%
Offload current -<80mA
Galvanicisolation -200Vdc between input, output and case
Operatingtemperature range --20to +55°C (derate 3% per °C above 40°C)
Humidity -Max.95% non-condensing
DC connection -Screw terminals
Maximum cable cross-section -16mm² (AWG6)
Height -130mm
Width - 186mm
Depth -80mm
Weight - 1.8Kg
Warranty - 5 Years
Part Number - ORI241236140
