Victron Orion Tr Smart 12V 30A Non Isolated DC-DC B2B Split Charge Kit
Please select kit length
Choose options
Please select kit length
Please select kit length
Product Details

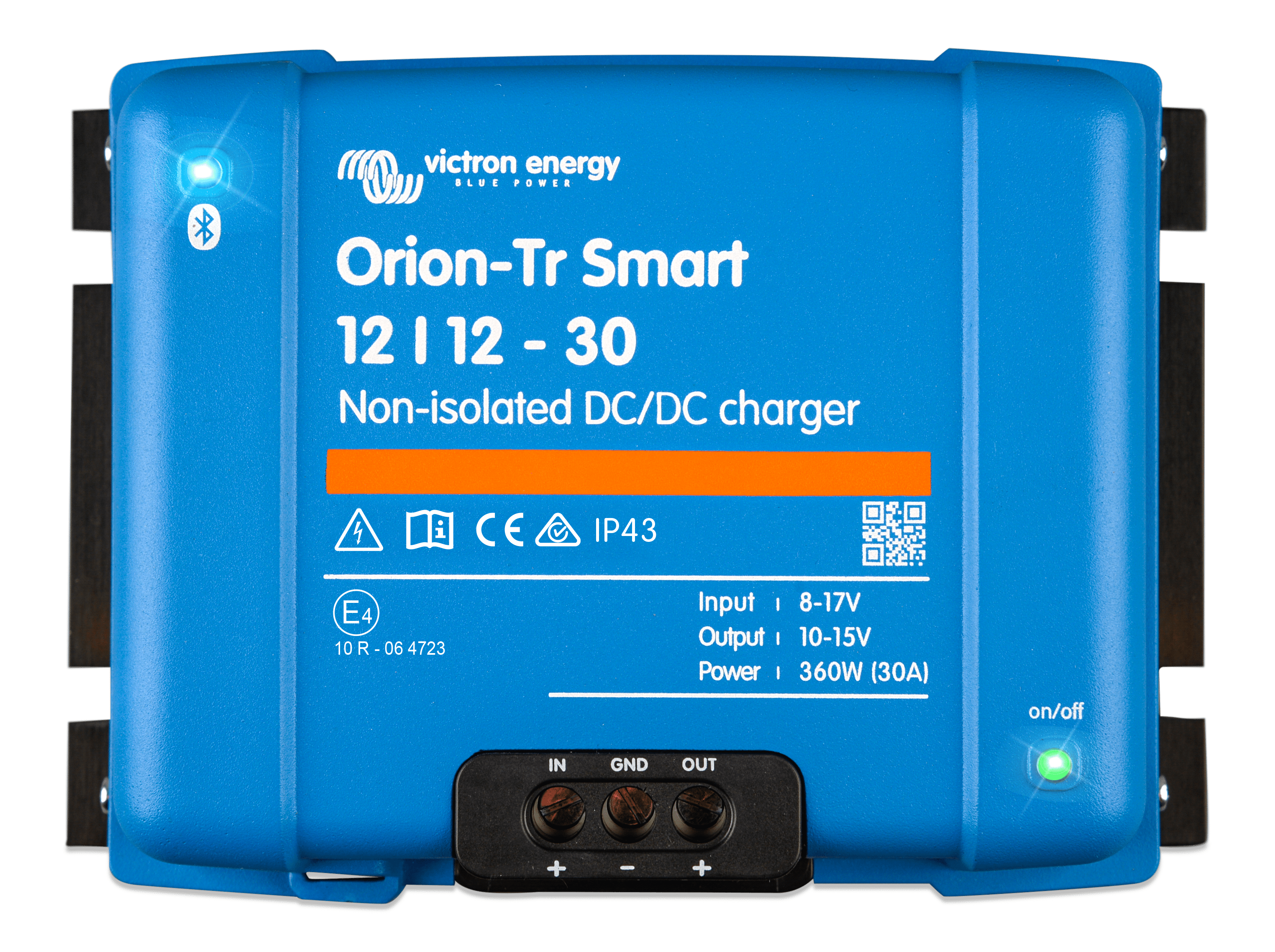

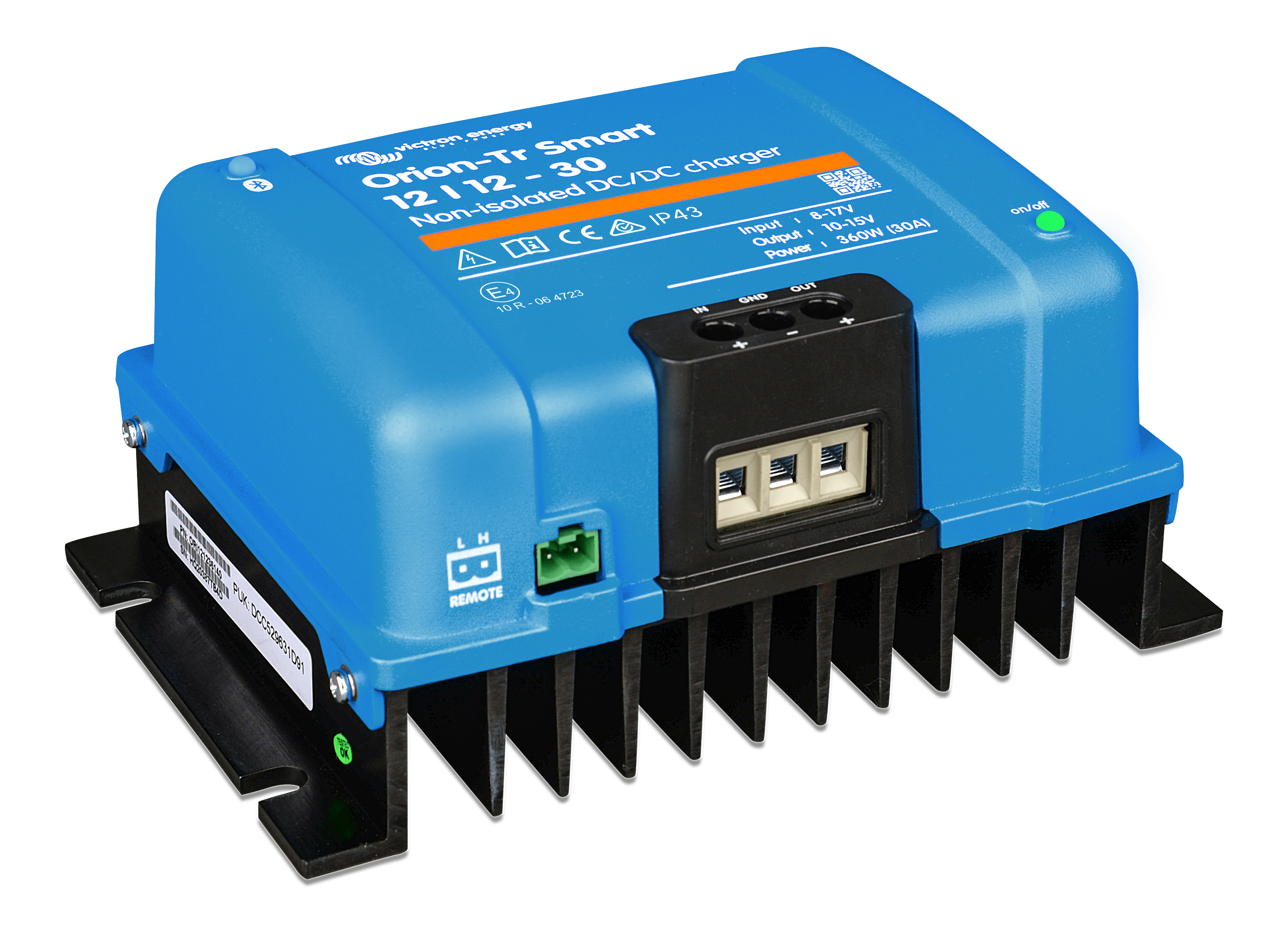

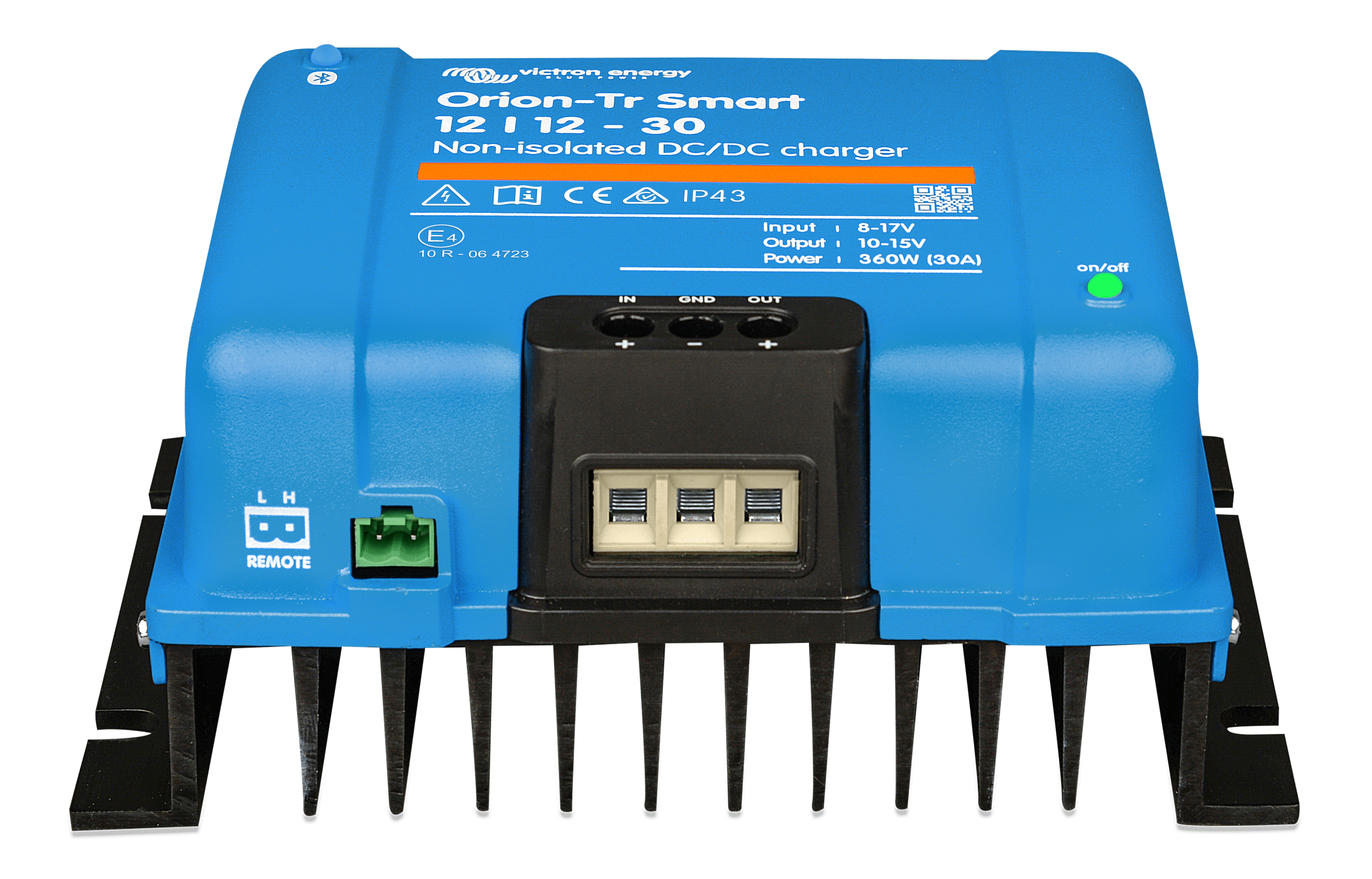

Victron Orion-Tr Smart DC-DC charger is a professional DC to DC split charge system
12v 30amp Battery to battery charging systems for Campervans, motorhomes & works vehicle to charge the service / leisure battery.

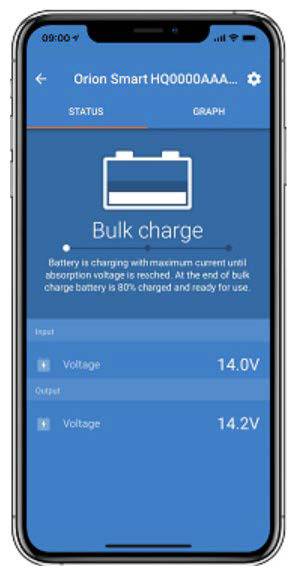

The unit can be monitored and programmed via Bluetooth using the Victron connect app on any smart phone.
Ignition controlled or use the engine running detection settings within the App.
Suitable for all lead acid and lithium batteries.
This system is supplied with pre crimped leads for a very simple instal into any motor vehicle.
Parts List

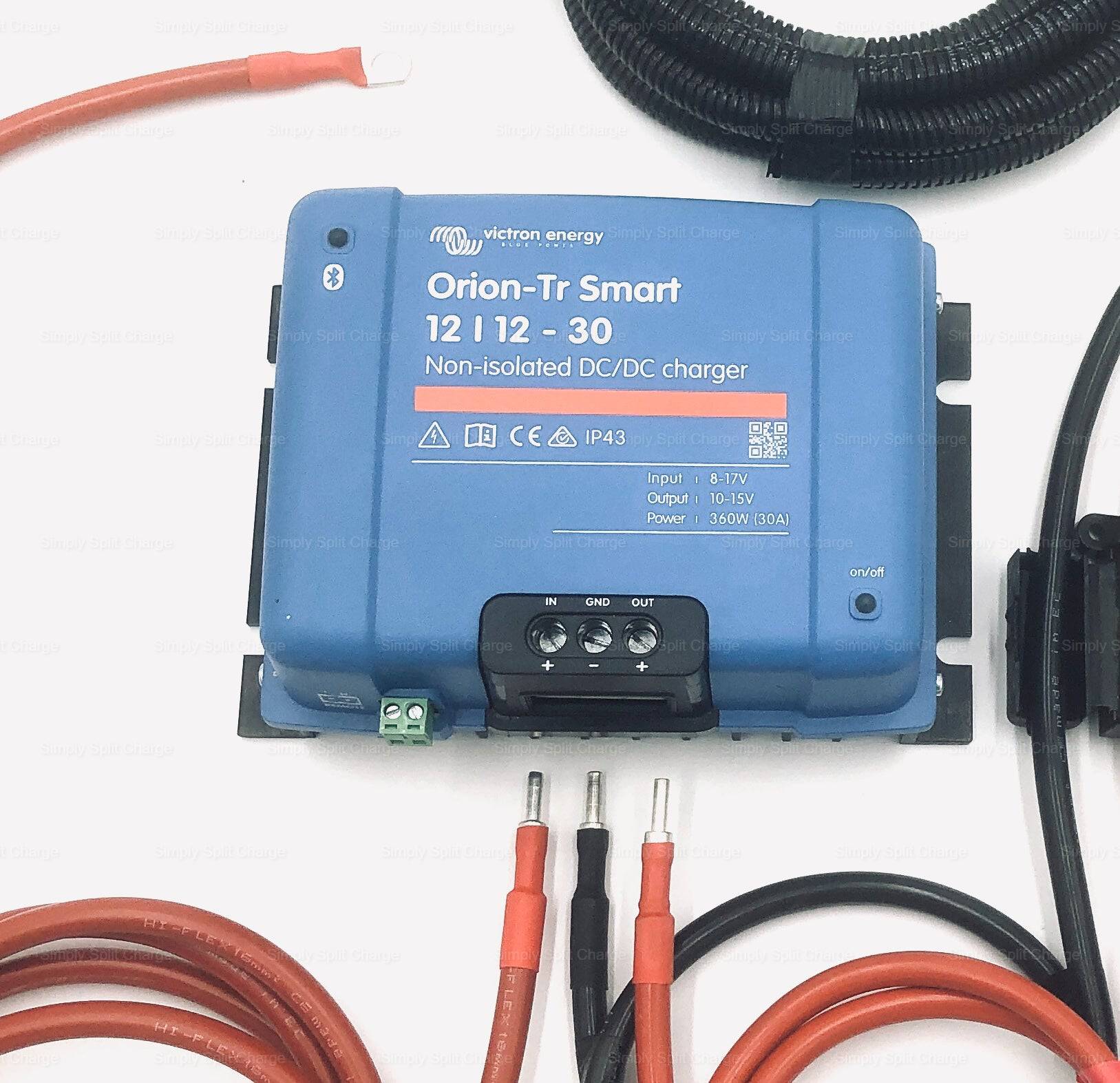

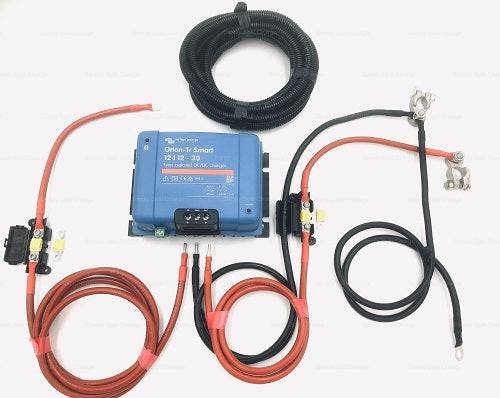

You will be supplied with the following with this kit
1 x Victron Orion 12v 30amp Non isolated Charger

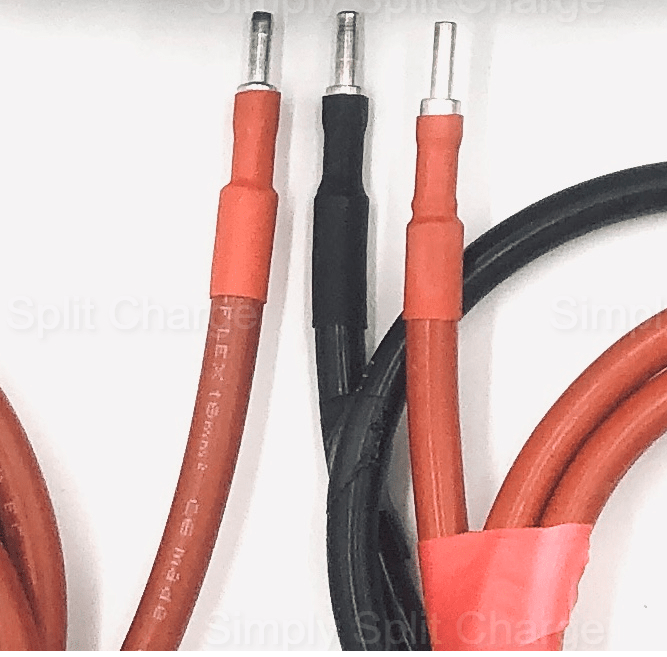

1 x 250mm Red 16mm² 110amp Starter battery to fuse link lead M8-M6 terminals
1 x 1000mm - 7000mm 16mm² 110amp Red Starter battery fuse link to charger Lead Pin - M6 terminals
1x 500mm 16mm² 110amp Red Charger to leisure battery fuse link Lead Pin - M6
1 x 250mm Red 16mm² 110amp Leisure battery to fuse link lead M8-M6 terminals
1 x 1mtrs 16mm² 110amp Black leisure battery to chassis/ground Lead M8 - M10
2-8mtrs 13mm Split Conduit
2 x Midi Fuse Holders + recommended midi fuses including spares
1 x Pair 8mm Post Type Battery Terminals
Spare Crimp Teminals
Spare Heat Shrink
Cable Ties
Screws + Dril Bit
Wiring Diagram
PLEASE NOTE THE TOTAL LENGTH OF THIS KIT IS MADE UP WITH FOUR RED LEADS
For example
A 3m Kit you will be supplied with 2 x 250mm + 1 x 500mm + 1 x 2000mm red leads making the total kit length to 2m
A 5m Kit you will be supplied with 2 x 250mm + 1 x 500mm + 1 x 4000mm red leads making the total kit length to 5m
A 8m Kit you will be supplied with 2 x 250mm + 1 x 500mm + 1 x 7000mm red leads making the total kit length to 5m
Specifications
Input voltage range - 10-17V
Under voltage shut down - 7V
Under voltage restart - 7,5V
Nominal output voltage - 12,2V
Output voltage adjust range - 10-15V
Output voltage tolerance - +/-0,2V
Output noise - 2mVrms
Cont.output current at nominal output voltage and 40°C - 30A
Maximum output current (10 s) at nominal output voltage minus 20% - 40A
Short circuit output current - 60A
Cont.output power at 25°C - 430W
Cont.output power at 40°C - 360W
Efficiency - 87%
Offload current - <80mA
Galvanicisolation - 200Vdc between input, output and case
Operating temperature range - -20to +55°C (derate 3% per °C above 40°C)
Humidity - Max.95% non-condensing
DC connection - Screw terminals
Maximum cable cross-section - 16mm² (AWG6)
Height - 130mm
Width - 186mm
Depth - 80mm
Weight - 1.8Kg
Warranty - 5 Years
Part Number - ORI121236140
