Sterling Power BBS1230 12v 30amp + Solar MPPT Battery to Battery DC-DC Charger kit
Please select kit length
Kit Option
Choose options
Please select kit length
Kit Option
Please select kit length
Kit Option
Product Details
The new combined battery to battery charger and solar regulator maximises the operational usage of the battery to battery charger. It does this by adding a solar operation to the product both when the vehicle is in motion and moreover when the vehicle is stationary. This makes it, in effect, also a free 350W solar regulator when the vehicle is stationary. The open circuit voltage of the solar panels can be as high as 31V. This encompasses the majority of 12V nominal solar panels.
This product has all the benefits of the standard 30A Battery to Battery charger when the engine is on.
Sterling's range of Battery to Battery Chargers (B2Bs) has grown significantly over the past few years. This is in an effort to supplement the ever growing demand from the commercial vehicle, recreational vehicle and marine industries. The B2Bs have become extremely popular as they fast charge batteries as you cruise along without the need for complex wiring, touching your alternator, voiding the alternator's warranty and tampering with the electronic control units (ECUs). You can provide the onboard batteries with a fast 4 stage charging profle with a very simple and speedy installation. All of the benefits of advanced charging without any of the drawbacks. Simply connect the B2B between the battery being charged and the battery you wish to charge.

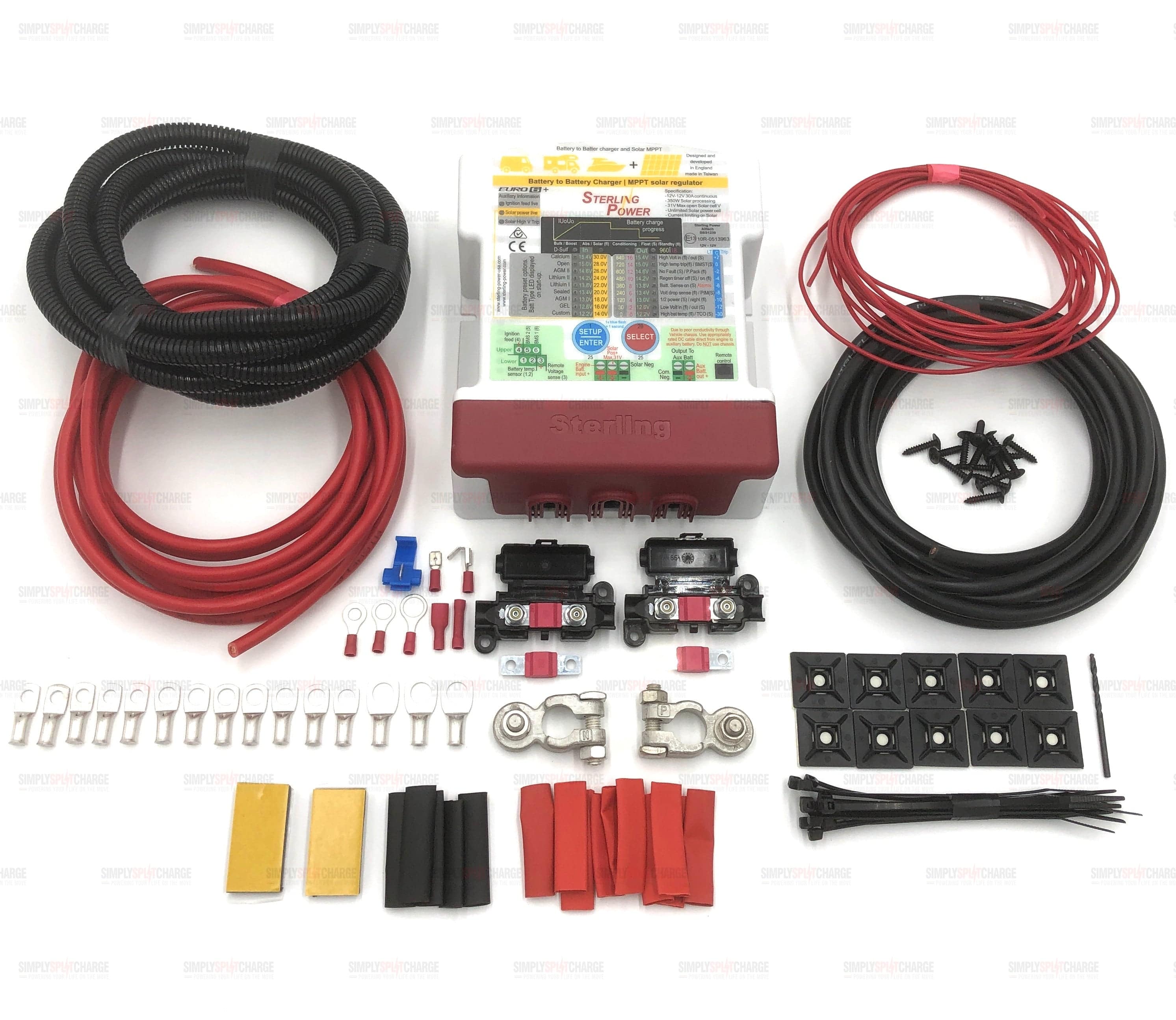

You will be supplied with everything needed to install this kit with either cable and components to make up yourself or with the leads pre made for a simpler install
Please select kit option above for either a cable and component kit to make the leads up yourself or a kit with pre made leads for a simple install without the need for expensive crimping tools.
Parts List
Cable + Components Option
- BBS1230 12v 30amp battery to battery charger
- 1-10m 110amp 16mm Cable
- 1-10m 110amp 16mm Cable
- 5-10mtrs 1.5mm Red Cable ( Optional Ignition Live feed )
- 1 x pair 8mm post type battery terminals
- 2 x strip link fuse holders
- 4 x 50amp midi fuses
- Terminals + heat shrink
- 10 x cable tie bases
- 15 x cable ties
- 2 x sticky pads to use on fuse holders if required
- 15 x 8x3/4 screws
- 1 x 3mm drill bit
- 1-10mtrs black conduit to protect cable
- wiring instructions plus after sales support if required
Pre Made Leads Option
- BBS1230 12v 30amp battery to battery charger
- 1 x 250mm red 110amp 16mm starter battery to fuse holder lead (M8 to M6) terminals
- 1 x 1-10mtr red 110amp 16mm fuse holder to charger lead (M6 to M6) Terminals
- 1 x 250mm red 110amp 16mm fuse holder to leisure battery (M8 to M6) terminals
- 1 x 1-10m black 110amp 16mm earth lead for charger (M10 to M8) terminals
- 1 x 1m black 110amp 16mm earth lead for leisure battery (M8 to M10) terminals
- 5-10m 1.5mm Red Cable ( Optional Ignition Live feed )
- 1 x pair 8mm post type battery terminals
- 2 x strip link fuse holders
- 4 x 50amp midi fuses
- 1 x pack spare terminals + heat shrink
- 10 x cable tie bases
- 15 x cable ties
- 2 x sticky pads to use on fuse holders if required
- 15 x 8x3/4 screws
- 1 x 3mm drill bit
- 1-10m black conduit to protect cable
- wiring instructions plus after sales support if required
The two long red leads in the pre made lead option will be supplied as one long lead in your kit with terminals to suit the fuse holders on each end.

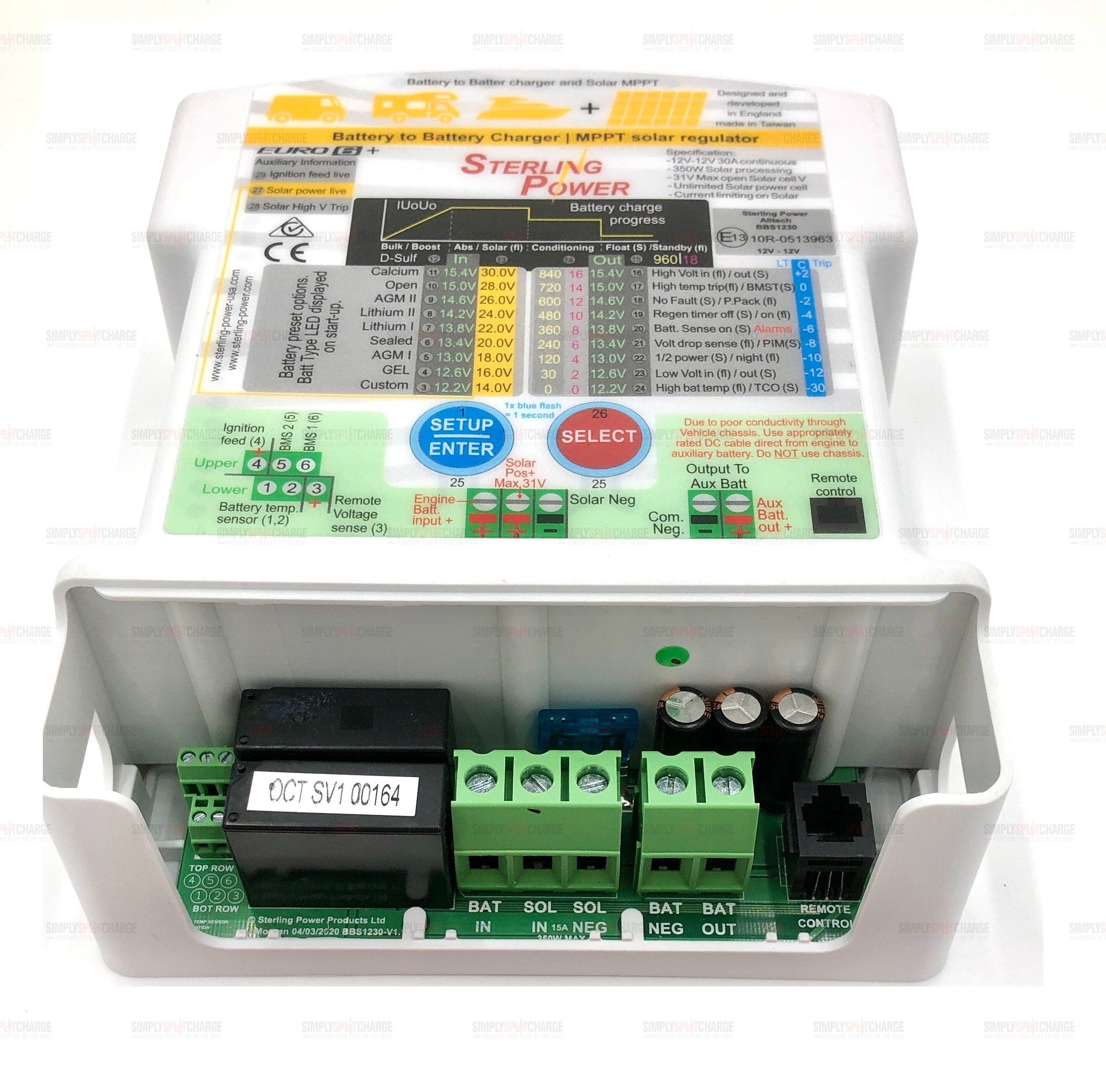

This lead will simply need to be cut to suit the location of where the battery charger will be fitted as the connections to the BB1230 are via a screw type connections.
If you would like me to supply the lead in two parts please just add a note to your order with the measurements needed and we will supply them as required.
We can offer this kit to any specification to suit any vehicle. Please contact us for more details
Specifications
-
Multiple Activation Modes:Automatic for most non vehicle applications,
-
Manual for remote activation.
-
Regenerative braking(requiring ignition feed),
-
Automatic regenerative braking, requiring no ignition feed.
-
Current is NOT taken from the input battery and given to the output battery. The B2B uses alternator power to charge the output battery.
-
Manual mode and regenerative braking mode allows you to override this.
Safety features:
-
100% fire proof plastic box.
-
No screws to corrode.
-
Thermal power reduction.
-
Multi stage fan cooling
-
Night Time Setting:Allows the unit to ran at half the power so the fan noise is kept down.
-
Boost / Reduce Charging:The B2Bs ensure batteries get the correct charging profile irrespective of high or low input voltages.
-
B2B turns on at 13.3V and turns off at 13.0V. Thus, does not drain input battery. Regenerative braking mode allows the input voltage to drop to 12.2V.
-
Customisable Profile: Choose your own charging profile on the front panel.
-
preset battery chemistry options: Including AGM, LiFePO4, Gel, Flooded and sealed lead acid.
-
4 stage battery charging:The B2B charges batteries between 5-20 times faster than a stand alone alternator.
-
Very Simple to install: No electronic Control Unit (ECU) issues. No complex wiring. No warranty issues. Fully prepared for smart alternators (regenerative braking).
-
Remote control optional.
