Sterling Power BB241235 35amp 24V-12V DC Battery to Battery Charger - Simply Split Charge

Sterling Power

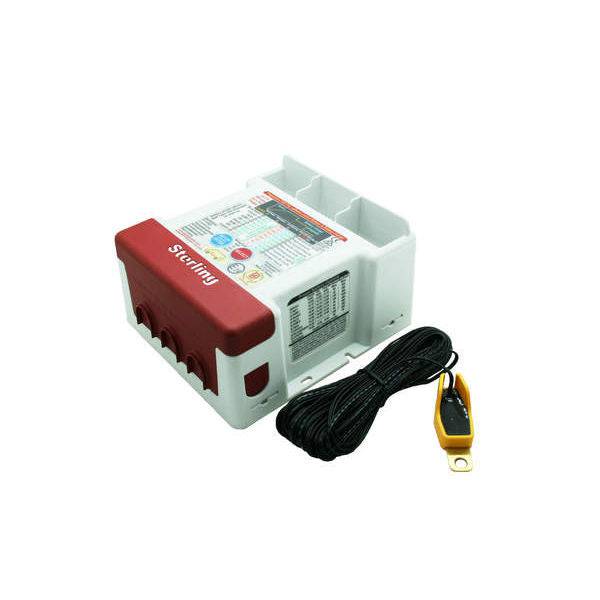

Sterling Power BB241235 35amp 24V-12V DC Battery to Battery Charger

£428.00 GBP

Price Includes VAT.

SKU: BB241235
In stock
Quantity:

Product Details

Simple and effective way to charge a 12v battery bank from a 24v vehicle charging system achieving up to a 35amp 12v output.

Sterling's range of Battery to Battery Chargers (B2Bs) has grown significantly over the past few years. This is in an effort to supplement the ever growing demand from the commercial vehicle, recreational vehicle and marine industries.

Suitable for all modern vehicles including Mercedes Blue Efficiency Sprinters,VW T5 and T6 Blue motion and Fords Econetic Transits. The B2Bs havebecome extremely popular as they fast charge batteries as you cruisealong without the need for complex wiring, touching your alternator voiding the alternator's warranty and tampering with the electronic control units (ECUs).

You can provide the onboard batteries with a fast 4 stage charging profile with a very simple and speedy installation. All of the benefits of advanced charging without any of the drawbacks.

Simply connect the B2B between the battery being charged and the battery you wish to charge.

Specifications + Parts List

MultipleActivation Modes: Automatic for most non vehicle applications,

Manual for remote activation.

Regenerativebraking (requiring ignition feed),

Automatic regenerativebraking, requiring no ignition feed.

Current is NOT taken fromthe input battery and given to the output battery. The B2B usesalternator power to charge the output battery. Manual mode andregenerative braking mde allows you to override this.

Safetyfeatures:

100% fire proof plastic box.

No screws tocorrode.

Thermal power reduction.

Multi stage fancooling

Night Time Setting: Allows the unit to ran at half thepower so the fan noise is kept down.

Boost / Reduce Charging:The B2Bs ensure batteries get the correct charging profileirrespective of high or low input voltages.

B2B turns on at13.3V and turns off at 13.0V (x 2 for 24V). Thus, does not draininput battery. Regenerative braking mode allows the input voltage todrop to 12.2V (x 2 for 24V).

9) Customizable Profile: Chooseyour own charging profile on the front panel.

9 preset batterychemistry options: Including AGM, LiFePO4, Gel, Flooded and sealedlead acid.

4 stage battery charging: Thge B2B chargesbatteries between 5-20 times faster than a stand alonealternator.

Very Simple to install: No electronic Control Unit(ECU) issues. No complex wiring. No warranty issues. Fully preparedfor smart alternators (regenerative braking).

Remote controloptional.
