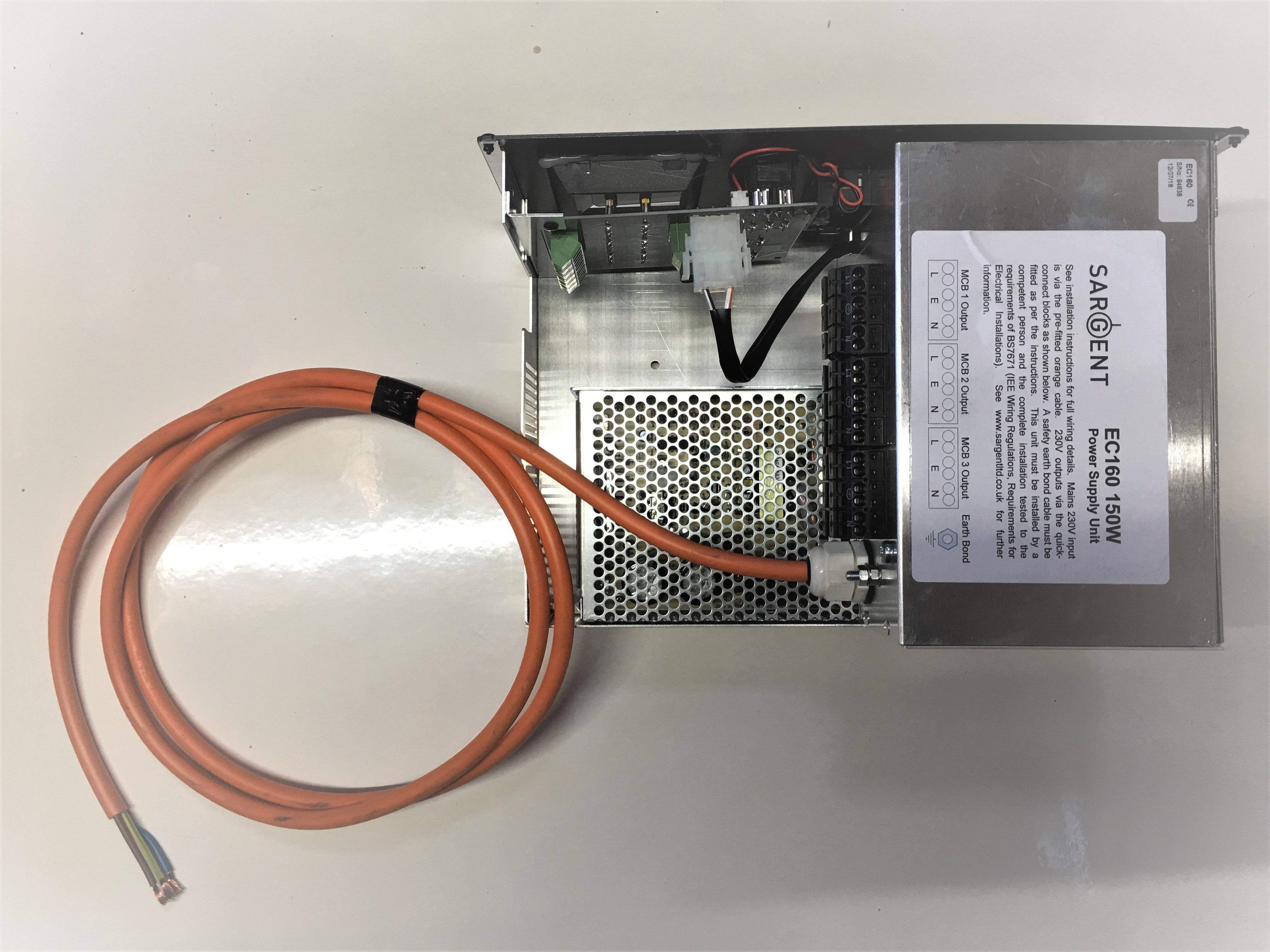

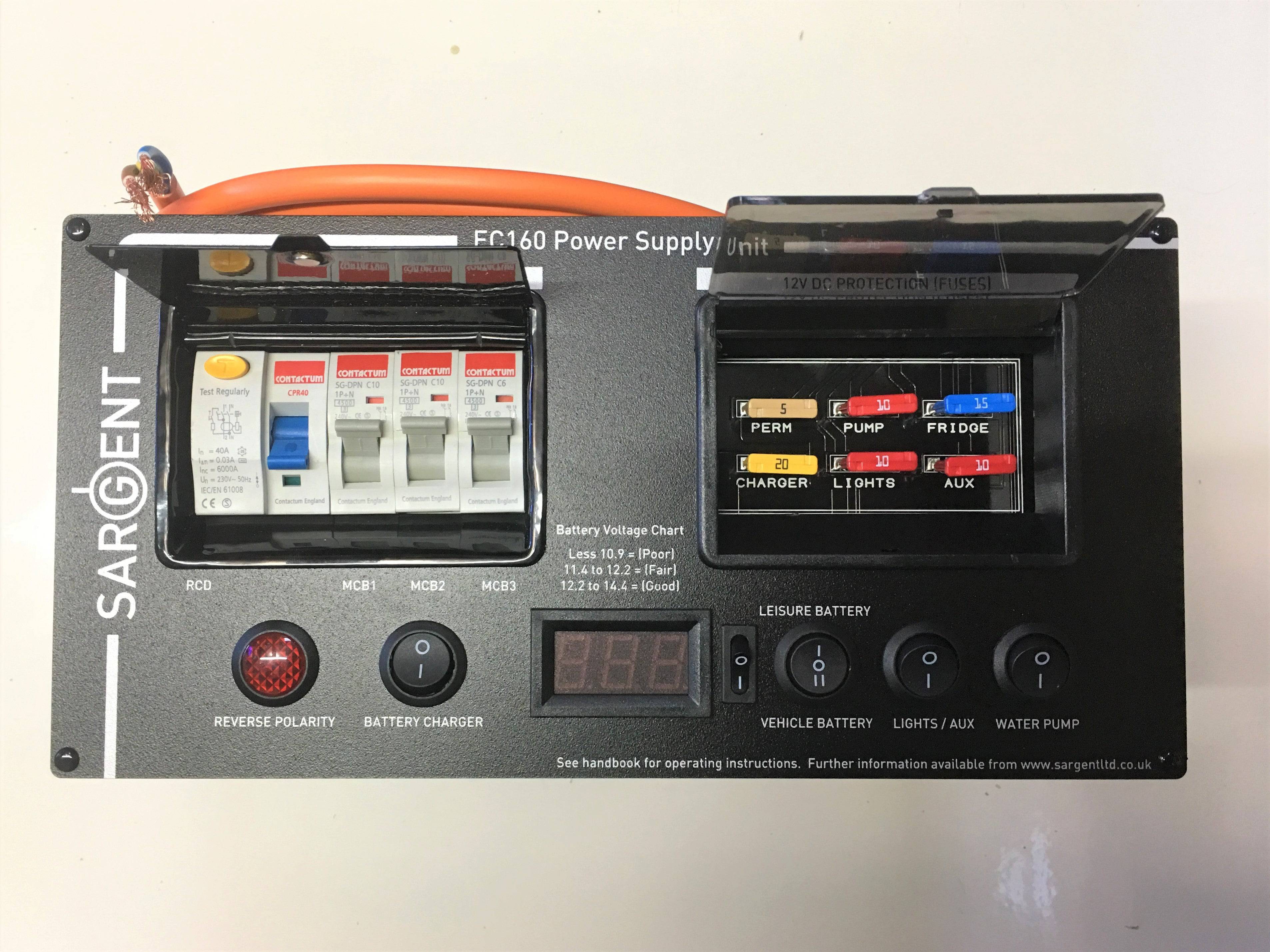

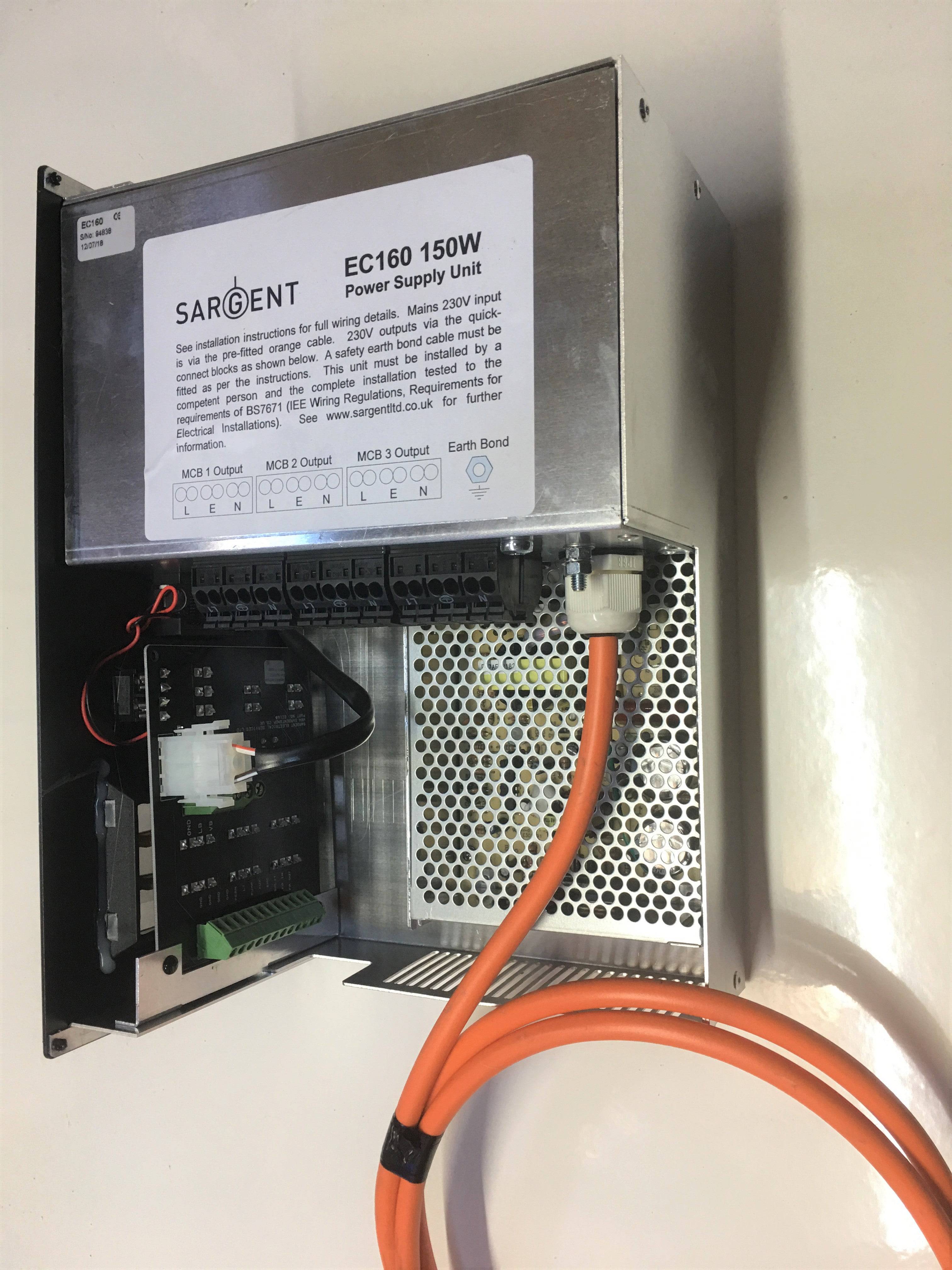

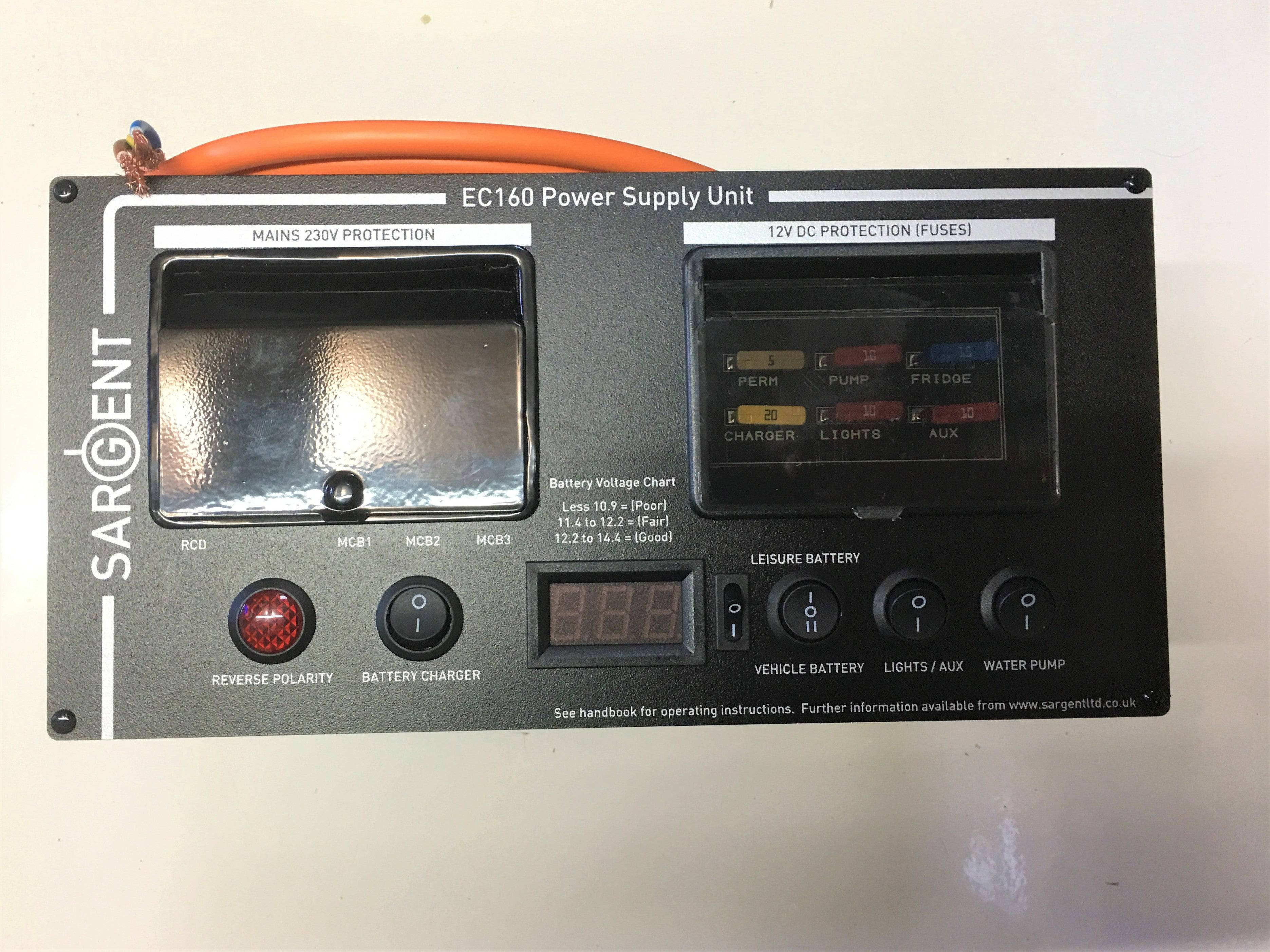

Sargent EC160 Management System 240V / 12V Hook up System + Battery Charger
Choose options
EC160 power management system suitable for horsebox, caravan and motorhome installations for split charging, mains hook up, mains charging and 12v fused outputs
Easy to install and very easy to operate.
230v AC:16A input via wired 2m lead, RCD protected with reverse polarity indication.
Build in 150w 13.8v fixed voltage battery charger with on/off switch.
3 x 10A MCB outputs via quick fit connector blocks.
12v DC: 2 x 15A battery inputs via screw terminal block.
5 x outputs via screw terminal black.
Pump output via Pump switch and 5A fuse.
Lights output via lights/Aux switch and lights 10A fuse.
Aux output via Light/Aux switch and Aux 10A fuse.
Permanent output via 5A fuse.
Fridge output VA 15A fuse.
Built in split charge relay(configurable).
Built in EMC isolation relay(configurable).
Digital voltmeter with on/off switch.
Dimensions:
FrontPanel 300x 150mm
Panel Cut Out 285 x 132mm
Depth 200mm
