Product Details

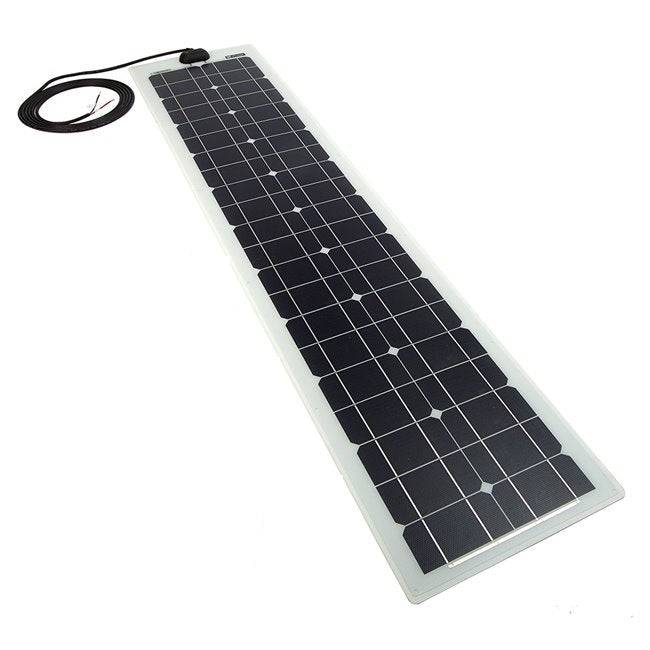

This 60w PV Logic solar panel roof and deck top kit enables the solar panel to be professionally fitted to the roof of a caravan, motorhome or yacht. Benefitting from a two year product warranty, the 60w solar panel is often a standard fit for caravan and campervan manufacturers and delivers up to 390wh per day.

Benefit from the semi-flexible panel's self-healing top surface

TheETFE top layer gives the PV Logic flexi extra resilience in really tough conditions. ETFE has a memory effect or self-healing capacity in the event the panel comes into contact with branches etc, thus ensuring any slight abrasions are ‘healed’ within a few hours.The flexi range can even be walked on with soft deck shoes! During production the ETFE is dimpled to further protect the panel and provide an anti-slip surface, particularly useful if the panel is fitted to a boat deck.

Completely waterproof

Each panel is assembled to ensure complete encapsulation. This ensures the six layer heavy duty laminate protects the solar cell circuit from extreme conditions. The junction box is also injected with special silicon, guaranteeing no water ingress.

Cells protected from hot spots

Where used on a camper van or boat, partial shading of a solar panel is typical. In these circumstances, heat build-up and damaging hot spot scan occur leading to a significantly reduced life cycle of the panel.The larger 60w and above PV Logic flexi panels have up to two shading diodes housed within the fully waterproof junction box to prevent this occurrence.

Superior design

There are no square edges on a PV Logic flexi solar panel! Rounded panel corners and a unique curved junction box provide superior adhesion, no snag lamination and no sharp edges. The junction box is mechanically fixed in addition to being bonded to the panel. Strain relief is provided for the fitted 4m UV stabilised PV cable ensuring it cannot be accidentally pulled from the junction box.

Specificaitons

Size 1450 x 315 x 4mm

Weight(Kg) 3.00

*Watts per day (W) 360

*Amp hours per day (A) 20.22

Charge controller 10Ah Vmp

(VDC)nominal voltage 17.8

(A)nominal current 3.37

Voc 22.1

(A)short circuit current 3.64

150W Flexi Solar Panel

*Watts and Amp hours/day based on six hours of average daily peak sunshine hours. Above specification at standard test conditions (STC)1000w/m2, Cell Temp 25c

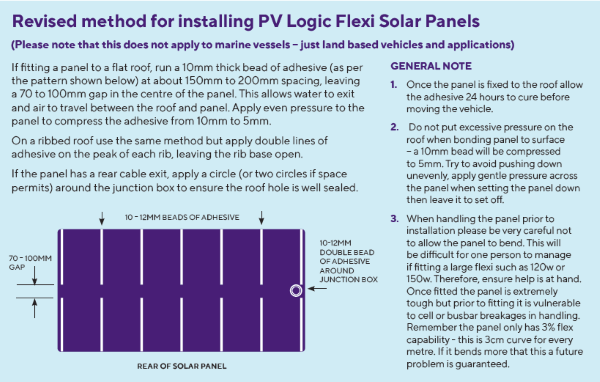

Installation method

Please only use the glue pattern below (this is covered in more detail in the instructions), which ensures air flow under the panel is achieved preventing heat build-up and potential warping under extreme heat.
