Photonic Universe 60amp Battery to Battery Charger - Solar MPPT Kit

Camper van wiring system that uses the very popular DC1212-6045 12v 60amp battery to battery charger with bulit in 45amp solar mppt

You will be supplied with everything needed to connect this system into your vehicle to charge any leisure battery type including Lead acid, AGM, Gel and Lithium

This system is supplied with the following items

DC1212-6045 Battery to battery charger + 8m wiring kit

200-400w Solar Panels with 5m 6mm² solar cable

Please see addition info in specifications for solar panel dimentions.

12 way fuse box kit

You will need to select the solar panel size and mounting option from the menu above to suit your installation if required.

You will be supplied with the following items

1 x Photonic Universe DC1212-6045 12v 60amp Battery to Battery Charger
1 x 200-400 Watt Solid Framed Solar Panel (Please Select Option Above)

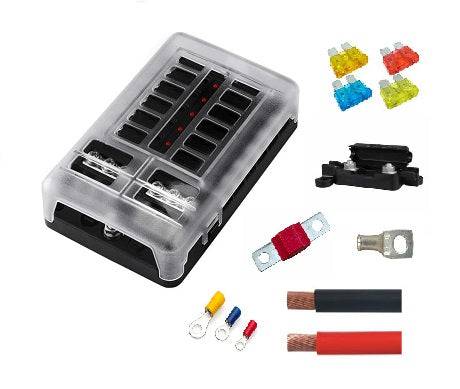

1 x 12 Way Fuse Box

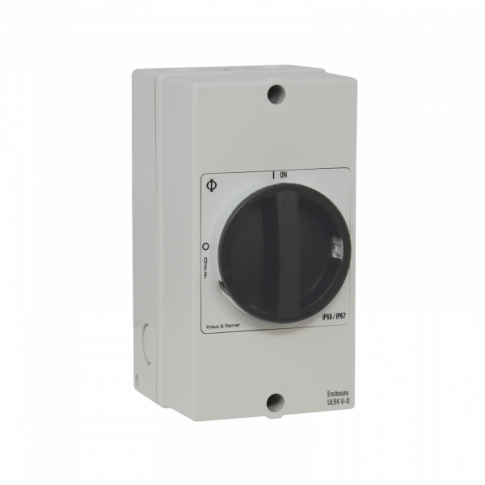

1 x Solar Isolator

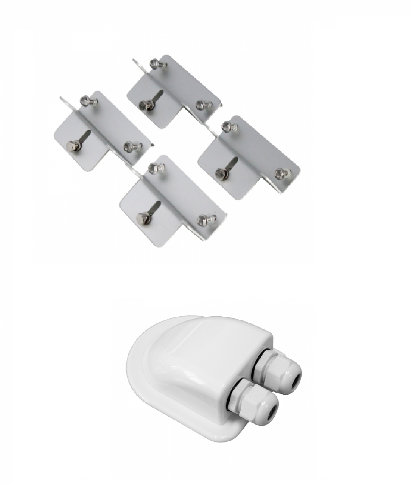

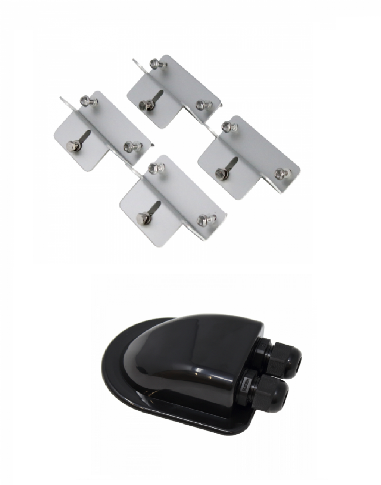

1 x Solar Fitting Kit (Please Select Option Above)
8m 25mm Red Battery Cable
3m 25mm Black Battery Cable
2m 16mm Red Cable
2m 16mm Black Cable
2 x Mega Fuse Holder
1 x Midi Fuse Holder
1 x Fuse Pack
1 x Terminal Pack
1 x Battery Terminals + Covers
8m Conduit for 16mm Cable
2m Conduit for 16mm Cable

DC12121-6035 Specifications
Source battery voltage: 12V
Battery input voltage: 10.5V - 16V
Effective D+ signal voltage range: 8V - 16V
Maximum charging power: 780W
Maximum charging current of target battery: 60A
Maximum solar power input power: 620W
Maximum solar power input current: 35A
Maximum solar power open circuit voltage: 50V
Maximum charging current from solar to target battery: 45A
Charging current to source battery: 0A - 5A
Minimum recommended source battery capacity: 80Ah - 100Ah
Target rated voltage: 12V (Lead acid, AGM, GEL), 12.8V (LiFePO4), 11.1V (Li-ion)
Target battery capacity: 100Ah - 520Ah
Target battery operating voltage range: 8V - 16V
Bulk charge voltage: 14.7V (AGM), 14.3V (GEL) 14.4V (Lead Acid), 13.9-14.6V (LiFePO4), 12.6V (Li-ion)
Float charge voltage: 13.5V (AGM), 13.8V (GEL) 13.5V (Lead Acid), 13.8V (LiFePO4), 12.5V (Li-ion)
Temperature compensation: -3mV/°C/2V
Operating temperature: -20°C to 50°C
Self-consumption current: 17mA
Relay signal output: 12V / 1A
Weight: 1.60kg
Dimensions: 190 x 215 x 70mm

Solar panel specifications:

200w Solar Panel
Peak power: 200W
Maximum power voltage: 22.45V
Maximum power current: 8.91A
Open circuit voltage: 26.29V
Short circuit current: 9.41A
Power allowance range: +/- 3%
Dimensions: 1480 x 670 x 30mm
Weight: 10.5 kg
2 x 60cm of high quality single core solar cable 4.0mm cross section
Male and female MC4 connectors

300w Solar Panel
Peak power: 300W
Maximum power voltage: 34.53V
Maximum power current: 8.69A
Open circuit voltage: 41.83V
Short circuit current: 9.25A
Power allowance range: +/- 3%
Dimensions: 1650 x 880 x 35mm
Weight: 15.5 kg
4 mounting holes
2 x 60cm of high quality single core solar cable 4.0mm cross section
Male and female MC4 connectors

400w Solar Panel
Peak power: 400W
Maximum power voltage: 30.98V
Maximum power current: 12.91A
Open circuit voltage: 37.10V
Short circuit current: 13.80A
Power allowance range: +/- 3%
Dimensions: 1722 x 1134 x 30mm
Weight: 21.0 kg
2 x 60cm of high quality single core solar cable 4.0mm cross section
Male and female MC4 connectors
