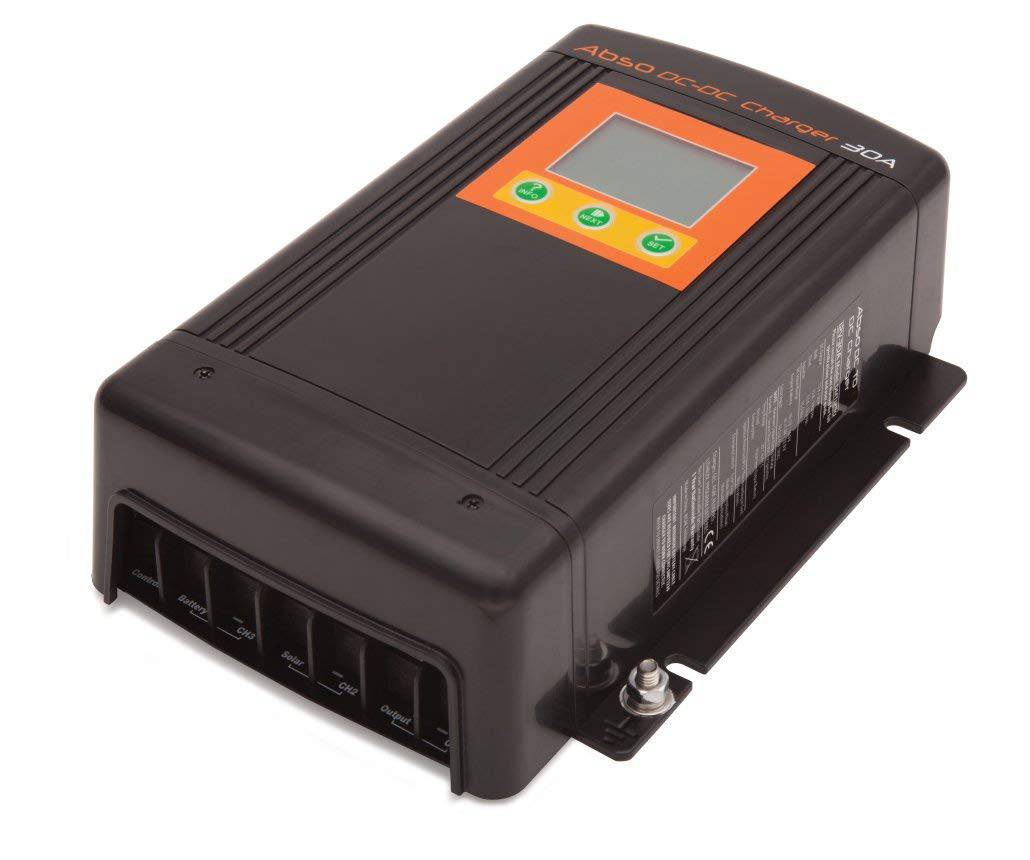

DMT1230 24v-12v 30amp B2B Charger + Solar MPPT

Product Details

Top quality 30amp battery to battery DC/DC charger from Kisae Technology with solar mppt for up to 500 watt @ 45v Max offering the best battery maintaining system for your vehicle.

Also available as a 50amp charger for larger battery banks or Lithium Batteries DMT1250

• Suitable for all vehicles needing a quality battery to battery charger plus modern Euro 5 & Euro 6 smart charging systems

• Suitable for 24v vehicles like race vans and horse boxes needing to charge a 12v battery bank from a 24v input battery

Features and Benefits

• DC to DC Battery Charger

• Microprocessor controlled multi-stage charging algorithms(bulk, absorption, float) for gel, flooded, AGM Lithium batteries plus equalization for flooded batteries

• Silent mode for quiet operation

• MPPT solar regulator allows you to provide maximum power from solar panels to battery

• Optional remote allows you to view system information

• Dual Input Capability: MPPT Solar Input & Auxiliary Input.

• Multi-stage battery charger ensures that your batteries are charged the way battery manufacturers recommend.

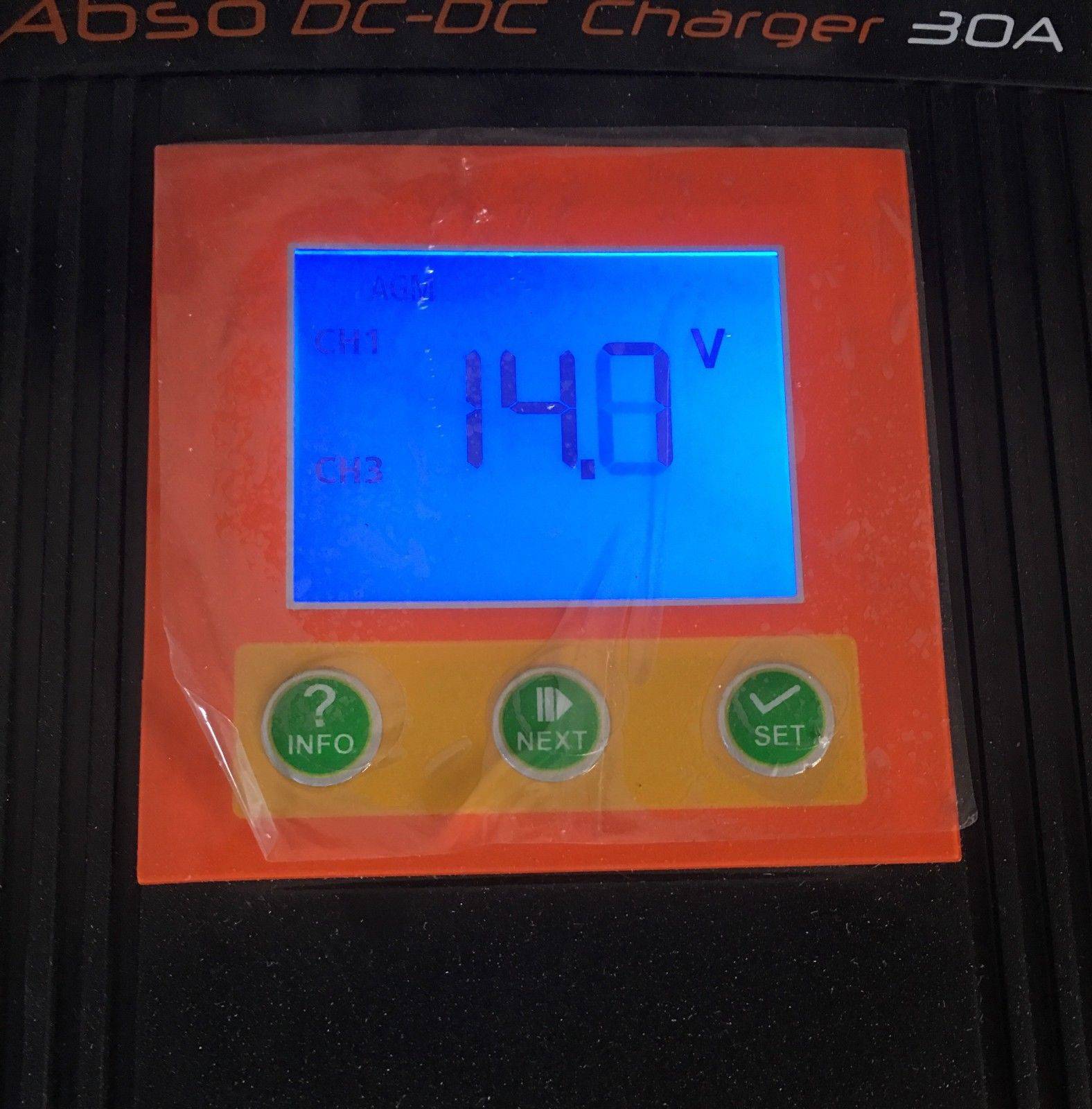

• Digital Display

• Auto 12v/24v detection on start up

• Small footprint, extremely compact design.

• Saves money by maximizing battery life.

• Will charge you battery(s) faster and up to full capacity which is not achieved through standard alternator split charge systems

• weight 1.85kg

• dimensions 242 x 172 x 74mm

• 2 year warranty

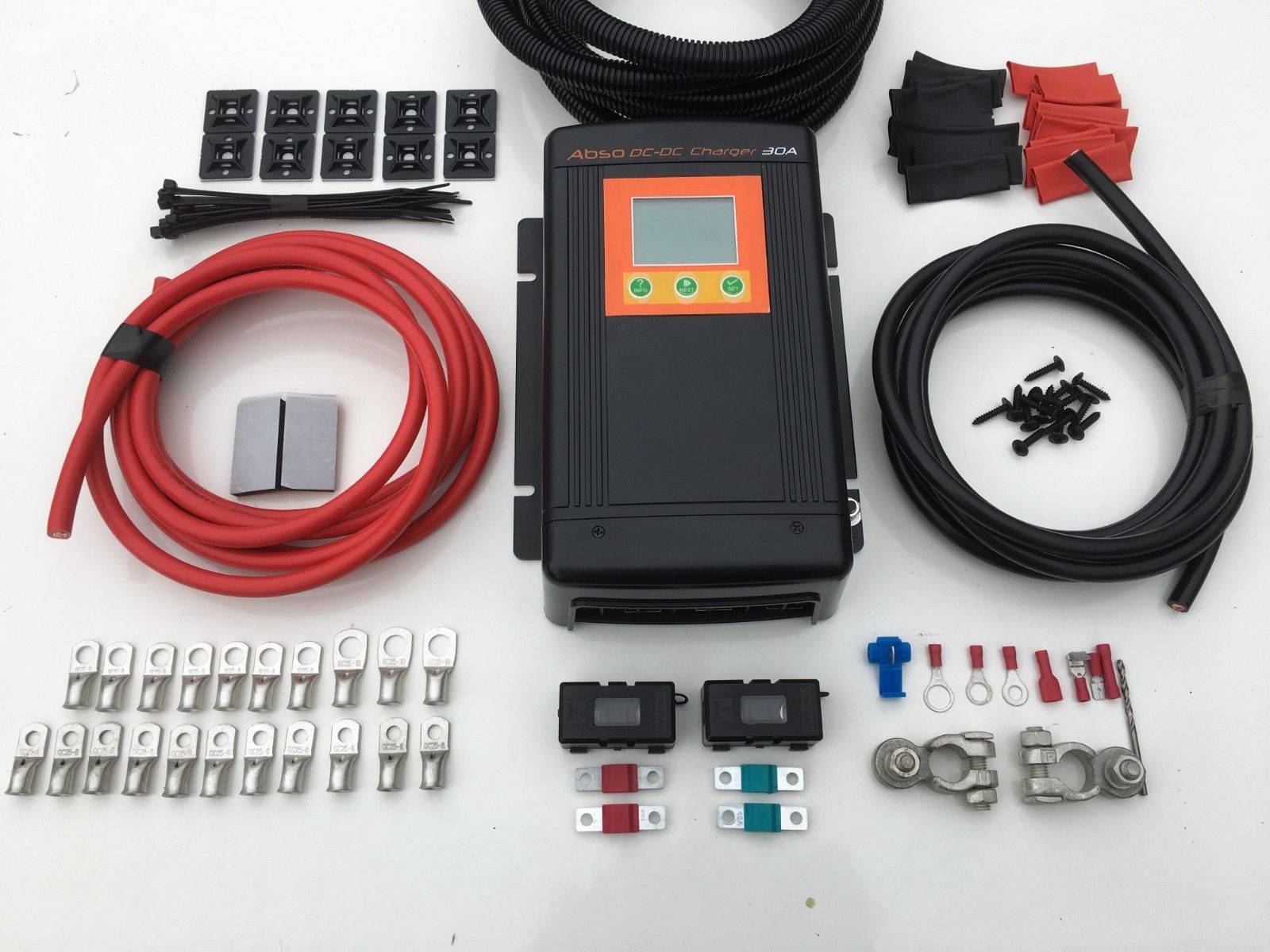

This kit will be supplied with the following items

• 1 x DMT-1230 Charger

• 1-8m 16mm 110amp Red Cable

• 1-8m 16mm 110amp Black Cable

• 1-8m 1.5mm 15amp Red Cable ( Option Ignition Switch Feed)

• 1-8m 13mm Split Conduit

• 2 x Midi Fuse Holders + recommended midi fuses including spares

• 1 x Pair 8mm Post Type Battery Terminals

• Crimp Terminals

• Heat Shrink

• Cable Ties

• Screws + Dril Bit

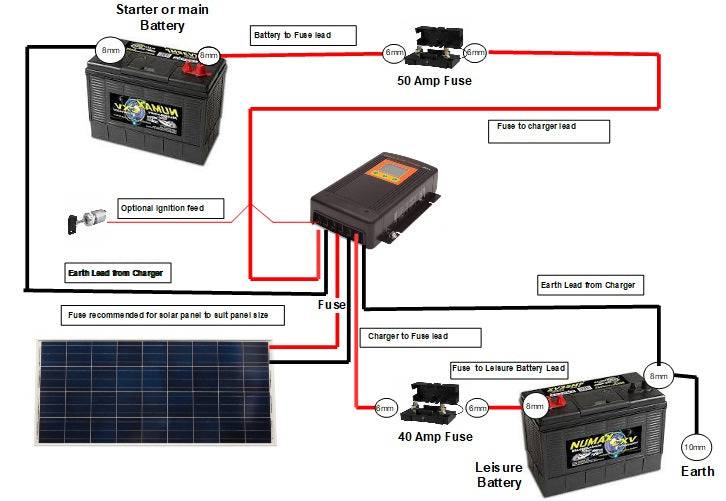

• Wiring Diagram
