Merlin Power

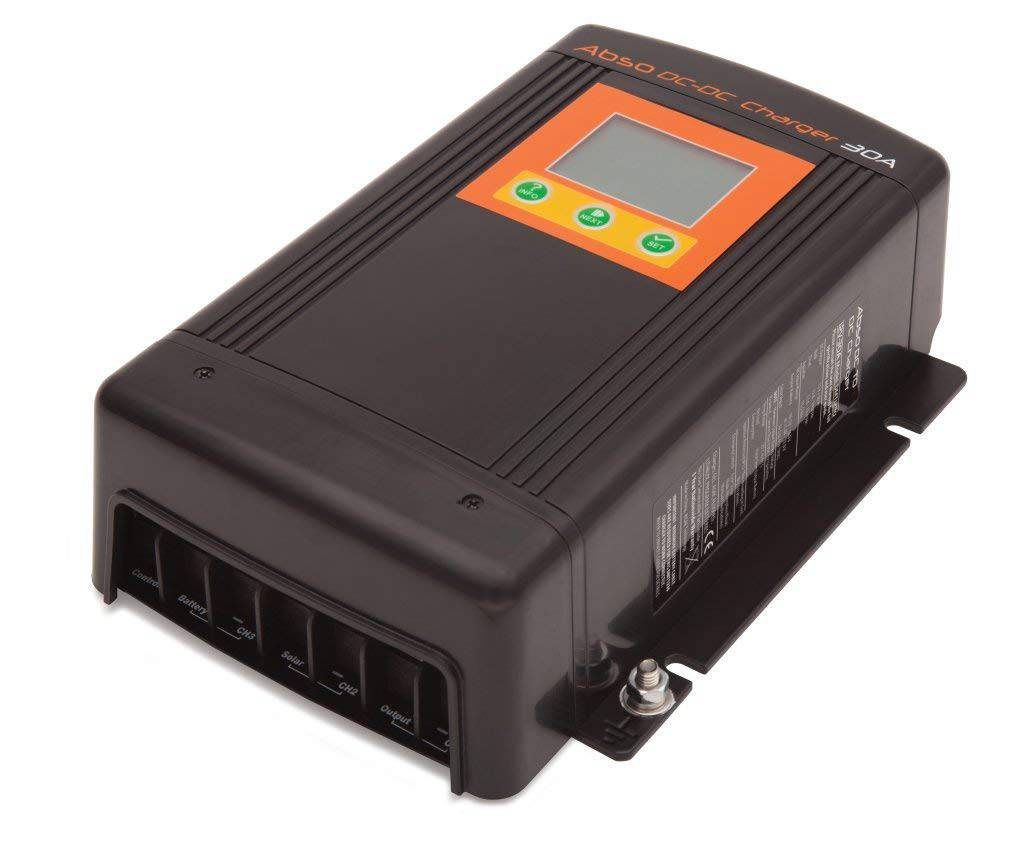

DMT1230 12v 30amp B2B Charger + Solar MPPT

£360.00 GBP

Price Includes VAT.

SKU: DMT1230/K1
In stock
Please select kit length:

Please select kit length
Optional 6 Way or 12 Way Fuse Box Kit:

Optional 6 Way or 12 Way Fuse Box Kit
Quantity:

Product Details

Top quality 30amp battery to battery DC/DC charger from Kisae Technology with solar mppt for up to 500 watt @ 45v Max offering the best battery maintaining system for your vehicle.

Also available as a 50amp charger for larger battery banks or Lithium Batteries DMT1250

Suitable for all vehicles needing a quality battery to battery charger plus modern Euro 5 & Euro 6 smart charging systems
Recommended for any 12v vehicle including Camper vans, motor homes, RVs , boats & Commercial Vehicles

Also suitable for 24v vehicles like race vans and horse boxes needing to charge a 12v battery bank from a 24v input battery

Features and Benefits

DC to DC Battery Charger
Microprocessor controlled multi-stage charging algorithms(bulk, absorption, float) for gel, flooded, AGM Lithium batteries plus equalisation for flooded batteries
Silent mode for quiet operation
MPPT solar regulator allows you to provide maximum power from solar panels to battery
Optional remote allows you to view system information
Dual Input Capability: MPPT Solar Input & Auxiliary Input.
Multi-stage battery charger ensures that your batteries are charged the way battery manufacturers recommend.

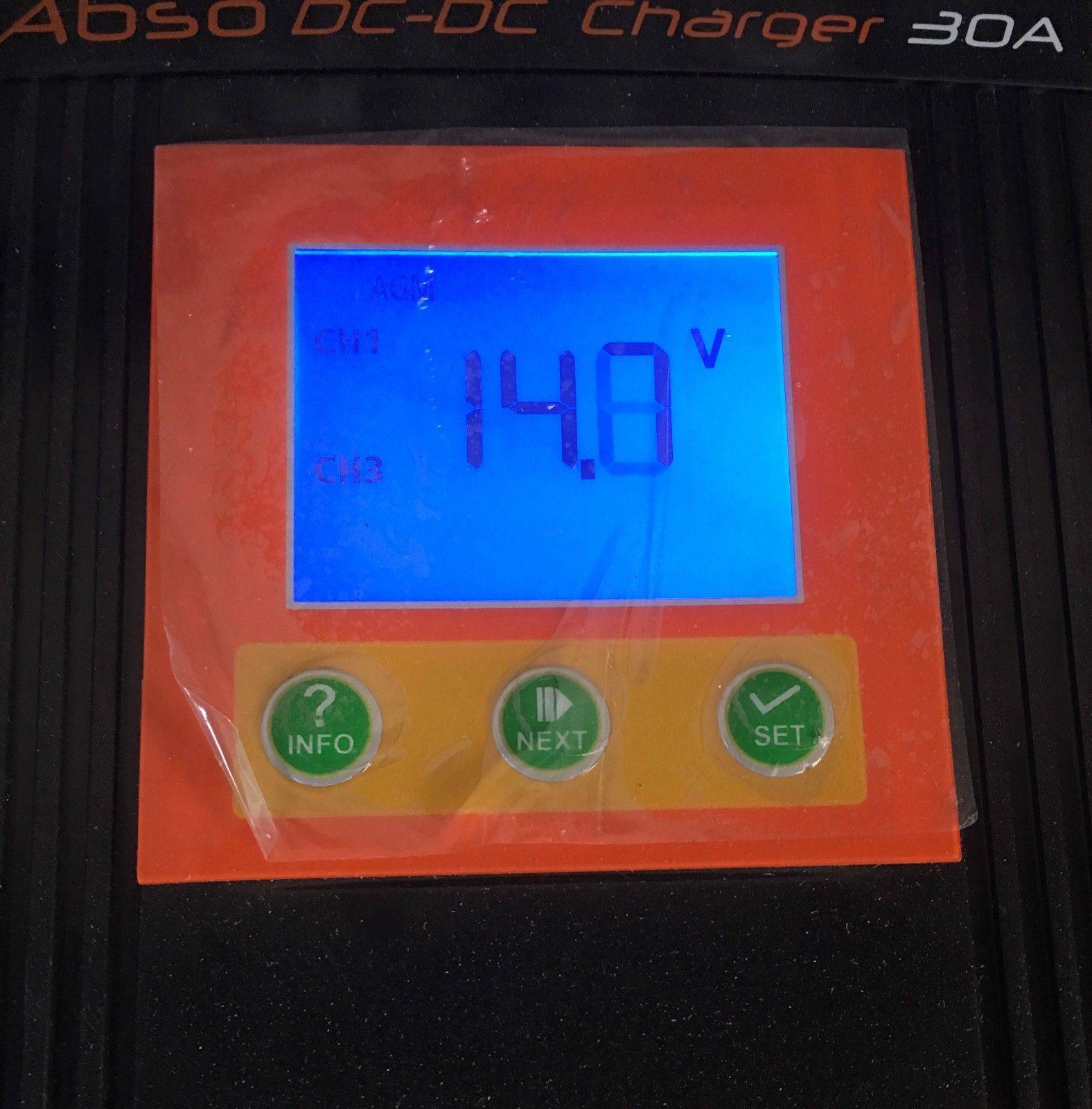

Digital Display
Auto 12v/24v detection on start up
Small footprint, extremely compact design.
Saves money by maximising battery life.
Will charge you battery(s) faster and up to full capacity which is not achieved through standard alternator split charge systems
weight 1.85kg
dimensions 242 x 172 x 74mm
2 year warranty

Specifications + Parts List

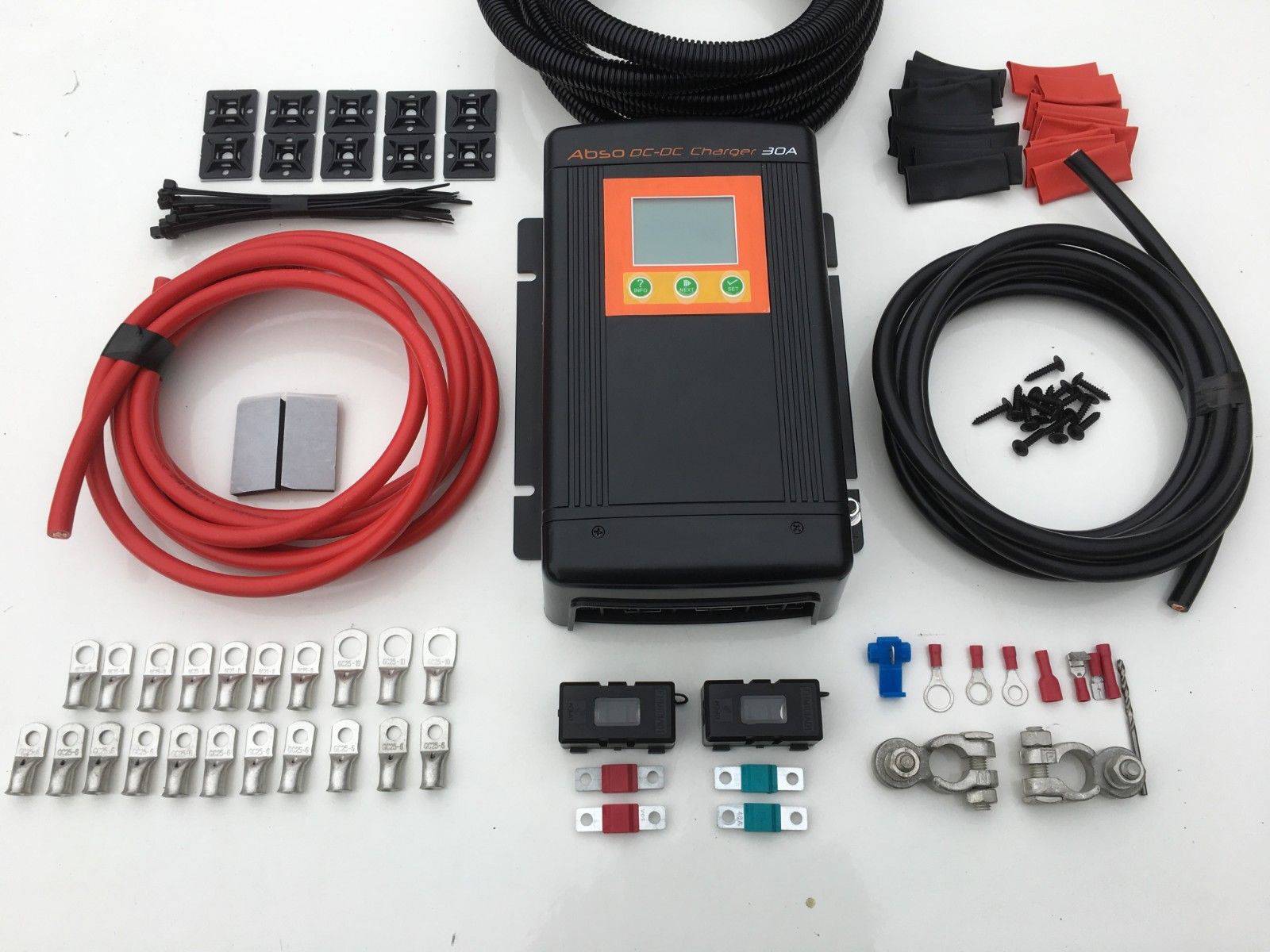

This kit will be supplied with the following items

1 x DMT-1230 Charger
1-8m 16mm 110amp Red Cable
1-8m 16mm 110amp Black Cable
1-8m 1.5mm 15amp Red Cable ( Option Ignition Switch Feed)
1-8m 13mm Split Conduit
2 x Midi Fuse Holders + recommended midi fuses including spares
1 x Pair 8mm Post Type Battery Terminals
Crimp Terminals
Heat Shrink
Cable Ties
Screws + Dril Bit

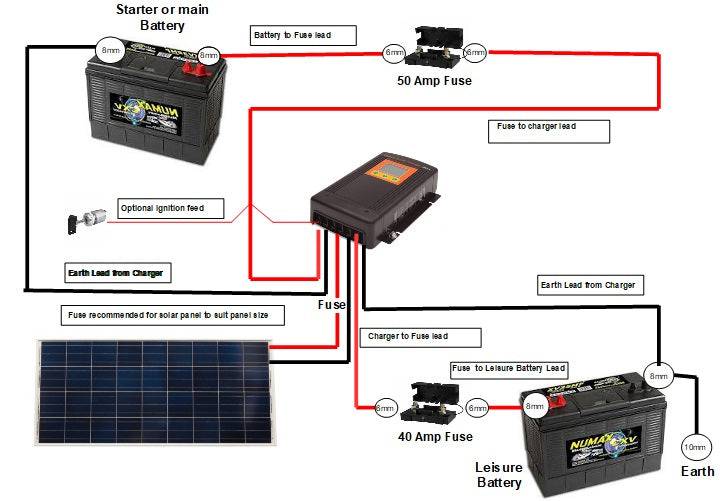

Wiring Diagram

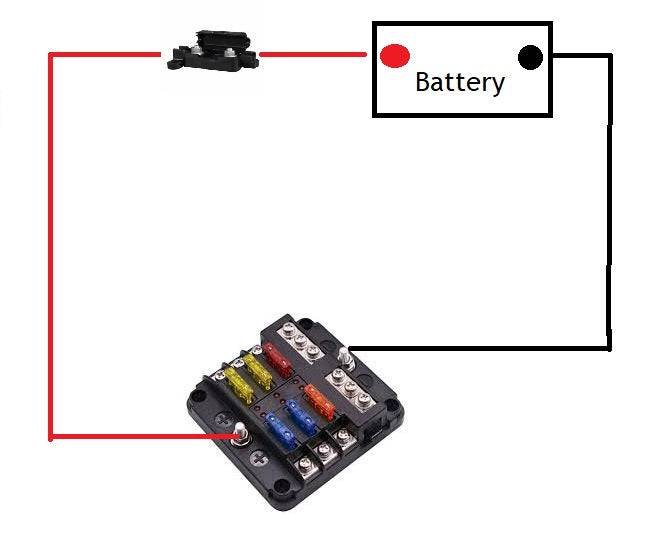

Optional 1m Fuse Box kit for 12v Distribution

        1 x 6 or 12 Way Fuse Box

          1.25m Red 70amp 10mm² Cable

            1m Black 70amp 10mm² Cable

              Crimp Terminals + Heat Shrink

                1 x strip link fuse holders + 2 x 60amp fuses

                  3 x each 5amp,10amp,15amp & 20amp Blade Fuses

                    24 x 4mm blue insulated ring terminals
