Campervan Wiring Kit with Voltage Sense Split Charge + Mains Hook Up + Battery Charger
Please select kit length
Fuse Box Size
Socket Option for Hook Up
Choose options
Please select kit length
Fuse Box Size
Socket Option for Hook Up
Please select kit length
Fuse Box Size
Socket Option for Hook Up
Product Details
Top quality campervan wiring kitsupplied with everything needed to charge a leisure battery via the Merlin Power voltage sense relay kit.

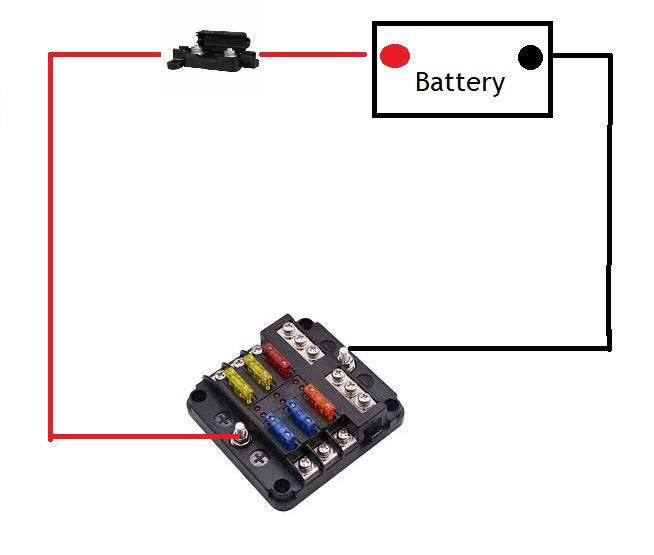

Distribute power via the 6 or 12 wayfuse box.
Connect to mains 240 site electric via the mains hook upkit and supply energy to the leisure battery when connected to mainspower
This kit is designed for older vehicles without a smart alternator charging standard lead acid leisure batteries
NOT suitable for Lithium batteries.

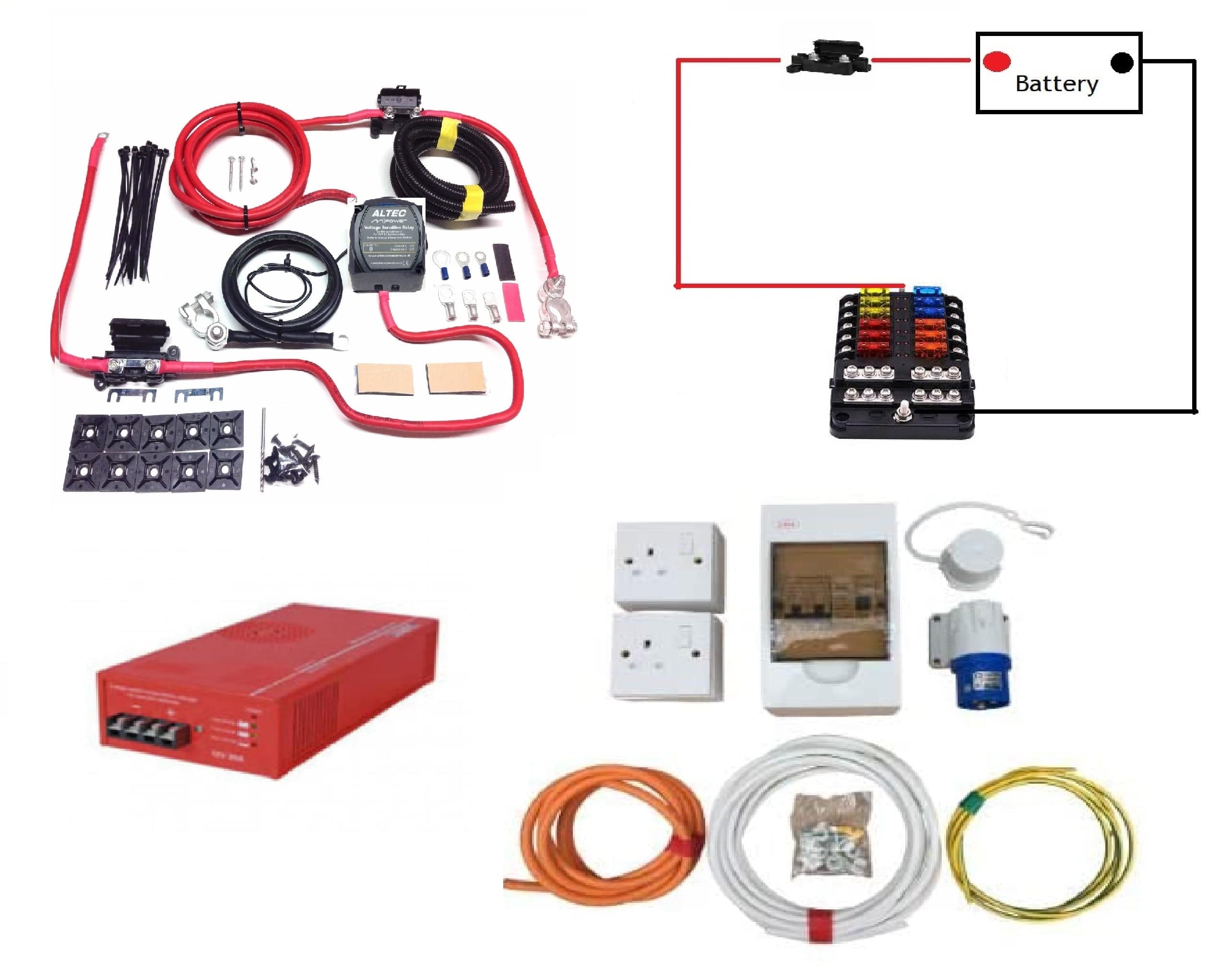

This kit contains the following items
Merlin Equipment M Power split charge relay + wiring
6 or 12 way fuse box kit + wiring
240v mains Hook Up Kit
Durite 12v 20amp battery Charger
10m 2m 25amp Flat Twin Core Cable
Simply Select kit length from the drop down menu above for the distance between the main starting battery to the leisure battery location

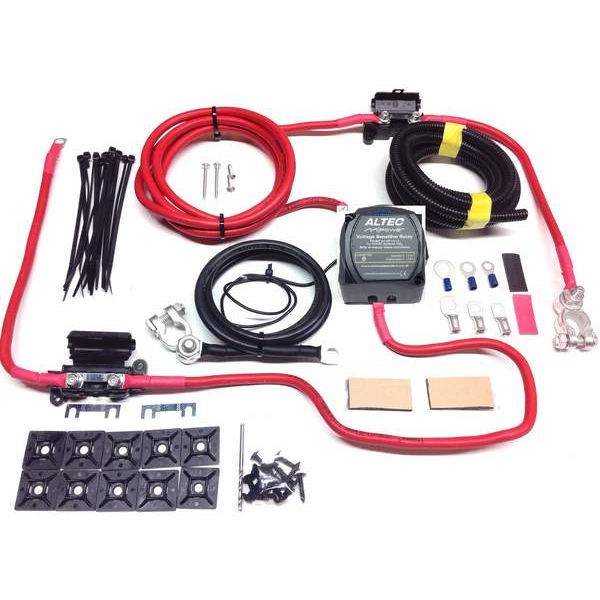

Split Charge Kit
1 x 12v 140amp M Power relay
1 x 250mm 110amp Red Starter Battery to fuse box lead. (8mm to 6mm terminals)
1 x 1m to 7m 110amp Red Fuse box to relay lead (6mm to 6mm terminals)
1 x 500mm 110amp Red Relay to fuse box lead (6mm to 6mm terminals)
1 x 250mm 110amp Red Fuse Box to Leisure Battery Lead (6mm to 8mm terminals)
1 x 1000mm 110amp Black Earth Cable. (8mm to 10mm terminals)
Spare terminals + Heat shrink pack for modifications if required
Positive & Negative 8mm post type battery terminals
2 x Fuse Holders & 100amp Fuses including a spares.
15 x Cable ties + fixings to keep everything tidy.
2mtrs Split conduit to protect cables in Engine bay.
Screws to fix fuse boxes & cable tie bases
High Quality HSS Drill Bit

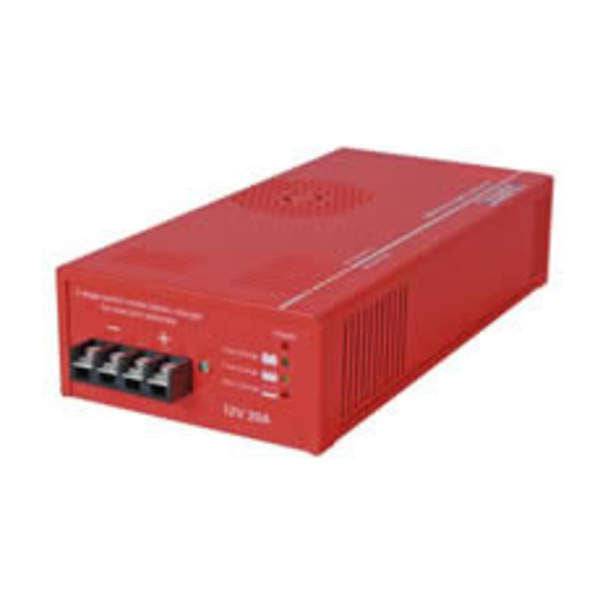

Durite 12 20amp Battery Charger
Durite 0-647-20 Automatic Battery Charger/Maintainer 12 volt 20 amp
12 volt 20 amp battery charger suitable for all sealed for life, gel and maintenance free batteries
Features: micro chip controlled three stage charging, allowing the charger to be left permanently connected without harming the battery.
On/off switch, detachable wall-mount brackets, supplied with crocodile clips and leads.
Type Automatic charger for lead-acid batteries
Charge control 3 stage charging (Main 20 amp, Final 14.7 volt, Float 13.8 volt)
Input 100-240 volt ac 50/60Hz
Output 20 amp 12 volt dc
Battery size up to 300ah
Battery type 12 volt wet cell, Lead/calcium, Maintenance Free, Sealed, Deep cycle, AGM and GEL
Display 4 single LED indicators (Power on, Main, Final and Float Charge)
Lead length Charging lead 1.2m, mains lead 1.5m
Electrical protection
Reverse connection and short circuit Protection
Indoor use only
Temperature range 0C to 40C
Weight 1.45gk
Dimensions l 112 x w 226 x h 52mm (exc. bracket or feet)
Compliance CE, RoHS, WEEE
Fuse Box Kit
1 x 6 or 12 Way Fuse Box
250mm Red 70amp 10mm² Lead with M6-M8 Terminals
1mtr Red 70amp 10mm² Lead with M6-M6 Terminals
1mtr Black 70amp 10mm² Lead with M8-M6 Teminals
1 x strip link fuse holders + 2 x 60amp fuses
3 x each 5amp,10amp,15amp & 20amp Blade Fuses
24 x 4mm blue insulated ring terminals

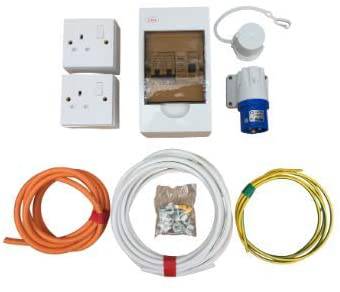

Mains Hook Up Kit
Mains installation kit for fitting a 240V hook-up system to caravans, motorhomes, campervans and boats.
This kit includes everything you need to install a safe and reliable mains system and includes a fully insulated mini-consumer unit with twin miniature circuit breakers with 25 Amp RCD, one 10 Amp and one 6 Amp MCB
2x single gang switched white sockets, cables

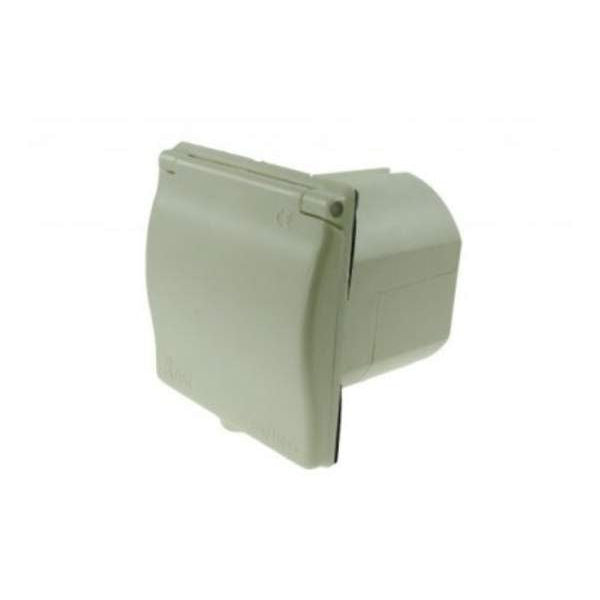

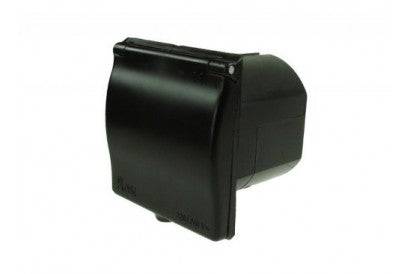

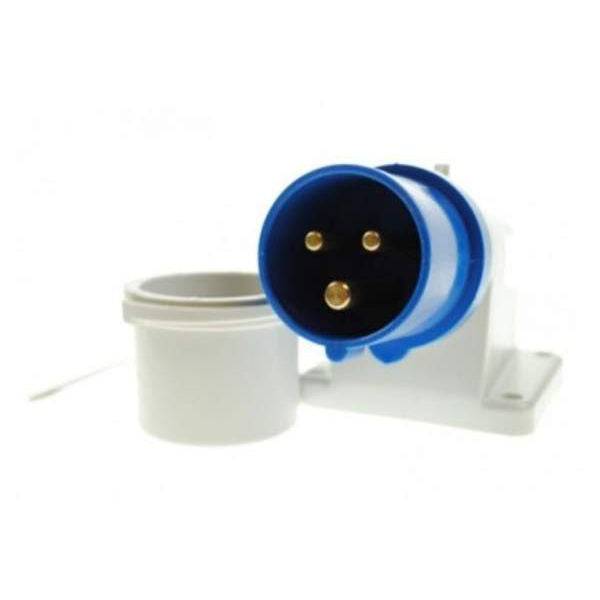

Please select either surface-mounted or flush fit inlet plug above for connects to the site supply.
Consumer unit with a 25A, 30mA RCD & 2x double pole MCBs (10A and 6A)
2 x single gang switches sockets (surface mounted)
Main picture shows surface mounted inlet plug
2m of orange 3-core 2.5mm flexible cable (inlet to consumer unit)
5m of white 3-core 2.5mm 240V flexible cable (consumer unit to sockets)
2m of green/yellow 6mm earth cable + ring terminal (consumer unit earth bonding)
Cable clips
Installation instructions
Consumer unit dims: 200 (H) x 110 (W) x 95 (D) mm
Note: If you are unsure about installing this system yourself please consult a qualified electrician.
