Campervan Wiring Kit with Voltage Sense Split Charge + 130 Watt Victron solar panel Kit

£310.00 GBP

Price Includes VAT.

In stock
Please select kit length:

Please select kit length
Quantity:

Campervan wiring kits upplied with everything needed to charge a leisure battery via the HC Cargo voltage sense relay kit while driving and from the 130 watt solar panel when parked up.

Supplied with the leads Pre crimped for a simple installation

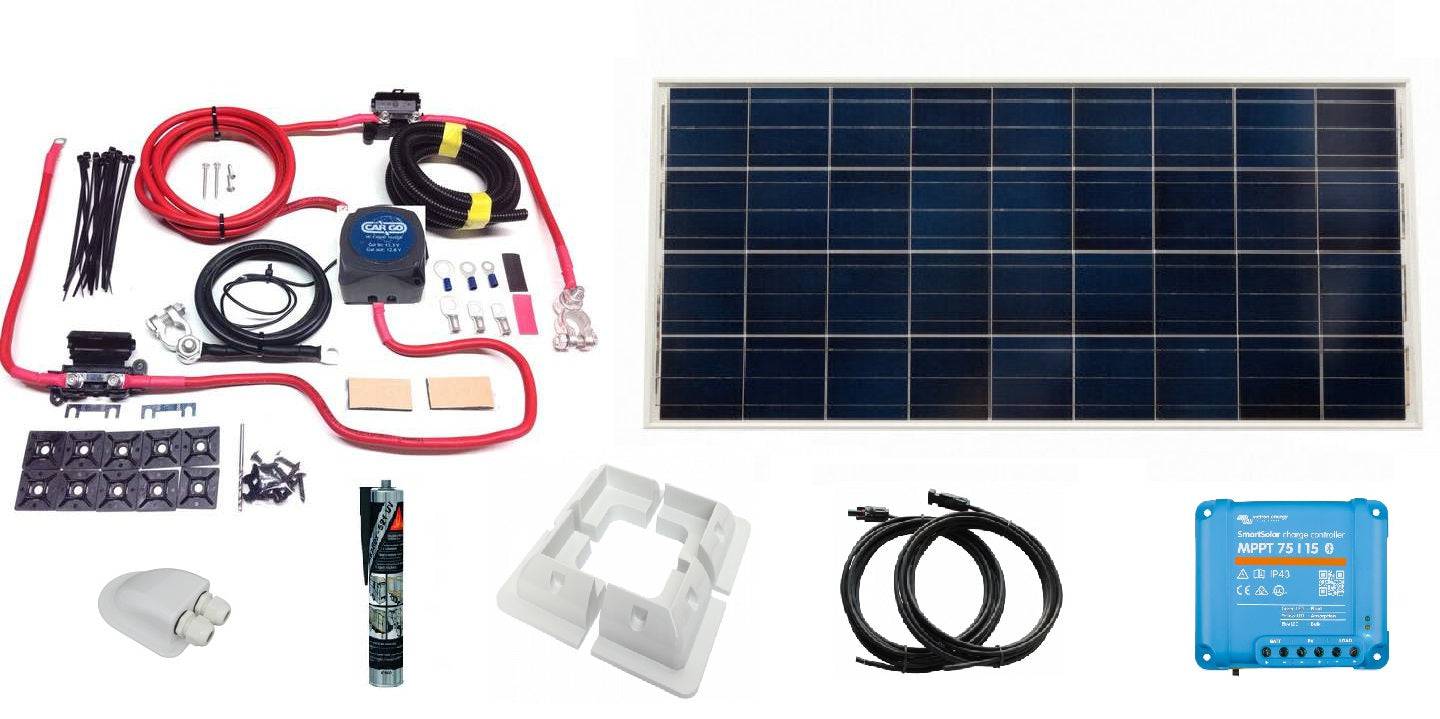

This kit contains the following items

HC Cargo Voltage Sense split charge relay + wiring

Victron 130 watt solar panel kit

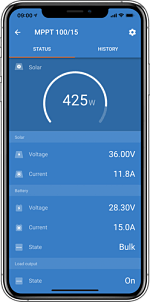

Victron 75/10 smart solar MPPT + 1mtr wiring kit



Simply Select kit length from the drop down menu above for the distance between the main starting battery to the leisure battery location

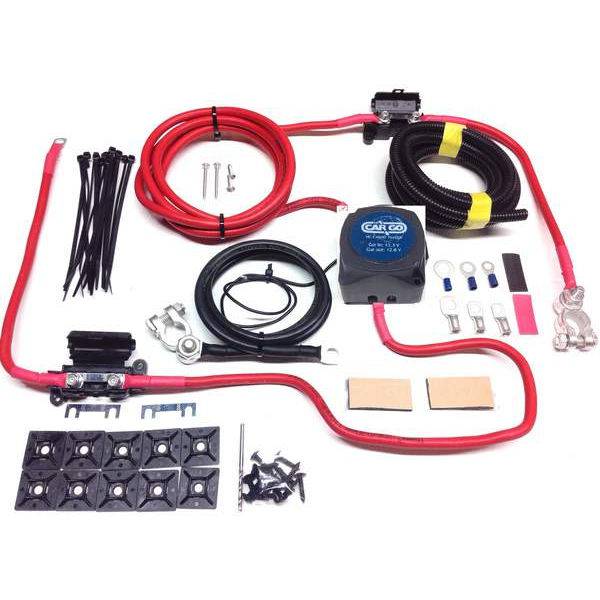

Split Charge Kit

  • 1 x 12v 140amp HC Cargo relay
  • 1 x 250mm 110amp Red Starter Battery to fuse box lead. (8mm to 6mm terminals)
  • 1 x 1m to 7m 110amp Red Fuse box to relay lead (6mm to 6mm terminals)
  • 1 x 500mm 110amp Red Relay to fuse box lead (6mm to 6mm terminals)
  • 1 x 250mm 110amp Red Fuse Box to Leisure Battery Lead (6mm to 8mm terminals)
  • 1 x 1000mm 110amp Black Earth Cable. (8mm to 10mm terminals)
  • Spare terminals + Heat shrink pack for modifications if required
  • Positive & Negative 8mm post type battery terminals
  • 2 x Fuse Holders & 100amp Fuses including a spares.
  • 15 x Cable ties + fixings to keep everything tidy.
  • 2mtrs Split conduit to protect cables in Engine bay.
  • Screws to fix fuse boxes & cable tie bases
  • High Quality HSS Drill Bit



Solar Panel Kit

  • Victron Solar Panel

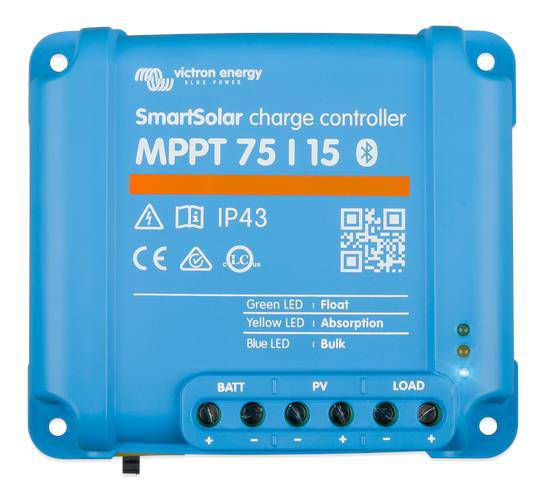

  • Victron 75/10 Smart MPPT Controller

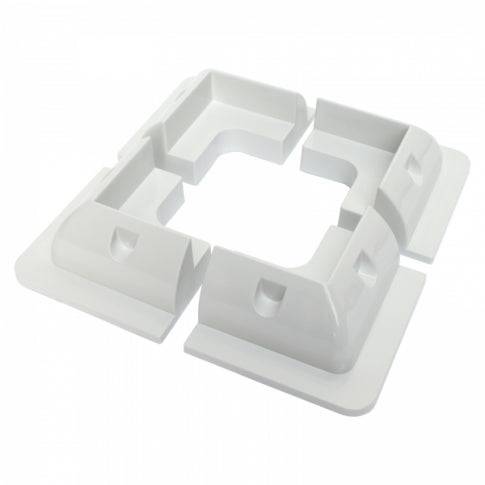

  • Corner Frame Mounting If Required

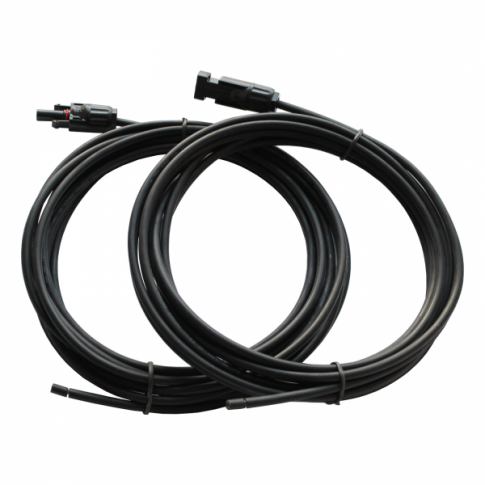

  • 5m Solar Cable

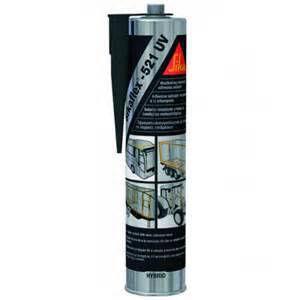

  • 1 x SikaFlex Adhesive
  • 1 x Cable Entry Gland
  • 1 X 1m solar fiitting kit

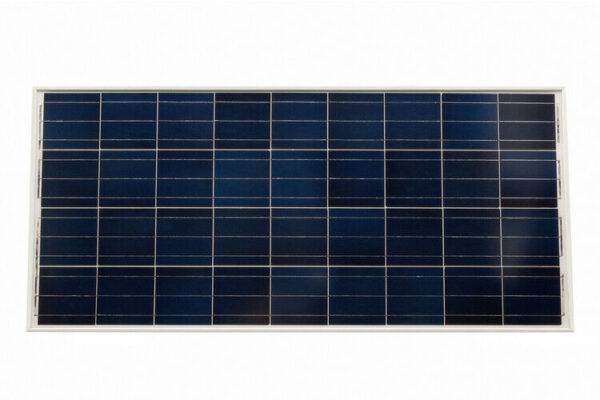

Victron Panel

Brand:    Victron Energy
Model:    SPM041301200
Panel Quantity:    1 x 130W
Solar Array Size:    130W
Rated Power:    130W
Voltage:    22.83
Type:    Rigid
Cell Type:    Monocrystalline
Connector:    MC4
Dimensions:    1200 x 668 x 30mm
Maximum System Voltage:    1000V
Number of Cells in Series:    36


Voltage sense systems are especially suited for modern vehicles as this type of system does not need an ignition feed or any additional wiring into your vehicle but for modern Intelligent smart charging vehicles with Euro 5/6 engines you will need to use a DC to DC charger.
