Campervan Wiring Kit with Victron TR Smart Battery to battery Charger + Fuse Box

Sale price£322.00 GBP
In stock
Please select kit length:

Please select kit length

Fuse Box Size:

Fuse Box Size

Quantity:

Product Details


Top quality campervan wiring kitsupplied with everything needed to charge a leisure battery

Victron TR Smart Non Isolated 12v 30amp battery to battery charger.

Distribute power via the 6 or 12 wayfuse box + twin core cable


This kit contains the following items

Victron ORI121236140 battery to batterycharger + wiring

6 or 12 way fuse box kit + wiring

10 mtrs flat twin core cable 2mm² 25amp



Simply Select kit length from the drop down menu above for the distance between the main starting battery to the leisure battery location

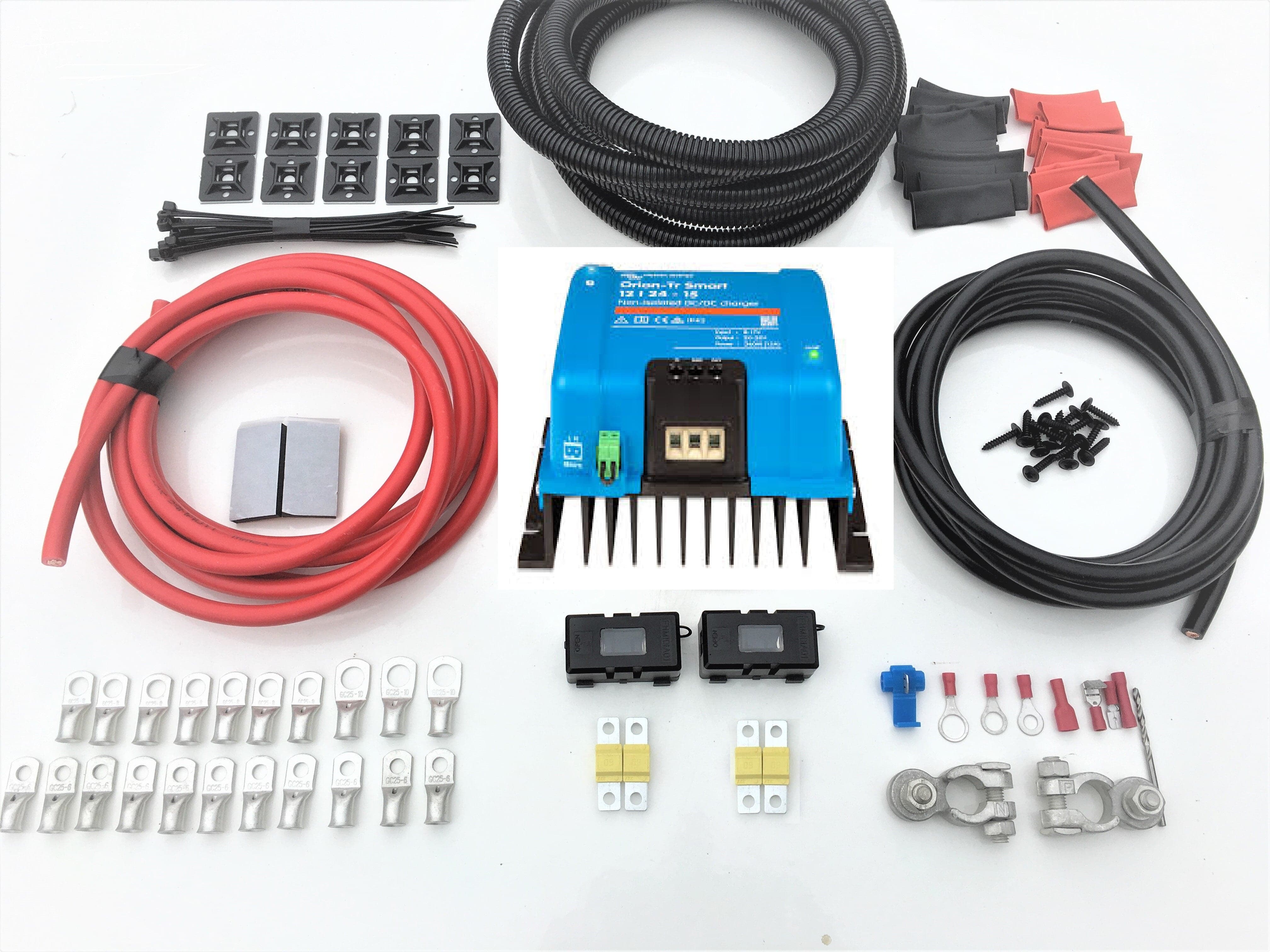

B2B Charging Kit Specifications







    1 x  Victron Orion 12v 30amp Non isolated Charger

    1-8mtrs 16mm² 110amp Red Cable

    1-8mtrs 16mm² 110amp Black Cable

    5mtrs 1.5mm² 15amp Red Cable ( Option Ignition Switch Feed)

    1-8mtrs 13mm Split Conduit

    2 x Midi Fuse Holders + recommended midi fuses including spares

    1 x Pair 8mm Post Type Battery Terminals

    Crimp Teminals

    Heat Shrink

    Cable Ties

    Screws + Dril Bit

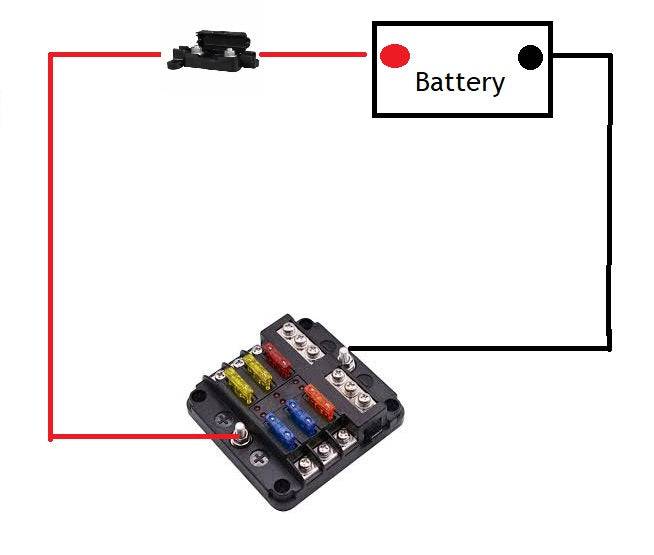

      Fuse Box Kit


      1 x 6 or 12 Way Fuse Box



        1.25m Red 70amp 10mm² Cable



          1mBlack 70amp 10mm² Cable



            Crimp Terminals + Heat Shrink



              1 x strip link fuse holders + 2 x 60amp fuses



                3 x each 5amp,10amp,15amp & 20amp Blade Fuses



                  24 x 4mm blue insulated ring terminals

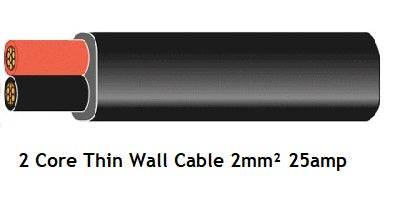

                  Flat twin core cable


                  10 m

                  Conductor spec: 28/0.30
                  Cable size: 2 x 2.00mm2 (15 AWG)
                  Nominal current rating: 25Amps
                  Dimensions: 3.9mm x 6.5mm
                  Colour (outer): Black
                  Colour (inner): Red & Black
