Campervan Electric kit VKIT42 Victron Isolated B2B, Multiplus Inverter Charger options, Hook Up, Fuse Box

Complete Wiring kit for campervans, motorhomes or boats for on and off grid electrics. Supplied with high quality Victron Energy equipment. 12v 30amp DC-DC Charger - 12 Way Fuse Box + Everything needed to connect to a leisure battery.

Victron are one of the world leaders in campervan and off grid electronics and charging systems

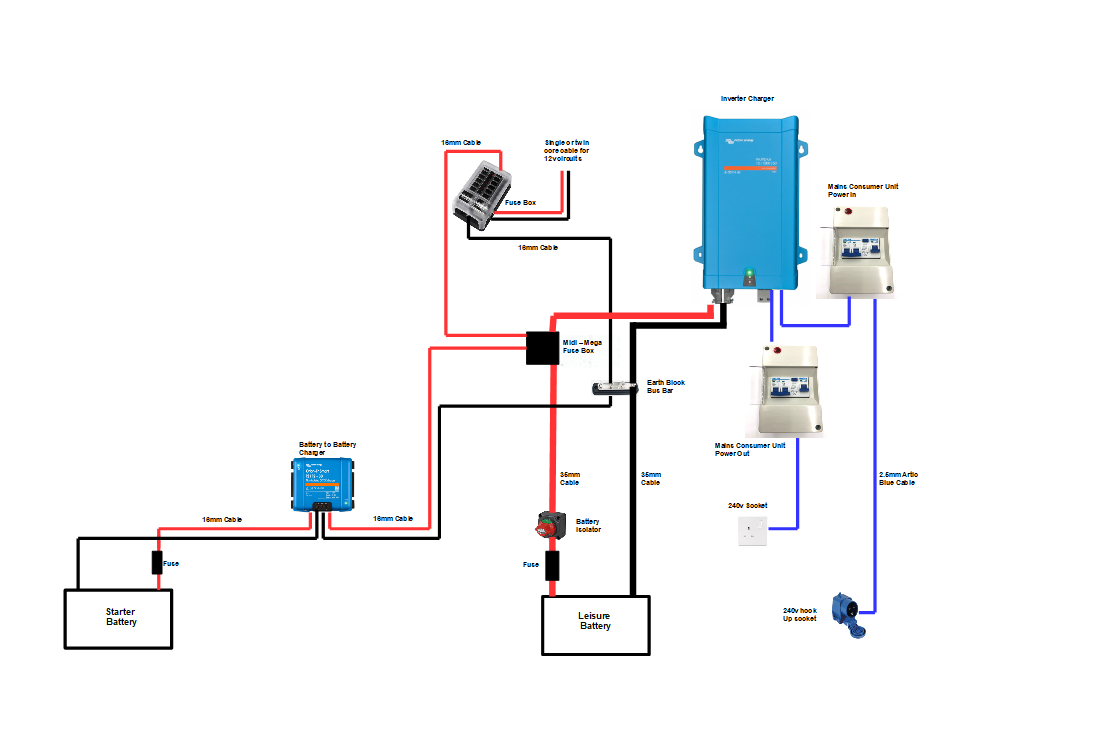

This kit has been designed for a full electric instalation into any off grid campervan and will be supplied with everything you will need

Simply select the inverter charger size required from the drop down menu above

Multiplus options

• 12/500/20  - 500va inverter - 20amp 240v charger
• 12/800/35 - 800va inverter - 35amp 240v charger
• 12/1200/50 - 1200va inverter - 50amp 240v charger
• 12/1600/70 - 1600va inverter - 70amp 240v charger
• 12/2000/80 - 2000va inverter - 80amp 240v charger

The kit will be supplied with the following items which can be customised if needed to suit your needs

Please see the data sheets section for more information on all of the individual products

Parts List

Victron Parts List
 1 x Victron Multiplus Inverter Charger
1 x Victron 12v 30amp Isolated TR Smart battery to battery charger
1 x Victron Smart Shunt SHU050150050

Non Victron Parts List
1 x Mains Hook Up Kit  10a
1 x Mains consumer Unit 10a
1 x 12 Way Fuse Box
2 x Battery Isolator
1 x Mega Midi Fuse Box
1 x Bus Bar

Fitting Parts List
8m 16mm Red Battery Cable
8m 16mm Black Battery Cable
3m 25-50mm Red Battery Cable
3m 25-50mm Black Battery Cable
1 x Mega Fuse Holder
1 x Midi Fuse Holder
1 x Fuse Pack
1 x Terminal Pack
1 x Battery Terminals + Covers
10m Conduit for 16mm Cable
3m Conduit for 25-50mm Cable
30m 2mm Twin Core Cable
