Product Details

Mains installation kit for fitting a 240V hook-up system to caravans, motorhomes, campervans and boats.

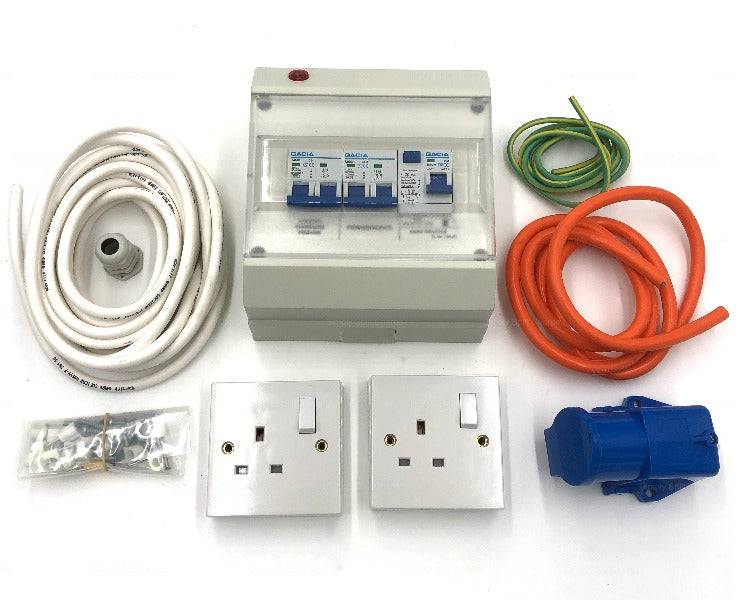

This kit includes everything you need to install a safe and reliable mains system and includes a fully insulated mini-consumer unit with 25 Amp RCD, one 10amp & 6amp Double Pole MCB 2x single gang switched white sockets, cables

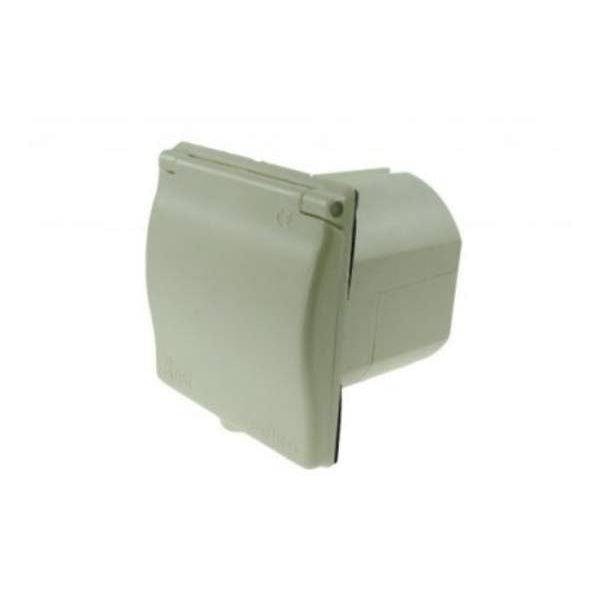

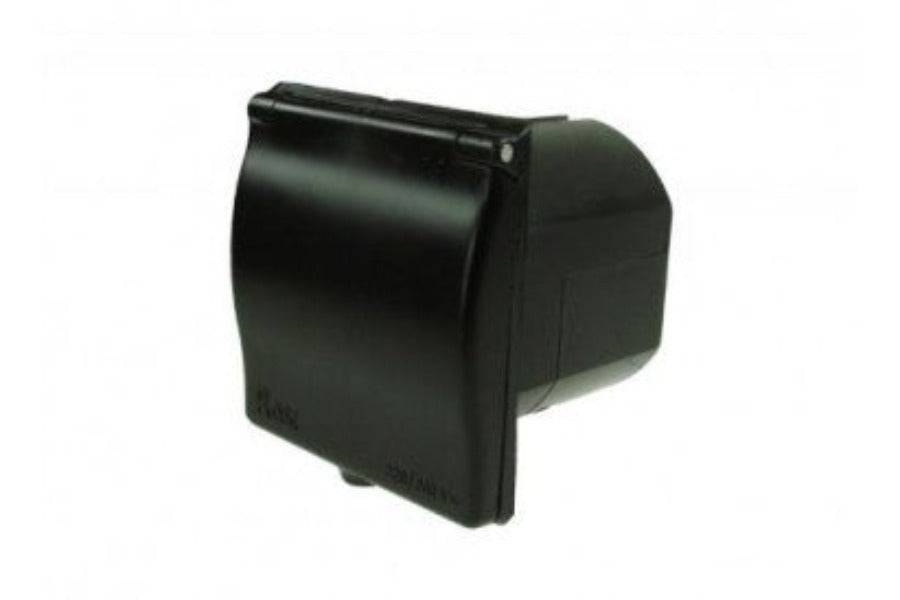

Please select either surface-mounted or flush fit inlet plug above for connects to the site supply.

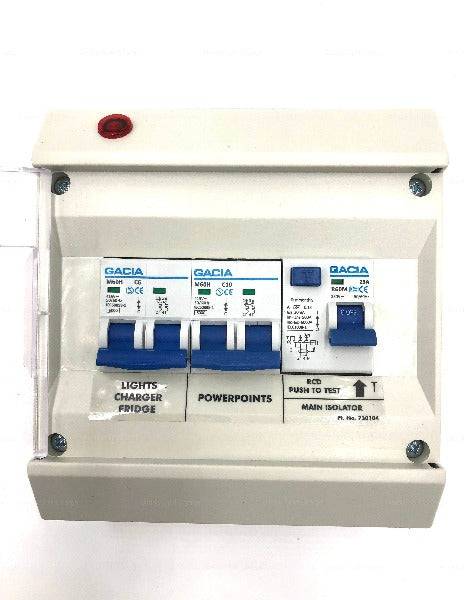

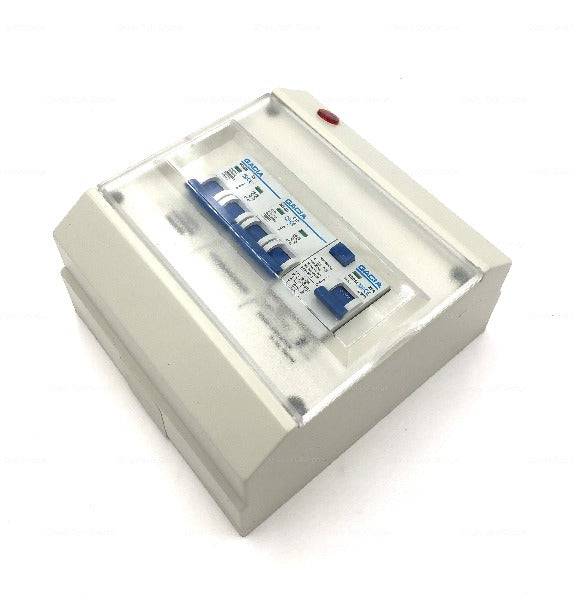

Consumer unit with a 25A, 30mA RCD & 1 x 10amp + 6amp double pole mcb + reverse polarity indicator

2 x single gang switches sockets (surface mounted)

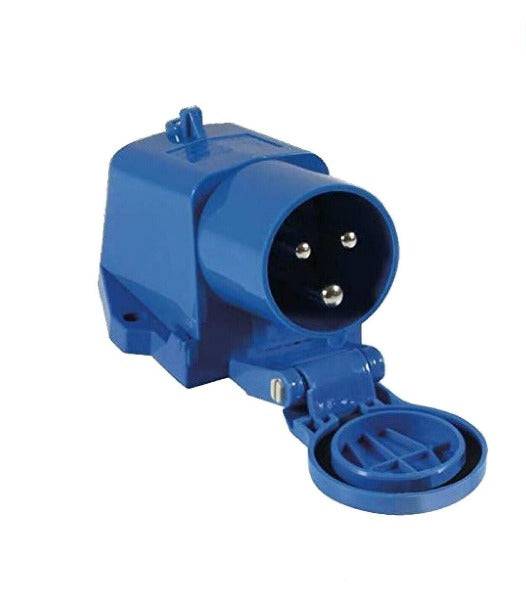

Main picture shows surface mounted inlet plug

2m of orange 3-core 2.5mm flexible cable (inlet to consumer unit)

5m of white 3-core 2.5mm 240V flexible cable (consumer unit to sockets)

2m of green/yellow 6mm earth cable + ring terminal (consumer unit earth bonding)

Cable clips

Installation instructions

Note: If you are unsure about installing this system yourself please consult a qualified electrician.
