Product Details

The 150w PV Logic MHD rigid roof top kit is the perfect choice for days away in your campervan, caravan or motorhome free from electrical hook up.

The roof kit provides everything needed to install the 150w MHD panel and comes complete with premium aero brackets, 15Ah MPPT charge controller, cable gland, bonding agent and instructions.

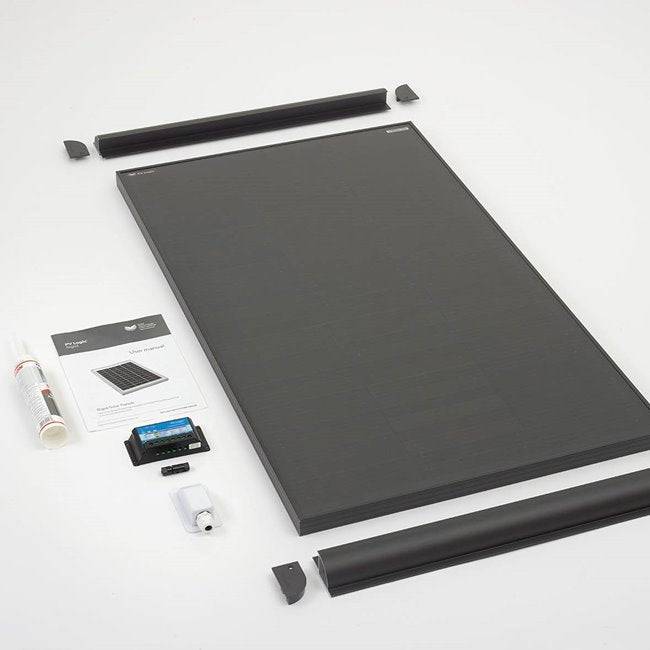

Roof and Deck Top Contents

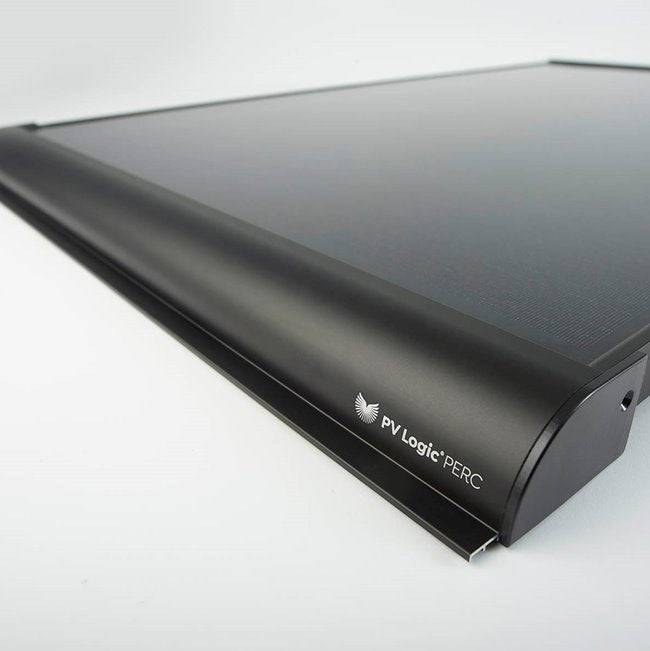

1 x 150w MHD solar panel with 4m cable

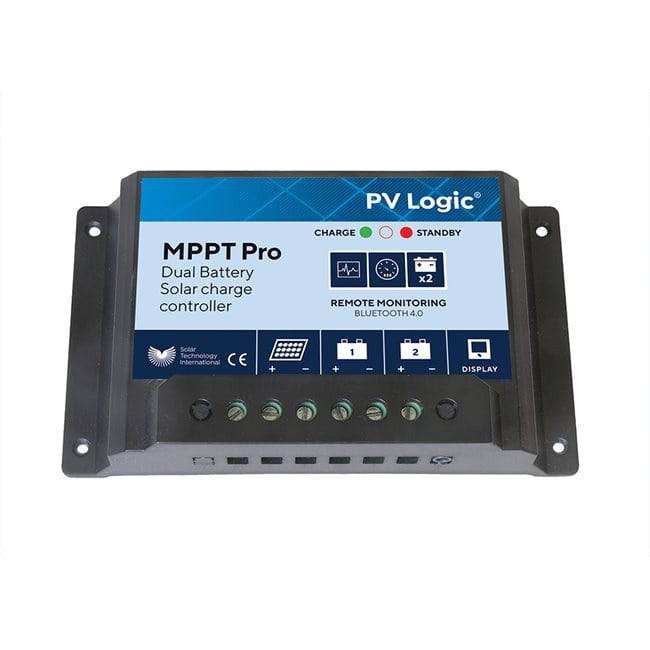

1 x 15Ah MPPT charge controller
1 x premium aero bracket fitting kit
1 x cable feed gland
1 x tube bonding agent
1 x fitting instructions

Specifications + Parts

Size 1150x670x35mm

Weight (Kg) 6.9

*Typical watts/day (W) 900

*Typical amps/day (A) 47.88

Charge controller 15Ah

Vmp (VDC) nominal voltage 18.8V

Imp (A) nominal current 7.98A

Voc (V) 22.2V

Isc (A) short circuit current 8.46A

Part Number STPU150
