12 Way Blade Fuse Box + Negative Bus Bar with 16mm² 110amp Cable or Leads

12-Way Blade Fuse box with twin positive bus bars + negative bus bar supplied with 1m Red Lead + 1m Black Lead + mixed fuses

Simple to install fuse box distribution kit to safely supply up to 12 positive & 12 negative connections for a maximum output of 100amps

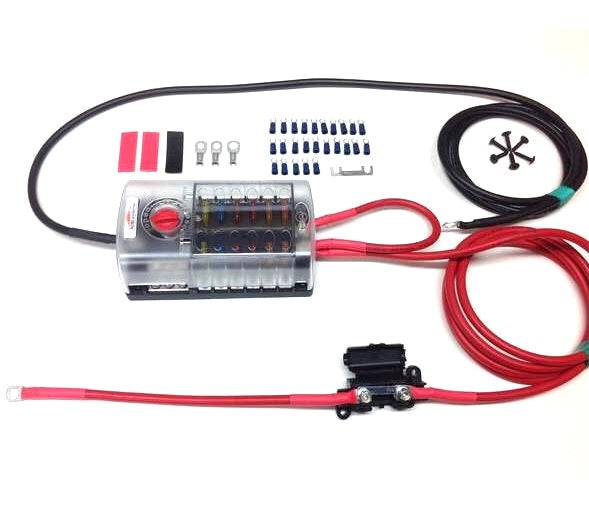

Pre Crimped Lead Option

• 1 x 12-Way Fuse Box
• 1 x 250mm Red 110amp 16mm² Lead with M6-M8 Terminals
• 1 x 1m Red 110amp 16mm² Lead with M6-M6 Terminals
• 1 x 250mm Red 110amp 16mm² Lead with M6-M6 Terminals (to use as positive link lead on fuse box)
• 1 x 1m Black 110amp 16mm² Lead with M6-M8 Teminals
• 1 x strip link fuse holders + 2 x 100amp fuses
• 3 x each 5amp,10amp,15amp & 20amp Blade Fuses
• 12 x 4mm red, blue, yellow insulated ring terminals
• 8 x screws to install fuse holders + fuse box

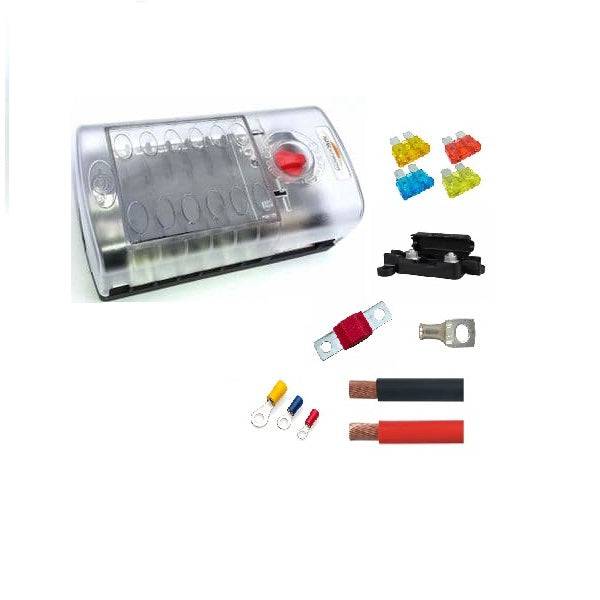

Cable and Component Option

• 1 x 12 Way Fuse Box
• 1.5m Red 16mm² Cable
• 1m Black 16mm² Cable
• Terminal Pack + Heatshrink
• 1 x strip link fuse holders + 100amp midi fuses
• 3 x each 5amp,10amp,15amp & 20amp Blade Fuses
• 12 x 4mm red, blue, yellow insulated ring terminals
• 8 x screws to install fuse holders + fuse box

Fuse box Information:
Consists of two sepperate banks for up to 6 fuses with screw connections.
Each bank of fuses has a common feed for main positive connection
Common busbar for the negative connection.
Each bank of 6 fuses can have its own positive supply source.
Lid is designed to hold spare fuses.
Common negative busbar provides 12 screw connections for a common negative
Main positive connections are made by 5.3mm shaft dia. studs.
For standard Auto blade fuses


Maximum Amps per circuit-30Amps
Maximum amps per block-100Amps ( 200A for total unit with both banks utilised)
Maximum voltage-32Vs
Positive Circuit A: 1x common bus and 6 standard blade fuses.
Positive Circuit B: 1x common bus and 6 standard blade fuses.
Negative Circuit: 1x common bus and 12 pole connector block.
Positive and Negative common buses: M5 studs.
Sizes: L164 x W94 x H57mm
