Description

100w monocrystalline solar panel kit supplied with everything needed to install this system into your campervan, motorhome, RV, boat or off grid building

The kit is suppied with the following items

100w Monocrytalline semi-felexible solar panel

10amp Victron Energy smart solar MPPT with built in bluetooth

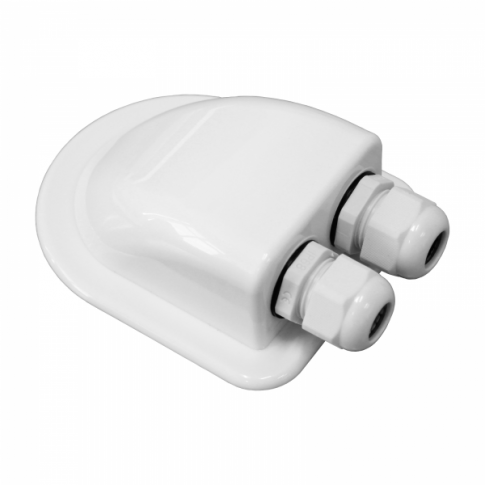

White cable entry gland

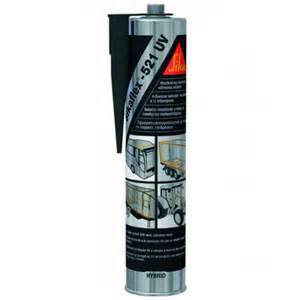

White sikaflex to bond solar panel and entry gland

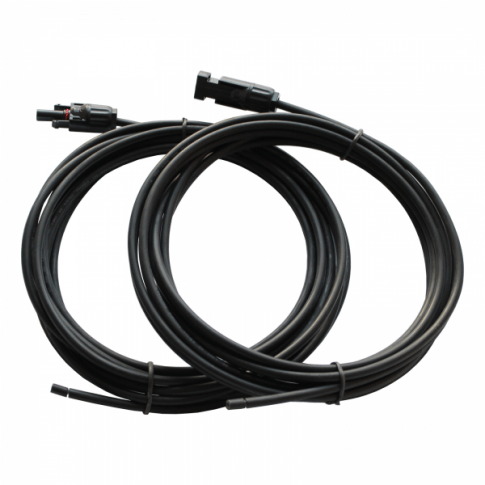

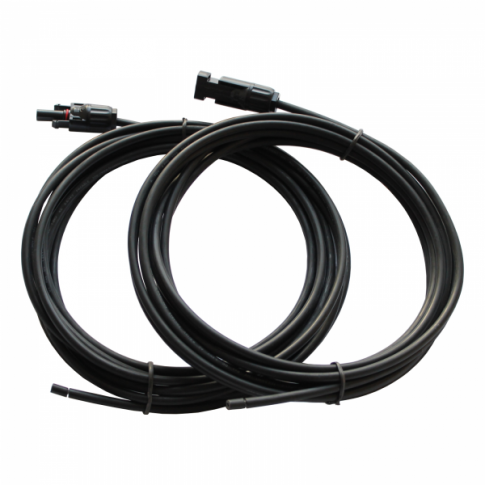

5m solar cable to connect solar panel to solar mppt

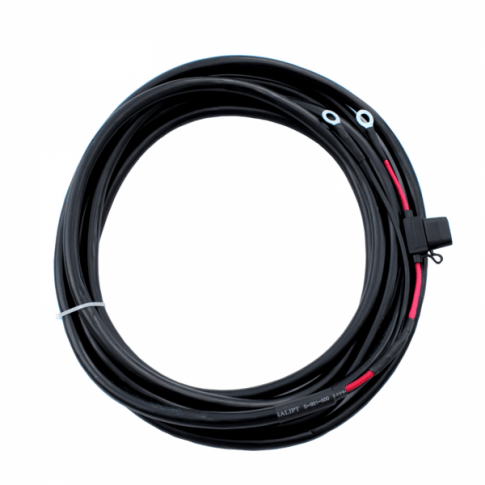

5m cable to join solar mppt to battery

Specifications + Parts

Solar Panel Information

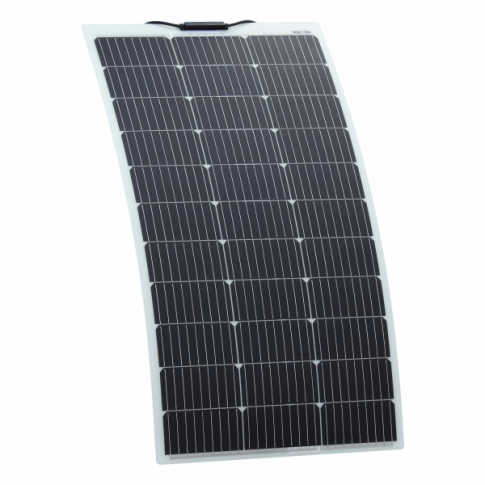

100w monocrystalline semi-flexible lightweight solar panel with 9-busbar solar cells, made of strong fibreglass plastic. The highly flexible design of this panel and its ETFE-coated surface make it verydurable and ideal for curved roofs. Special anti-reflective textured surface maximises performance in low-light & cloudy weather.

Product features:

Robust construction using plastic reinforced with glass fibre creates a sturdy and durable solar panel

Special textured surface significantly reduces light reflection and improves performance in low light and cloudy conditions

Highly flexible design makes this panel ideal for curved roofs and surfaces where bonding is preferable (though it can also be fixed by bolts or screws)
Black backing makes the solar panel ideal for discreet and aesthetically pleasing installation on dark coloured roofs, vehicles or mounting surfaces
The panel is incredibly light (only 1.90kg) and very thin (just 2mm) which is great for all vehicles
High resistance to salt water environments makes it perfect for boats and marine applications
Sealed waterproof design ensures it can be used in all weather conditions

Strong ETFE coating:

In addition to the fibreglass reinforcement, the surface of this 100W semi-flexible solar panel is made of strong ETFE material which has a longer service life compared to standard semi-flexible solar panels. As a result, these particular semi-flexible solar panels are extremely hard-wearing and less prone to cracking, delamination and corrosion. The lightly textured coating of this panel creates an anti-reflective surface which allows the panel to absorb a far greater amount of light, thereby increasing efficiency. ETFE material has long been used in applications where durability and high-temperature resistance is required, such as in the Eden Project, Cornwall. You can read more about ETFE and its benefits

High quality 9-busbar solar cells:

This panel also features new generation 9-busbar solar cells, which are more efficient than the 2, 3, 4 or 5 busbar solar cells used in most other solar panels, and are able to extract more power from the same surface area. This results in a smaller overall solar panel, which is ideal for applications where space is limited.

All-black design:

This solar panel has a unique black backing, making this solar panel ideal for discreet and aesthetically pleasing installation on dark coloured roofs, vehicles or mounting surfaces. Please note that this solar panel is not 'ultra jet-black' - the exact hue may vary marginally from panel to panel, depending on the batch of solar cells.

Anti-reflective textured surface:

The textured surface of this solar panel reduces the reflection of light whilst maximising the absorption of light from every possible angle. This ensures high performance in low light or cloudy conditions, or when the light falls at an angle (in the morning, evening, or winter).

Ease of connectivity:

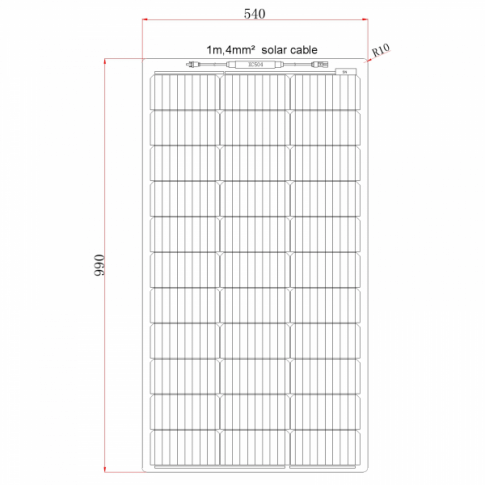

The panel is fitted with 2 x 1m of cable specially designed for solar panels to carry high currents with negligible power loss (4mm² cross section). The cable comes with waterproof MC4 type connectors which can be used for easy connectivity to your existing system, for linking several panels together or connecting direct to a solar controler

Solar MPPT Information

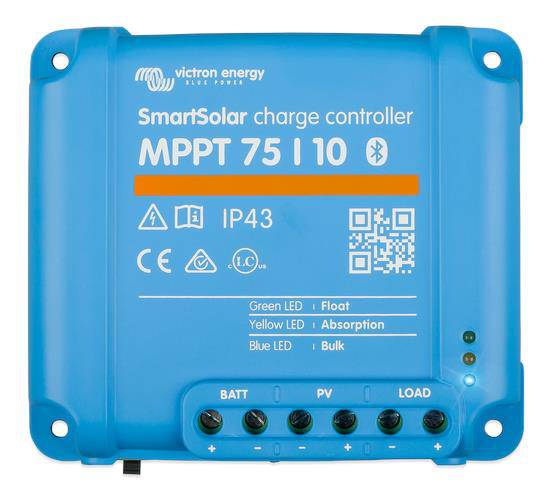

Victron Energy Smart Solar Controller MPPT 75/10 SCC075010060R

A solar charger gathers energy from your solar panels, and stores it in your batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life.

MPPT: Ultra Fast Maximum Power Point Tracking

By constantly monitoring the voltage and current output of your solar (PV) panels, MPPT technology ensures that every drop of available power is rinsed out of your panels, and harvested for storage. The advantage of this is most noticeable when the sky is partially clouded, and light intensity is constantly changing.Load output

The intelligent Load output function prevents damage caused by running batteries ‘flat’. You can configure the voltage at which SmartSolar disconnects a load – thereby preventing excessive drain on your batteries. And here’s the clever bit: SmartSolar will attempt a 100% recharge every day. If it can’t – during periods of poor weather – it raises the disconnect voltage, daily, until it achieves success. We call this feature BatteryLife because it maintains the health, and extends the life of your battery.

Bluetooth Smart built-in

The wireless solution to set-up, monitor, update and synchronise SmartSolar Charge Controllers.

VE.Direct

For a wired data connection to a Color Control GX, other GX products, PC or other devices

Advanced Maximum Power Point Detection in case of partial shading conditions

If partial shading occurs, two or more maximum power points may be present on the power-voltage curve. Conventional MPPTs tend to lock to a local MPP, which may not be the optimum MPP. The innovative BlueSolar algorithm will always maximize energy harvest by locking to the optimum MPP.

Outstanding conversion efficiency

No cooling fan. Maximum efficiency exceeds 98%.

The full output current up to 40°C (104°F).

Flexible charge algorithm

Fully programmable charge algorithm (see the software page on our website), and eight pre-programmed algorithms, selectable with a rotary switch (see manual for details).

Extensive electronic protection

Over-temperature protection and power derating when temperature is high.

PV short circuit and PV reverse polarity protection.

PV reverse current protection.

Internal temperature sensor

Compensates absorption and float charge voltage for temperature.

Please allow up to 3 working days for delivery of our solar panels as it can take longer to pack for the safe delivery.
