10 Way Fuse box distribution kit with Negative Bus bar

Sale price£60.00 GBP
SKU: FB080/BB100/1

Power distribution and earthing system using a 10 way standard blade type fuse box & 100amp bus bar

In stock
Please select kit length:

Please select kit length

Quantity:

Power distribution and earthing system to supply a fused 10 way standard blade type fuse box & 100amp bus bar

Supplied with everything needed to safely distribute power for 12 or 24 volt electrics or to connect to popular switch panels.

70amp 10mm² main positive feed via in line fuse holder to fuse box with 60amp fuse

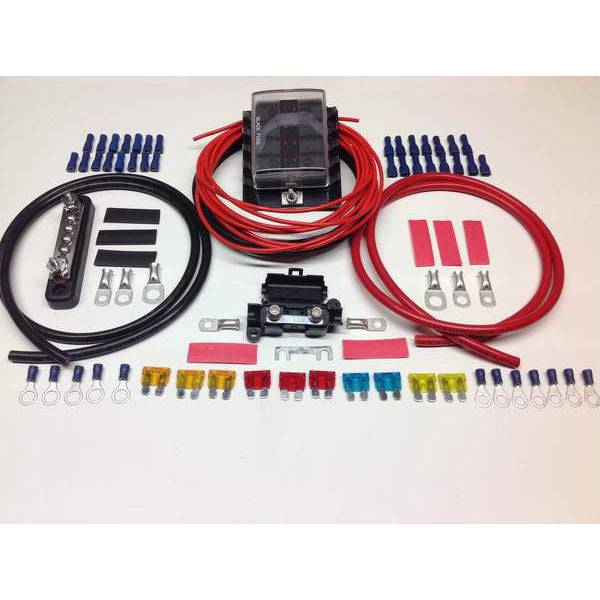

Parts List

1 x 10-way Bus Bar Fuse Box
1 x 100 amp multi point bus bar
1-5 mtrs10mm 70amp Red Cable
1-5 mtrs 10mm 70amp Black Cable
1 x strip link fuse holder + 2 x 60amp fuses
Terminal pack including spares + heat shrink
5mtrs 2.5mm 24amp Red Cable
5mtrs 2.5mm 24amp Black Cable
15 x 6.3mm Blue insulated female terminals
15 x 4.8mm Blue insulated female terminals
5 x 6mm blue insulated ring terminals
7 x 4mm blue insulated ring terminals
3 x 5amp, 3 x 10amp, 2 15amp, 2 x 20amp blade fuses
